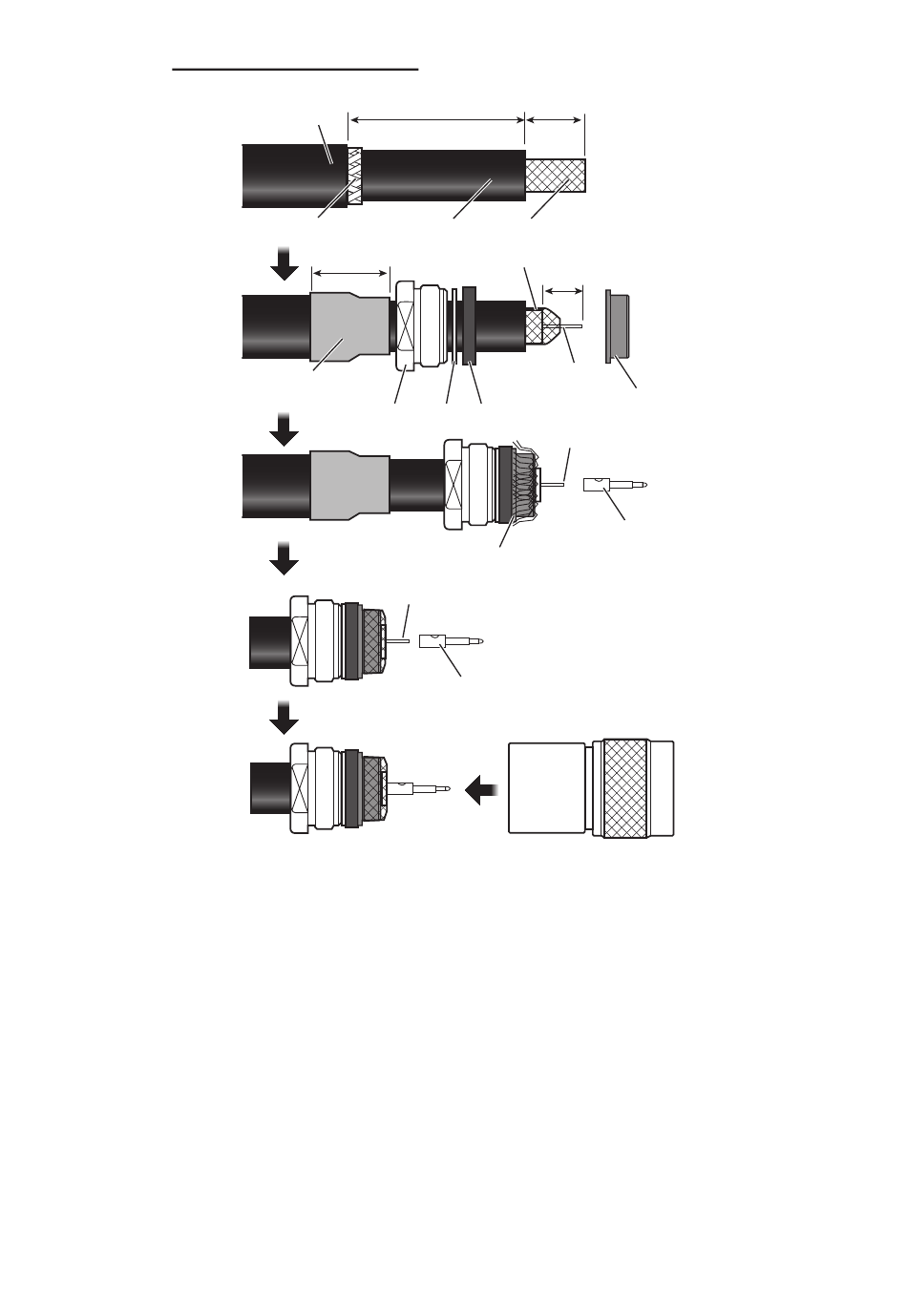

Connector type N-P-8DSFA
Outer sheath
Armor
30 30
Cover with heat-shrink
tube or vinyl tape.
50 50
Inner sheath Braided shield
Twist the shield and pass the clamp.
Nut Washer Gasket
Fold back the shield. Remove the
shield that hangs over the gasket.
Apply solder to core.
Center pin
(Soldering)
Set the shell to the cable
then turn the nut to tighten.
15 15
10 10
Core
Clamp
Core (Adjust
the length.)
Center pin
