Furuno DP-6 Operator's Manual

Furuno DP-6 Operator's Manual

Nbdp terminal
Hide thumbs Also See for DP-6:
Table of Contents

Advertisement

Quick Links

NBDP TERMINAL
DP-6
MODEL

Advertisement

Table of Contents
loading

Related Manuals for Furuno DP-6

Summary of Contents for Furuno DP-6

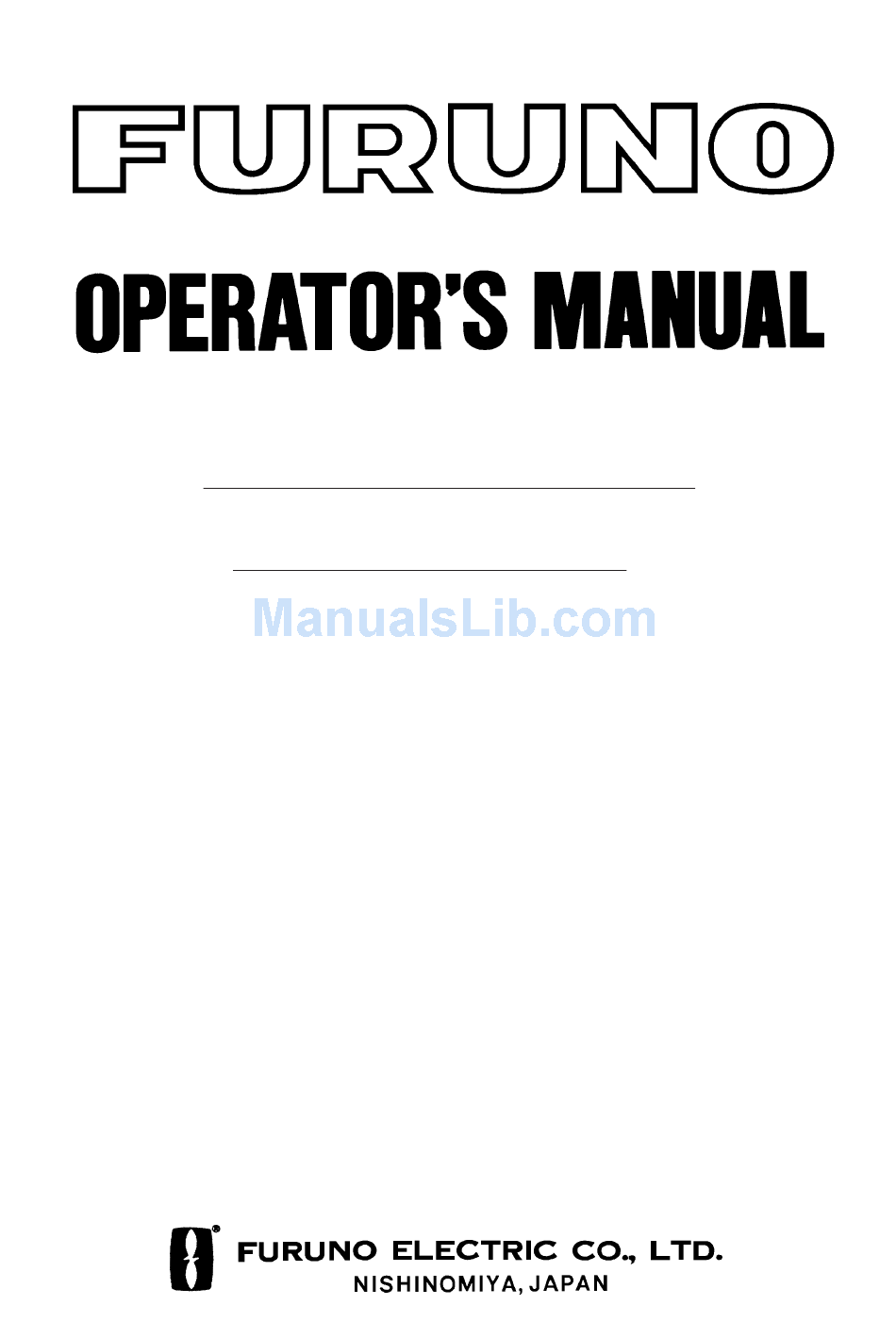

  • Page 1 NBDP TERMINAL DP-6 MODEL...
  • Page 2 9 - 5 2 , A s h i h a r a - c h o , N i s h i n o m i y a , J a p a n T e l e p h o n e : 0 7 9 8 - 6 5 - 2111 T e l e f a x : 0 7 9 8 - 6 5 - 4 2 0 0...

  • Page 5: Table Of Contents

    FOREWORD ... v 1. RADIOTELEX COMMUNICATION 1.1 General ... 1-1 1.2 Code Description ...1-1 1.3 ARQ Mode (A-Mode) ...1-2 1.4 FEC Mode (B-Mode) ...1-4 2. SYSTEM OVERVIEW 2.1 System Configuration ...2-1 2.2 Turning on the System ... 2-2 2.3 Equipment Description ... 2-2 2.4 Function Keys, Menu Operation ...2-4 3.
  • Page 6 5.6 FEC Mode Operation ...5-7 5.7 Communication Example ...5-8 5.8 Timer Operation ...5-11 5.9 Scanning ...5-12 5.10 Communication Buffer ...5-12 6. WINDOW MENU 6.1 Window Menu Description ...6-1 7. MARITEX OPERATION 7.1 What is MARITEX? ... 7-1 7.2 Preparations for Transmission ...7-2 7.3 Preparing Programs for Automatic Message Transmission ...7-8 7.4 Transmitting in MARITEX System ...7-17 8.

  • Page 7: Foreword

    Simply move the cursor to items on the screen that you want to select. The DP-6 provides a complete line of word processing facilities in its Text Editor, where you may create, edit and store multiple messages for later transmission.
  • Page 8 This page is intentionally left blank.

  • Page 9: Radiotelex Communication

    Recommendation M.625-3. The DP-6 employs a 7-element synchronous code providing 2 128 combinations. Among these 128 combinations, there are 35 constant-ratio combinations having a ratio of 3 (Y) mark bits to 4 (B) space bits.

  • Page 10: Arq Mode (A-Mode)

    1.3 ARQ Mode (A-Mode) Example: Identity Code XQKM Calling Block 1 Example: Identity Code PEARDBY Calling Block 1 Description The ARQ (Automatic Re-transmission request, or Automatic Re- quest for repetition) Mode allows private communications between any two stations using semi-duplex communication. Reception confirmation is done to assure that each character is received cor- rectly.
  • Page 11 not sending. This time is taken up by propagation time from the ISS to the IRS, 70 ms for the IRS to send its service information signal, and the return trip back to the ISS. The IRS listens between blocks and sends a control signal (CS1 or CS2) to request either the next block, or retransmission of the last block in the case of error.

  • Page 12: Fec Mode (B-Mode)

    1.4 FEC Mode (B-Mode) Description The FEC mode is for one-way, uninterrupted transmission of mes- sages, for example, weather forecasts and emergency bulletins, to no one particular station or stations. The sending station is known as the BSS (B-Mode Sending Station), the receiving station the BRS (B-Mode Receiving Station).

  • Page 13: System Overview

    2.1 System Configuration 24 VDC 24 VDC 24 VDC 2. SYSTEM OVERVIEW MAIN UNIT DP-6 TERMINAL UNIT IB-581 PRINTER PP-510 Figure 2-1 System configuration SSB RADIO- TELEPHONE NAV AID _____: Standard supply - - - - - -: Optional supply...

  • Page 14: Turning On The System

    2.2 Turning on the System 2.3 Equipment Description 1:File 2:Edit 3:Operate 4:Window 5:Station 6:System 7:WRU 8:HR 9:Over 10:Break Station Name Frequency (T/R) : Comm Status Connect Send Lock Error Sending Volume There is no particular order for turning on the units of the system. The figure below shows the location of power switches on the units of the system.

  • Page 15: Main Unit

    Keyboard unit is operated from the keyboard, and is almost 100% keyboard controlled. Operation is simplified by the use of menus which you access by pressing a function key, numbered F1-F10 at the top of the keyboard. The figure below shows the function menus and their corresponding function keys.

  • Page 16: Function Keys, Menu Operation

    2.4 Function Keys, Menu Operation The function keys at the top of the keyboard control most opera- tions of this unit through a menu system. Menu Conventions Inverse video As you move the cursor down through a menu, selected item ini- tially shown as white on black, inverses to black on white.
  • Page 17 Selecting menu items and options Menu items can be selected by pressing appropriate numeric key or selecting menu desired with the arrow keys and pressing the [Enter] key. Menu options can be selected by operating the [ ] keys. Press the [Enter] key to register selection and close the menu.
  • Page 18 Function key [F2]: Edit menu The Edit menu provides a full line of editing features. This menu is only operative while creating a message. Edit 1: Undo 2: Cut 3: Copy 4: Paste 5: Select All 6: Search 7: Replace 8: Goto Top 9: Goto Bottom 0: Goto Line...
  • Page 19 Selects a file (to transmit). Stops sending a file. Starts/stops frequency scanning. Selects communication mode for re- ception; AUTO/ARQ/FEC. Timer programming. age on a FURUNO radio. Sets Tx mode and subscriber's ID number in manual calling. Sets Tx and Rx frequencies in manual calling.
  • Page 20 Displays NMEA data: position, speed, Heading, water temperature and depth. Displays desired calendar month and year. Entering commands on this screen enables remote control of a FURUNO radio trans- ceiver and DSC terminal connected to Re- mote A and Remote B terminals.
  • Page 21 Function key [F5]: Station menu The Station menu provides for storage of stations, timer programs, channels, and various ID codes. 1: Station Entry 2: Timer Operation Entry 3: Scan Entry 4: User Channel Entry 5: Answerback Code Entry 6: Group ID Entry (4/5 digit) 7: Group ID Entry (9 digit) 8: Select ID Entry (4/5 digit) 9: Select ID Entry (9 digit)
  • Page 22 Mute Timing PostBK Sets the timing for the trailing edge of the mute signal in the ARQ mode. Modem Output Level Sets modem output level. MIF Tune Turn on to send antenna coupler tuning command. (Requires FURUNO Radio Equpment.) Lock Change Default...
  • Page 23 MIF Freeze Turn on to send "freeze" command to radio equipment connected. (Requires FURUNO radio equipment.) MIF AGC Turn on to automatically control gain in telex mode. (Requires radio equipment which supports AGC command in MIF format.) MIF Emission Turn on to automatically change mode at radio equipment to telex.
  • Page 24 Function key [F9]: OVER In the ARQ mode, changes the direction of traffic; the information receiving station becomes the information sending station, the in- formation sending station becomes the information receiving sta- tion. Function key [F10]: BREAK Disconnects the communications line. 2-12...

  • Page 25: Preparations For Transmission And Reception

    3.1 Registering Answerback Code & ID Codes 3. PREPARATIONS FOR This chapter provides the procedures necessary for preparing the DP-6 for transmitting and receiving. For automatic telex, you will need to register the following; • Your ship's ID and answerback codes •...
  • Page 26 3. For final verification of the data, the Caution shown in Figure 3-2 appears. If code is correct, press the [Enter] key again. Answerback Code Entry Answerback Code 123456789 FURU X Caution Confirm the 'CODE' before pressing ENTER key. You cannot change the CODE once it has been entered. Figure 3-2 Message for confirmation of code entered Registering ID Codes 1.

  • Page 27: Station List

    For example, station name FURUNO followed by -1, -2, -3, etc. for each frequency pair required. Registering Stations 1.
  • Page 28 [ ] or [ ] key followed by pressing the [Enter] key. Scanning Group List MARITEX-A MARITEX-B MARITEX-C FURUNO CHOUSHI MARITEX-F 9. Press the [Enter] key. The prompt OK/CANCEL asks for veri- fication of data. CREATE...

  • Page 29: Timer Programming

    3.3 Timer Programming 4. Do one of the following; Edit station: Use [ ], [ ] and the [Backspace] key to make corrections. Delete station: Erase station name with the [Backspace] key. 5. Press the [Enter] key twice. 6. Press the [Esc] key. A built-in timer allows you to automatically receive and transmit files.
  • Page 30 5. Press the [ ] key to advance the cursor to the Start Time line. Enter start time in 24-hour notation. To have the operation start at 8:35, for example, the keying sequence would be; [0] [8] [3] [5] [0] [0] 6.

  • Page 31: Scan Channel Groups

    3.4 Scan Channel Groups The DP-6 can automatically control radio equipment through chan- nel scanning. The radio equipment scans a number of channels (according to your selection), stopping when your own ID code is detected in an incoming signal. The transmitter is tuned to the cor- responding transmitter frequency, the communication link is es- tablished and the traffic is automatically exchanged.
  • Page 32 9. Enter other channel numbers and then press the [Enter] key. 10. Press the [Enter] key again to save the data. To register another scan group, repeat steps 2 – 9. Note: When the scan group memory is full the DP-6 displays "Scan group information full." Editing/Deleting Scan Channel Groups 1.

  • Page 33: User Channels

    3.5 User Channels 4. Do one of the following; Editing channels: Press the [Backspace] key to delete the chan- nel number and then enter new channel number. Adding channels: Enter channel number on a blank line. Deleting channels: Delete group name with the [Backspace] key.
  • Page 34 3-10 6. Press the [Enter] key. 7. Press the [Enter] key. Channel number entered appears in the Channel List. To register another user channel, repeat steps 2 – 7. Editing/Deleting User Channels 1. Press function key [F5] and then the [4] key. 2.

  • Page 35: File Operations

    Note: Do not use lower case letters, #, &, *, $ or % in telex mes- sages. Also, do not put “$$$” (three successive $s) in the middle of a Tx message, but at the end. The communication line is automati- cally disconnected when the DP-6 detects this string.

  • Page 36: Saving A File

    4.2 Saving a File Before you can save a file to a floppy disk, the disk must be for- matted. 2HD Type is only available. Formatting Floppy Disks 1. Press function key [F1]. 2. Press the [0] key to select "Floppy Disk Format". 3.

  • Page 37: Editing Files

    [ not want to cut, press the [ <[1]UNTITLED1> CONGULATULATION ON YOUR CHOICE OF DP-6 INMARSAT B MOBILE EARTH STATION. WE ARE CONFIDENT THAT YOU WILL ENJOY MANY YEARS OF OPERATION WITH THIS FINE PIECE OF EQUIPMENT Figure 4-4 The highlight 3.
  • Page 38 Pasting text To paste the cut text to a new location; 1. Place the cursor at the exact spot in the message where the cut text is to start. 2. Press function key [F2] and the [4] key. Copying and Pasting Text You may copy a portion of text and paste it elsewhere.
  • Page 39 1. Load the file to be copied from a floppy disk in working memory 2. Press function key [F2] and the [5] key. The entire file appears in inverse video. 3. Press function key [F2] and the [3] key. The file is placed in the paste buffer memory.

  • Page 40: Replacing Text

    Replacing Text The Replace feature helps you replace every occurrence of a word or phase with another word or phase in a file. 1. Press function key [F2] and the [7] key. The Replace display appears. Replace Search string : Replace with To quit: ESC Figure 4-7 Replace screen...

  • Page 41: Opening Files

    4.4 Opening Files Two working areas (called working area 1 and working area 2) are provided to which you can load a file, and one file may be dis- played on the LCD. FLOPPY DISK WORKING AREA (2) File File Figure 4-9 Working memories Opening a File 1.

  • Page 42: Renaming Files

    4.5 Renaming Files 4.6 Saving a File Under a New Name 4.7 Deleting Files To rename a file; 1. Press function key [F1]. 2. Press the [5] key. 3. Select file and press the [Enter] key. 4. Enter new name. 5.

  • Page 43: Real Time Printing

    4.8 Real Time Printing 4.9 Printing Files An incoming or outgoing message can be printed out while it is being received or transmitted. 1. Press function key [F1] to display the File menu. 2. Press the [6] key to turn real time printing on/off. PRINT appears in inverse video when real time printing is on.

  • Page 44: Communications Log

    4.10 Communications Log Load/Merge(TAB:Change) File Name LOG FILE TELEX NBDP DO-5 File Count : Date Time 12-13 14:17 14:19 FEC 12-13 14:19 14:20 FEC 12-13 14:20 14:23 FEC 4-10 Transmission/Reception date and time, ID, mode, Tx/Rx frequen- cies and station name are recorded for each message received or transmitted.

  • Page 45: Transmission, Reception

    5. TRANSMISSION, RECEPTION 5.1 Manual Calling This chapter shows you how to transmit and receive Telex mes- sages. Also included are the procedures for frequency scanning, and automatic operation. The simplest way to communicate with a Telex subscriber is Manual Calling.
  • Page 46 3. Input frequency pair. This can only be done with FURUNO transceivers. For other makes of transceiver, set a frequency pair at the trans- ceiver. Omit steps 1, 2 and 3. 4. Press the [Enter] key. 5. Press function key [F3] again and then the [9] key. The follow- ing screen appears.

  • Page 47: Calling A Station

    5.2 Calling a Station 1:File 2:Edit 3:Operate 4:Window 5:Station 6:System 7:WRU 8:HR 9:Over 10:Break Station Name CHOUSHI-8M Frequency (T/R) : 8765.00 / 8965.00(kHz) Comm Status Connect Sending Volume 100(%) 1. Press function key [F3] to display the Operate menu. Operate 1: Call Station 2: Macro Operation 3: File to Send...

  • Page 48: Transmitting A File From A Floppy Disk Or The Text Screen

    5.3 Transmitting a File from a Floppy Disk or the Text Screen You may send a file from a floppy disk or the Text Screen as fol- lows after calling a station. From a Floppy Disk 1. Press function key [F3] and then the [3] key. 2.

  • Page 49: Selecting Receive Mode

    Station List Sending Volume 100(%) ABC-4M ABC-6M ABC-12M ABC-8M FURUNO 1. Press function key [F3] and then the [6] key. 2. Select receive mode; AUTO: Automatic operation in ARQ and FEC ARQ: International radiotelex ARQ mode FEC: International radiotelex FEC mode 3.
  • Page 50 If the message "Station calling suspended. Check radio and interconnections. Press any key to escape." appears, check both radio's power and interconnections between the radio and the DP-6. 3. When an acknowledge signal is detected, "Connect" appears in inverse video on the communication status display (see next page).

  • Page 51: Fec Mode Operation

    1:File 2:Edit 3:Operate 4:Window 5:Station 6:System 7:WRU 8:HR 9:Over 10:Break Station Name CHOUSHI-8M Frequency (T/R) : 8765.00 / 8965.00(kHz) Comm Status Connect Sending Volume 100(%) 5.6 FEC Mode Operation 1996-11-15 14:28 Comm Mode :ARQ Send Lock Error ARQ Error : 0 ARQ Time : 0(sec) Figure 5-9 Communication status display Type a message from keyboard...

  • Page 52: Communication Example

    5.7 Communication Example 9VG SERADIO RS 12345 FURUNO X 54321 ABCDE J Exchange answerback codes 9VG SERADIO RS UGOX DE 9VG RGR GA X X PSE SUPPLY YOUR AAIC HW + ? OPR + Call operator. AAIC AA01 + ?
  • Page 53 TRY AGAIN OR USE 'OPR' GA + ? DIRTLEX07205644325 + MOM07205644325 + 5644325FURUNO J MSG + ? 12345 FURUNO J TO FURUNO THIS IS A TEST MESSAGE FROM ab cdefgh ijkl IN KOBE. 5644325FURUNO J + ? 54321 ABCD N KKKK...
  • Page 54 · · · s i l · · · · I l l r i f F " · · · " · t i v x i f l l a 5-10 Table of Abbreviations l l a · · ·...

  • Page 55: Timer Operation

    4. Select another operation (name) if desired. 5. Press the [Esc] key. When the predetermined time comes, the DP-6 automatically sends or receives messages. The results of timer operation are displayed as either OK or NG (No Good) on the Timer Operation List.

  • Page 56: Scanning

    5.9 Scanning 1:File 2:Edit 3:Operate 4:Window 5:Station 6:System 7:WRU 8:HR 9:Over 10:Break Station Name SAITO-1 Frequency (T/R) : 8344.00 / 8705.00(kHz) Comm Status Connect Send Lock Error Sending Volume 100(%) 5.10 Communication Buffer 5-12 Radio equipment scans a group of operator-selected frequencies (channels), and stops scanning when an incoming signal is received.

  • Page 57: Window Menu

    6.1 Window Menu Description 6. WINDOW MENU The Window menu allows you to display one of the following to- gether with the current screen: 1) Navigation data 2) Calendar 3) Remote controller screen (Remote A or Remote B) 4) Distress frequencies Window 1: Display NMEA Data 2: Calendar...
  • Page 58 Figure 6-3 Calendar Remote A, Remote B This menu permits remote control of a FURUNO transceiver, re- ceiver or transmitter connected to Remote A or Remote B termi- nal. Press function key [F4] and the [3] key (Remote A) or the [4] key (Remote B).

  • Page 59: Maritex Operation

    7.1 What is MARITEX? INTERNATIONAL TELEX NETWORK STORE-AND- FORWARD DIRECT DIALING MULTI- ADDRESS INTERNATIONAL TELEPHONE NETWORK SEMI-FAX 7. MARITEX OPERATION This chapter provides an overview to the MARITEX system. For detailed information, consult your MARITEX Traffic Manual. MARITEX, an acronym meaning MARItime TEleX, is a world- wide, round-the-clock, fully automatic and computerized network for maritime radiotelex.

  • Page 60: Preparations For Transmission

    The procedure for registering answerback code is the same as which appears on page 3-1. If an answerback code was registered before the commissioning of the MARITEX station a new answerback code must be entered. To enter new answerback code, contact FURUNO or authorized FURUNO agent or dealer.
  • Page 61 Registering Scan Groups The Central System emits a free-signal to indicate a MARITEX radio channel is in idle condition and available for ship-to-shore calls. The free-signal is detected and recognized by the shipboard equipment as a permission to start the transmission. Then, the ship- board operator initiates a call.
  • Page 62 6. Press the [ ] key to advance the cursor to Mode. Select the communication mode, AUTO, ARQ or FEC. 7. Press the [ ] key to advance the cursor to Auto Search. Turn Auto Search ON or OFF; Auto Search ON: Radio stops scanning when it finds the stron- gest (S/N ratio) free-signal frequency.
  • Page 63 MARITEX Coast Station Channel TX (kHz) 2423.5 2716.0 1905.0 4268.6 4009 4214.5 4014 4216.5 6460.0 6001 6314.5 6019 6323.0 8556.0 8007 8419.5 8024 8428.0 12818.0 12006 12582.0 12024 12591.0 17024.0 16014 16813.5 16064 16838.0 16057 16834.5 22607.3 22007 22379.5 22032 22392.0 8017 8424.5...
  • Page 64 Registering Stations The next step is to enter station name. The procedure is the same as the procedure shown on page 3-3. The station list provides ab- breviated dialing with storage for up to 50 stations. 1. Press function key [F5] and the [1] key. The Station Entry screen appears.
  • Page 65 8. Press the [ ] key to display the Scanning Group List. Scanning Group List MARITEX-A MARITEX-B MARITEX-C MARITEX-D MARITEX-E MARITEX-F Figure 7-5 Scanning group list (example) 9. Select scan group. 10. Press the [Enter] key. To enter another station name, repeat the above procedure from step 2.

  • Page 66: Preparing Programs For Automatic Message Transmission

    Commands The tables which follow describe the commands for automatic trans- mission. Table 7-2 describes the commands processed by the DP-6. Table 7-2 Commands processed by the DP-6 Content Calling station name and ID on assigned...
  • Page 67 After reception of GA+?, enter appropriate short-code command. Table 7-3 shows the commands processed by MARITEX stations. Table 7-3 MARITEX short-code commands Other MARITEX short-code commands are as below. Table 7-4 Other MARITEX short-code commands Note: For other supporting and facility commands, consult the MARITEX Traffic Manual.
  • Page 68 l l a s ' r . e l . t i 7-10 Store-and-Forward Telex The following is the sequence of events in transmission of Telex message in MARITEX. 1. Shipboard station sends message to MARITEX coast station. 2. MARITEX coast station stores message in memory buffer. 3.
  • Page 69 Preparing a macrofile for store-and-forward Telex You will need a macrofile to enable automatic message transmis- sion on store-and-forward Telex. After preparing it, save it to the hard disk or a floppy disk for future use. 1. Press function key [F1] to display the File menu. 2.
  • Page 70 7-12 5. Press the [5] key. The Save prompt appears on the display. close Text Saving File Name (Untitled 1) Figure 7-7 Save prompt 6. Press the [Enter] key and enter a file name as follows. OOOOOOOO.MCR File Name Extension Name (max.
  • Page 71 Macrofile for Direct Dialing The direct dialing features allows you to contact a land subscriber via MARITEX. Below is an example of a macrofile for direct dial- @FREE 15 @CALL S: MARITEX @WRU @CASE GA+? @SEND DIRTLX725644325+ @CASE MSG+? @SEND B:ABC @SEND NNNN @CASE GA+? @SEND BRK+...
  • Page 72 l l a s ' r e l i . t i 7-14 Procedure for direct dialing . l a . r e i s - . ) s l a i i t a i t a i t a...
  • Page 73 Macrofile for Multi Address The figure which follows shows an example of a macrofile for multi address use. @FREE 15 @CALL S: MARITEX @WRU @CASE GA+? @SEND MULTI+ @CASE num+? @SEND 725644325 @SEND 80255785 @SEND 5412345 @SEND 42124567 @CASE MSG+? @SEND B:ABC @SEND NNNN @CASE GA+?
  • Page 74 7-16 Macrofile for Semi-fax In the Semi-fax option, MARITEX converts ship-to-shore direc- tion telex message to facsimile and retransmits it via the telephone network. The figure below shows an example of a macrofile for Semi-fax. The macrofile for Semi-fax is the same as the macrofile for store- and-forward and direct dialing except for the FAX command.

  • Page 75: Transmitting In Maritex System

    7.4 Transmitting in MARITEX System This section describes how to transmit a Telex message in MARITEX. Basic Procedure 1. Register answerback code (Telex number assigned by MARITEX). 2. Register MARITEX frequency and channel to scan group. 3. Register station name including scan group name. 4.
  • Page 76 Filename MARITEX1.MCR MARITEX2.MCR File Count: 2 7-18 Actual Transmission 1. Press function key [F3] to display the Operate menu. Operate 1: Call Station 2: Macro Operation 3: File to Send 4: Cancel Sending 5: Scan (Start/Stop) 6: Manual Reception 7: Timer Operation 8: High Tension ON 9: Manual Calling 0: Set Frequency...

  • Page 77: Maintenance And Troubleshooting

    8.1 Maintenance 8. MAINTENANCE AND TROUBLESHOOTING WARNING Do not work inside the equipment unless totally familiar with electrical circuits. Hazardous voltage which can cause electrical shock, burn or serious injury exists inside the equipment. Regular maintenance is important for good performance. A regu- lar maintenance program should be established and should at least include the following: Cleaning the Equipment...

  • Page 78: Simple Troubleshooting

    8.2 Simple Troubleshooting 8.3 Diagnostic Tests Power Supply If the power cannot be applied (power lamp on the main unit does not light): • Check for loosened power cable connector on the rear or bot- tom of units. Check that the ship's mains main switch is turned on.
  • Page 79 4. Press the [Enter] key. The results of the self test are displayed a short time later. Self Test Terminal Unit Test : ver. 1.20 Main Unit Test : ver. 1.17 Modem Unit Test : ver. 1.18 Radio Unit Test : ID xxxx*1 DSC Unit Test : ID xxxx*1...
  • Page 80 1:File 2:Edit 3:Operate 4:Window 5:Station 6:System 7:WRU 8:HR 9:Over 10:Break Station Name Frequency (T/R) : Comm Status Connect Send Lock Error Now Testing Tone Test 1 (All Char). ABCDEFGHIJKLMNOPQRSTUVWXYZ1234567890-?:().,’=/+abcdefghijklmnopqrstuv wxyz ABCDEFGHIJKLMNOPQRSTUVWXYZ1234567890-?:().,’=/+abcdefghijklmnopqrstuv wxyz ABCDEFGHIJKLMNOPQRSTUVWXYZ 1996-11-15 13:26:45.45 Setup (kHz) Comm Mode : Auto Mark Figure 8-4 All characters test screen Tone test 2 (Fox)

  • Page 81: Itu Telex Channels/Frequency List

    APPENDIX 1 ITU TELEX CHANNELS/ FREQUENCY LIST AP1-1...
  • Page 82 AP1-2...
  • Page 83 AP1-3...
  • Page 84 AP1-4...

  • Page 85: International Telex Abbreviations

    APPENDIX 2 INTERNATIONAL TELEX ABBREVIATIONS . f f r i f l l o a l i s t i s ' r e l l l l a r r r t i s AP2-1...
  • Page 86 This page is intentionally left blank.

  • Page 87: Digital Interface (Iec 61162-1 Edition 2)

    APPENDIX 3 Digital Interface Input sentences GLL, RMA, RMC Schematic diagram IEC1162 (NMEA) CHASSIS RD-A RD-B Load requirements as listner Isolation Input impedance Max. Voltage Threshold (IEC 61162-1 Edition 2) 05P0653 P609 470 CR1 1000p 1SS133 Optocoupler 470 ohms 4 mA +12V TLP121-GB 4.7k 4.7k...
  • Page 88 GLL - Geographic position - latitude and longitude AP3-2...
  • Page 89 RMA - Recommended minimum navigation information - Loran C data AP3-3...
  • Page 90 RMC - Recommended minimum specific GPS/ TRANSIT data AP3-4...

  • Page 91: Specifications

    SPECIFICATIONS OF NBDP TERMINAL DP-6 1. COMMUNICATIONS (1) Communication Mode (2) Communication Protocol (3) ID Code (4) Line Code (5) Modulation (6) Tone Frequency (mark/space) (7) Tone Frequency Tracking Range (8) Line Input/Output 2. COMMUNICATION FEATURES 3. TERMINAL UNIT (IB-581)
  • Page 92 5. ENVIRONMENTAL CONDITIONS (1) Temperature (2) Relative Humidity 6. POWER SUPPLY (1) Main Unit: (2) Terminal Unit: 7. COATING COLOR (1) Main Unit: (2) Terminal Unit 8. PRINTER (PP-510) (3) Printing Paper (4) Power Supply (5) Environmental Condition Ambient Temperature Relative Humidity -15ºC to +55 ºC 93% (at 40 ºC)
