EVOLUTION ELECTRIC STEAMER
INSTALLATION & OPERATOR MANUAL
IMPORTANT WARRANTY INFORMATION
WARRANTY REGISTRATION - STARTUP FORM INSIDE THIS MANUAL MUST BE REMOVED,
COMPLETED, SIGNED BY CUSTOMER AND A COPY EMAILED, FAXED OR MAILED BACK TO
ACTIVATE THE LIMITED WARRANTY.
These installation instructions have been prepared for qualified electric
equipment installation personnel, who should perform the installation, initial
field start-up and complete the equipment adjustments described in this
manual.
Connected Model

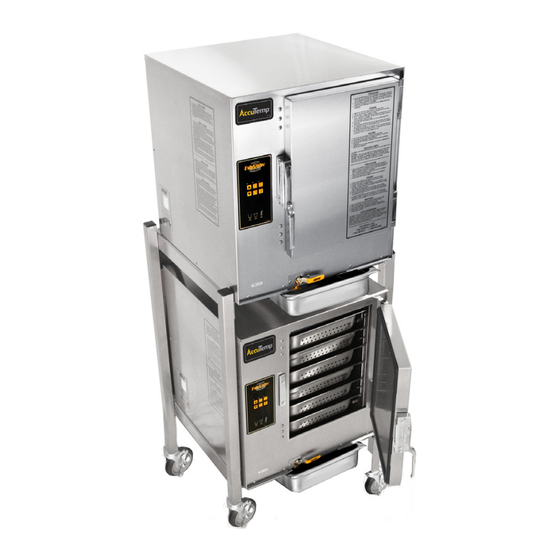

Connection-less Model Double Stack
Drain pans are customer supplied
Advertisement
Table of Contents
Related Manuals for AccuTemp EVOLUTION Series
Summary of Contents for AccuTemp EVOLUTION Series
- Page 1 EVOLUTION ELECTRIC STEAMER INSTALLATION & OPERATOR MANUAL Connection-less Model Double Stack Connected Model Drain pans are customer supplied IMPORTANT WARRANTY INFORMATION WARRANTY REGISTRATION - STARTUP FORM INSIDE THIS MANUAL MUST BE REMOVED, COMPLETED, SIGNED BY CUSTOMER AND A COPY EMAILED, FAXED OR MAILED BACK TO ACTIVATE THE LIMITED WARRANTY.
-
Page 2: Table Of Contents
Installation Manual I Installation TABLE OF CONTENTS SAFETY WARNINGS INFORMATION PAGE 2 START UP FORM PAGE 3 GENERAL INFORMATION PAGE 5 INSTALLATION PAGE 7 OPERATION - USE PAGE 14 OPERATION - CLEANING PAGE 18 TROUBLESHOOTING PAGE 21 SERVICE PAGE 22 PREVENTATIVE MAINTENANCE CHECKLIST PAGE 23 WARRANTY... -
Page 3: Safety Warnings Information
Installation Manual I General Information IMPORTANT FOR YOUR SAFETY The safety instructions listed below on this page should be posted in a prominent location as a reminder of safe practices as well as recommended actions to follow in the event of an equipment or facility utility issue. WARNING In the event of a power failure, do not attempt to operate this appliance. -
Page 4: Start Up Form
Additional Info: • AccuTemp Products, Inc. is not responsible for the installation, nor does it recommend modifications to the electrical supply sources, Any in-field modifications made without written authorization from AccuTemp Products, Inc. will void all written and oral warranties. - Page 5 (Tick Box) I accept this Start-up form as complete and accurate: Signed: Restaurant Management Date: Print Name: ACCUTEMP PRODUCTS INC. 4815 N CLINTON PARK DR - FORT WAYNE - IN - 46825 TELEPHONE: 800-480-0415, SERVICE@ACCUTEMP.NET PRINTED IN USA MP4010-1903...
-
Page 6: General Information
Chef expert advisory service. • • changed, will result in minor or moderate injury We hope that you enjoy working with AccuTemp equipment and that you always have many satisfied guests. NOTE Advises reader of information or instructions vital to the... - Page 7 Installation Manual I General Information 2. EQUIPMENT DATA PLATE 2.1 Labeling Model: A B CCC D E FFF G H I J K Where: A is the base model E = Electric B is the size of the unit: 6 pan CCC is the supply Voltage D is the number of phases: 1 or 3 E is the control series D=Manual Fill, E=Autofill...
-
Page 8: Installation
3.5 Stand Installation If an AccuTemp Evolution Steamer Stand is used ensure the floor When moving the equipment manually make sure there are is level and place the two locking casters to the “ON” position. - Page 9 Installation Manual I Installation 3.5.2 Double Stand Installation Instructions FIGURE 3: MANUAL FILL UNIT ON SINGLE STAND The AccuTemp double stand can be equipped with adjustable height feet or can be equipped with non-adjustable casters and accommodates (2) E6 model Evolutions (FIGURE 4).
- Page 10 Installation Manual I Installation 3.6 Steamer Connections The Evolution Electric Steamer is available in a connected and FIGURE 6: MANUAL FILL UNIT ON SINGLE STAND connection-less models. Both the connection-less and connected model will require a an electrical connection. CONNECTED UNITS: The connected model in addition to the electrical connection will require a water connection and access to a floor drain or sink to route a drain hose (not supplied) to allow condensate to...
- Page 11 The electrical voltage requirement is listed on the data plate that is located on the lower left side panel. All AccuTemp Evolution Electric Steamers are supplied with a power cord and plug that must be connected to the specified receptacle, see below for reference.
- Page 12 The installation requires a check valve (or other approved anti-back flow/ anti-siphon device) in all supply lines in accor- dance with and as required by local, state and national health, sanitation and plumbing codes. AccuTemp does NOT provide a check valve with the steamer. •...
- Page 13 Installation Manual I Installation 3.10 Ventilation Extension Sloping Upward (FIGURE 12) Use nominal ¾” copper, brass or stainless steel to prevent DO NOT connect Drain or Vent lines on multiple flow restrictions. Larger inside diameter (ID) can be used also appliances.
- Page 14 Installation Manual I Installation Rotate factory Extension Sloping Downwards (FIGURE 13) FIGURE 13 - USING RIGID elbow to point PIPING downwards Use nominal ¾” or larger inside diameter (ID) to prevent 6” - 12” Long - 3/4” Diameter flow restrictions. brass pipe (both ends threaded male) Pipe should slope downwards from the steamer vent...
-
Page 15: Operation - Use
DRAIN VALVE DRAIN PAN - CUSTOMER SUPPLIED 4.1 Operation Introduction The AccuTemp Evolution steamer uses the time proven method of cooking with steam. Once the cooking time expires, the steamer can be set to the “Hold Mode”. In this mode, the controller regulates the internal temperature. - Page 16 Installation Manual I Operation FIGURE 17 OPERATOR DISPLAY SET TIMER INCREASE COOK or HOLD VARIABLE DECREASE DISPLAY VARIABLE TEMPERATURE ON/OFF OVER- TEMPERATURE LAMP HIGH WATER LAMP LOW WATER LAMP MP4010-1903...
- Page 17 The hold temperature can be changed to a single value for temperatures ranging from 150°F to 190°F if required. Contact the AccuTemp Technical Service Department for assistance at 800.480.0415. Hold can also be used during downtimes to save energy and water while keeping the steamer preheated.
- Page 18 150° F to 190° F if FIGURE 19 required. Contact the AccuTemp Technical Service Department for assistance at 800.480.0415. Hold can also be used during downtimes to save energy and water while keeping the steamer preheated.
-
Page 19: Operation - Cleaning
140°F or lower. Then open the drain valve If local water conditions cause rust inside the steamer or and allow the water in the cooking chamber to drain heavy mineral buildup, request the AccuTemp Additional completely. Cleaning Recommendations. - Page 20 Installation Manual I Operation 4.7.3 Weekly Cleaning - Connected FIGURE 20 Close the drain valve and add 1 cup (8 ounces or 0.24 liters) of white vinegar to the cooking compartment. Start the steamer in the Cook Mode. The cooking compartment will automatically fill with water.
- Page 21 Installation Manual I Operation 4.7.5 How to to Protect Stainless Steel To protect the equipment, we would recommend the following All materials used in manufacturing AccuTemp products undergo steps: multiple thorough quality inspections, as does the production process itself. For producing the internal parts of the appliance, Use the proper tools.
-
Page 22: Troubleshooting
When the steamer automatically refills the fresh water, the temperature of the steamer will drop. The steamer should reheat quickly. • If -99F or -1F appears call AccuTemp for assistance. • If frozen product is added the temperature will take time to recover. -
Page 23: Service
Conventional Steamers require scheduled maintenance (such as boiler maintenance) at frequent intervals) The Evolution design doesn’t require this type of scheduled maintenance. It is recommended that you schedule a yearly review of the Evolution with a AccuTemp Authorized Service Representative to keep your steamer in optimal operation INFORMATION... -
Page 24: Preventative Maintenance Checklist
Installation Manual I Service and Troubleshooting PREVENTATIVE MAINTENANCE Note: Accutemp approved service providers should complete any tasks involving access to electrical systems. PM TASK DECRIPTION DAILY ANNUAL Verify that the Steamer is level. Verify the operation of the control panel. When a button is pressed the display should register the input and a beep should sound. -
Page 25: Warranty
In no event shall AccuTemp be liable for special, incidental, or consequential damages, or damages in the nature of penalties. - Page 27 IMPORTANT SERVICE INFORMATION AccuTemp Product, Inc. Technical & Customer Support Technician is available Monday thru Sunday, 7:00am to 7:00pm EST. 800.480.0415 or 260.469.3040 • Phone - 800.480.0415 or 260.469.3040 • Email - service@accutemp.net • Web site - www.accutemp.net...
