AccuTemp EVOLUTION E62081E060 Installation & Operator's Manual

Hide thumbs Also See for EVOLUTION E62081E060:
Table of Contents

Advertisement

Quick Links

Download this manual

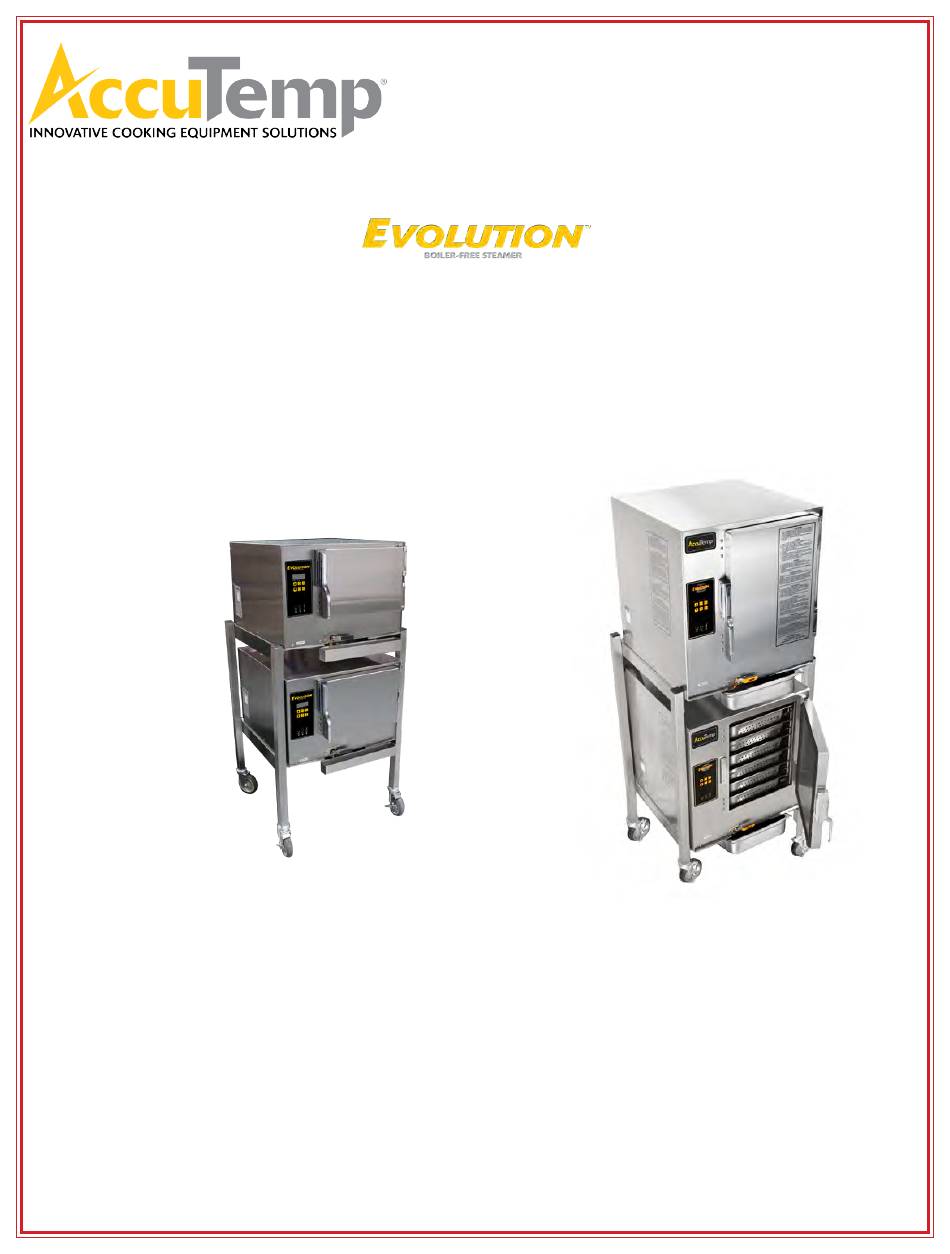

EVOLUTION ELECTRIC STEAMER
INSTALLATION & OPERATOR MANUAL
IMPORTANT WARRANTY INFORMATION
WARRANTY REGISTRATION - STARTUP FORM INSIDE THIS MANUAL MUST BE REMOVED,
COMPLETED, SIGNED BY CUSTOMER AND A COPY EMAILED, FAXED OR MAILED BACK TO
ACTIVATE THE LIMITED WARRANTY.
These installation instructions have been prepared for qualified electric
equipment installation personnel, who should perform the installation, initial
field start-up and complete the equipment adjustments described in this
manual.
ALL 3 & 6 PAN MODELS
Double stack 3 pan units
Double stack 6 pan units
Drain pans are customer supplied

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOLUTION E62081E060 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuTemp EVOLUTION E62081E060

Summary of Contents for AccuTemp EVOLUTION E62081E060

  • Page 1 EVOLUTION ELECTRIC STEAMER INSTALLATION & OPERATOR MANUAL ALL 3 & 6 PAN MODELS Double stack 6 pan units Drain pans are customer supplied Double stack 3 pan units IMPORTANT WARRANTY INFORMATION WARRANTY REGISTRATION - STARTUP FORM INSIDE THIS MANUAL MUST BE REMOVED, COMPLETED, SIGNED BY CUSTOMER AND A COPY EMAILED, FAXED OR MAILED BACK TO ACTIVATE THE LIMITED WARRANTY.

  • Page 2: Document History

    Installation Manual I Installation TABLE OF CONTENTS SAFETY WARNINGS INFORMATION PAGE 2 START UP FORM PAGE 3 GENERAL INFORMATION PAGE 7 INSTALLATION PAGE 9 OPERATION - USE PAGE 17 TROUBLESHOOTING PAGE 24 WARRANTY PAGE 27 DOCUMENT HISTORY REVISION DATE PRIOR DATE CHANGE REVISION...

  • Page 3: Important For Your Safety

    Installation Manual I General Information IMPORTANT FOR YOUR SAFETY The safety instructions listed below on this page should be posted in a prominent location as a reminder of safe practices as well as recommended actions to follow in the event of an equipment or facility utility issue. WARNING In the event of a power failure, do not attempt to operate this appliance.
  • Page 4 Installation Manual I General Information MP4053-2006...
  • Page 5 Additional Info: • AccuTemp Products, Inc. is not responsible for the installation, nor does it recommend modifications to the electrical supply sources, Any in-field modifications made without written authorization from AccuTemp Products, Inc. will void all written and oral warranties.
  • Page 6 (Tick Box) I accept this Start-up form as complete and accurate: Signed: Restaurant Management Date: Print Name: ACCUTEMP PRODUCTS INC. 4815 N CLINTON PARK DR - FORT WAYNE - IN - 46825 TELEPHONE: 800-480-0415, SERVICE@ACCUTEMP.NET PRINTED IN USA MP4053-2006...
  • Page 7 MP4053-2006...

  • Page 8: General Information

    Chef expert advisory service. • changed, will result in minor or moderate injury We hope that you enjoy working with AccuTemp equipment and that you always have many satisfied guests. NOTE Advises reader of information or instructions vital to the...
  • Page 9 Installation Manual I General Information 2. EQUIPMENT DATA PLATE 2.1 Labeling Model: A B CCC D E FFF G H I J K Where: A is the base model E = Electric B is the size of the unit: 3/6 pan CCC is the supply Voltage D is the number of phases: 1 or 3 E is the control series D=Manual Fill, E=Autofill...

  • Page 10: Installation

    3.5 Stand Installation If an AccuTemp Evolution Steamer Stand is used ensure the floor When moving the equipment manually make sure there are is level and place the two locking casters to the “ON” position.
  • Page 11 Installation Manual I Installation 3.5.2 Double Stand Installation Instructions 3.5.4 Flush Mount Installation The AccuTemp double stand can be equipped with adjustable To Flush mount the appliance to a counter, follow these steps: height feet or can be equipped with non-adjustable casters and Drill 4 holes as seen in FIGURE 3.B.
  • Page 12 Installation Manual I Installation FIGURE 3.C: MANUAL FILL UNIT ON SINGLE STAND FIGURE 3.E: E3 & E6 AUTOFILL UNITS ON A DOUBLE STAND FIGURE 3.F: E3 AUTOFILL UNITS ON A DOUBLE STAND FIGURE 3.D: MANUAL UNITS ON A DOUBLE STAND MP4053-2006...
  • Page 13 Installation Manual I Installation 3.6 Steamer Connections The Evolution Electric Steamer is available in a connected and FIGURE 3.G: MANUAL FILL UNIT ON SINGLE STAND connection-less models. Both the connection-less and connected model will require a an electrical connection. CONNECTED UNITS: The connected model in addition to the electrical connection will require a water connection and access to a floor drain or sink to route a drain hose (not supplied) to allow condensate to...
  • Page 14 The electrical voltage requirement is listed on the data plate that is located on the lower left side panel. All AccuTemp Evolution Electric Steamers are supplied with a power cord and plug that must be connected to the specified receptacle, see below for reference.
  • Page 15 The installation requires a check valve (or other approved anti-back flow/ anti-siphon device) in all supply lines in accor- dance with and as required by local, state and national health, sanitation and plumbing codes. AccuTemp does NOT provide a check valve with the steamer. •...
  • Page 16 Installation Manual I Installation 3.10 Ventilation Extension Sloping Upward (FIGURE 3.J) Use nominal ¾” copper, brass or stainless steel to prevent DO NOT connect Drain or Vent lines on multiple flow restrictions. Larger inside diameter (ID) can be used also appliances.
  • Page 17 Installation Manual I Installation Rotate factory Extension Sloping Downwards (FIGURE 3.K) FIGURE 3.K - USING elbow to point RIGID PIPING downwards Use nominal ¾” or larger inside diameter (ID) to prevent 6” - 12” Long - 3/4” Diameter flow restrictions. brass pipe (both ends threaded male) Pipe should slope downwards from the steamer vent...

  • Page 18: Operation

    DRAIN VALVE DRAIN PAN - CUSTOMER SUPPLIED 4.1 Operation Introduction The AccuTemp Evolution steamer uses the time proven method of cooking with steam. Once the cooking time expires, the steamer can be set to the “Hold Mode”. In this mode, the controller regulates the internal temperature.
  • Page 19 Installation Manual I Operation FIGURE 4.B OPERATOR DISPLAY SET TIMER INCREASE COOK or HOLD VARIABLE DECREASE DISPLAY VARIABLE TEMPERATURE ON/OFF OVER- TEMPERATURE LAMP HIGH WATER LAMP LOW WATER LAMP MP4053-2006...
  • Page 20 The hold temperature can be changed to a single value for temperatures ranging from 150°F to 190°F if required. Contact the AccuTemp Technical Service Department for assistance at 800.480.0415. Hold can also be used during downtimes to save energy and water while keeping the steamer preheated.
  • Page 21 150° F to 190° F if FIGURE 4.D required. Contact the AccuTemp Technical Service Department for assistance at 800.480.0415. Hold can also be used during downtimes to save energy and water while keeping the steamer preheated.
  • Page 22 If local water conditions cause rust inside the steamer or completely. heavy mineral buildup, request the AccuTemp Additional Cleaning Recommendations. Turn the steamer off and wait for the steamer to cool.
  • Page 23 Installation Manual I Operation 4.7.3 Weekly Cleaning - Connected FIGURE 4.E Close the drain valve and add 1 cup (8 ounces or 0.24 liters) of white vinegar to the cooking compartment. Start the steamer in the Cook Mode. The cooking compartment will automatically fill with water.
  • Page 24 Installation Manual I Operation 4.7.5 How to to Protect Stainless Steel To protect the equipment, we would recommend the following All materials used in manufacturing AccuTemp products undergo steps: multiple thorough quality inspections, as does the production process itself. For producing the internal parts of the appliance, Use the proper tools.

  • Page 25: Troubleshooting

    When the steamer automatically refills the fresh water, the temperature of the steamer will drop. The steamer should reheat quickly. • If -99F or -1F appears call AccuTemp for assistance. • If frozen product is added the temperature will take time to recover.

  • Page 26: General Service Information

    Conventional Steamers require scheduled maintenance (such as boiler maintenance) at frequent intervals) The Evolution design doesn’t require this type of scheduled maintenance. It is recommended that you schedule a yearly review of the Evolution with a AccuTemp Authorized Service Representative to keep your steamer in optimal operation INFORMATION...

  • Page 27: Preventative Maintenance

    Installation Manual I Service and Troubleshooting PREVENTATIVE MAINTENANCE Note: Accutemp approved service providers should complete any tasks involving access to electrical systems. PM TASK DECRIPTION DAILY ANNUAL Verify that the Steamer is level. Verify the operation of the control panel. When a button is pressed the display should register the input and a beep should sound.

  • Page 28: Limited Warranty

    In no event shall AccuTemp be liable for special, incidental, or consequential damages, or damages in the nature of penalties.
  • Page 30 IMPORTANT SERVICE INFORMATION AccuTemp Product, Inc. Technical & Customer Support Technician is available Monday thru Sunday, 7:00am to 7:00pm EST. 800.480.0415 or 260.469.3040 • Phone - 800.480.0415 or 260.469.3040 • Email - service@accutemp.net • Web site - www.accutemp.net...

This manual is also suitable for:

Evolution e62083e100Evolution e62083e150Evolution e62301e070Evolution e62401e060Evolution e62403e110Evolution e62403e130 ... Show all
