EVOLUTION ELECTRIC 3 & 6 PAN STEAMER
INSTALLATION & OPERATOR MANUAL
IMPORTANT WARRANTY INFORMATION
WARRANTY REGISTRATION - STARTUP FORM INSIDE THIS MANUAL MUST BE REMOVED,
COMPLETED, SIGNED BY CUSTOMER AND A COPY EMAILED, FAXED OR MAILED BACK TO
ACTIVATE THE LIMITED WARRANTY.
These installation instructions have been prepared for qualified electric
equipment installation personnel, who should perform the installation, initial
field start-up and complete the equipment adjustments described in this
manual.

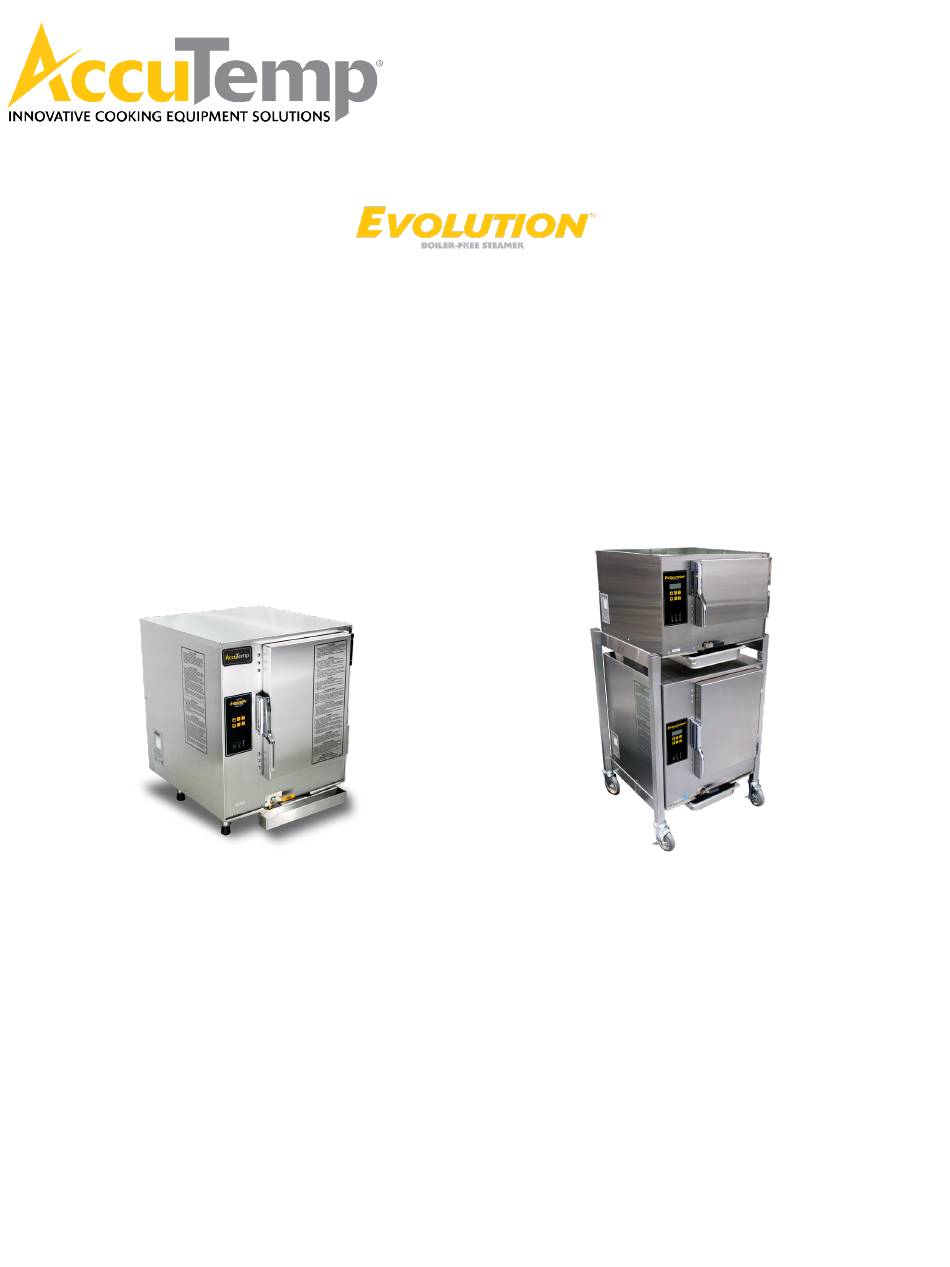

Connected Model
AccuTemp Products INC
11919 John Adams Dr, New Haven, IN 46774
www.accutemp.net
Connection-less Model Double Stack
Drain pans are customer supplied
Advertisement
Table of Contents
Related Manuals for AccuTemp Evolution E62081D060
Summary of Contents for AccuTemp Evolution E62081D060
- Page 1 These installation instructions have been prepared for qualified electric equipment installation personnel, who should perform the installation, initial field start-up and complete the equipment adjustments described in this manual. AccuTemp Products INC 11919 John Adams Dr, New Haven, IN 46774 www.accutemp.net...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS INFORMATION PAGE 2 START UP FORM PAGE 3 GENERAL INFORMATION PAGE 5 INSTALLATION PAGE 7 OPERATION - USE PAGE 14 OPERATION - CLEANING PAGE 19 TROUBLESHOOTING PAGE 21 SERVICE PAGE 22 PREVENTATIVE MAINTENANCE CHECKLIST PAGE 23 WARRANTY PAGE 24 DOCUMENT HISTORY... -
Page 3: Important For Your Safety
IMPORTANT FOR YOUR SAFETY The safety instructions listed below on this page should be posted in a prominent location as a reminder of safe practices as well as recommended actions to follow in the event of an equipment or facility utility issue. WARNING In the event of a power failure, do not attempt to operate this appliance. -
Page 4: Start Up Form
Additional Info: • AccuTemp Products, Inc. is not responsible for the installation, nor does it recommend modifications to the electrical supply sources, Any in-field modifications made without written authorization from AccuTemp Products, Inc. will void all written and oral warranties. - Page 5 22. Take photographs of install, including: Front of steamer, Side view of steamer, hook up and supply. (Tick Box) I accept this Start-up form as complete and accurate: Signed: Restaurant Management Date: Print Name: AccuTemp Products, Inc. 11919 John Adams Dr, Fort Wayne IN 46774 PHONE: 800.480.0415, service@accutemp.net PRINTED IN USA MP4008-2411...
-
Page 6: General Information
Chef expert advisory service. • changed, will result in minor or moderate injury We hope that you enjoy working with AccuTemp equipment and that you always have many satisfied guests. NOTE Advises reader of information or instructions vital to the... - Page 7 2. EQUIPMENT DATA PLATE 2.1 Labeling Model: A B CCC D E FFF G H I J K Where: A is the base model E = Electric B is the size of the unit: 6 pan CCC is the supply Voltage D is the number of phases: 1 or 3 E is the control series D=Manual Fill, E=Autofill F is the energy input...
-
Page 8: Installation
3.5 Stand Installation When moving the equipment manually make sure there are If an AccuTemp Evolution Steamer Stand is used ensure the floor enough people for the task as the equipment is heavy. is level and place the two locking casters to the “ON” position. - Page 9 the brakes on the two front locking casters, pressing on the FIGURE 3: MANUAL FILL UNIT ON SINGLE STAND “ON” handle of the brake mechanism. Always mount the first EVOLUTION on the bottom of the stand. To mount the bottom steamer, carefully lift and place it on the horizontal mounting brackets, ensuring that the (4) mounting holes on the underside of the Evolution are lined up with the mounting holes on the brackets.
-
Page 10: Drain Pan
3.6 Steamer Connections The Evolution Electric Steamer is available in a connected and FIGURE 6: MANUAL FILL UNIT ON SINGLE STAND connection-less models. Both the connection-less and connected model will require a an electrical connection. CONNECTED UNITS: The connected model in addition to the electrical connection will require a water connection and access to a floor drain or sink to route a drain hose (not supplied) to allow condensate to be removed and to drain the steamer when required. - Page 11 The electrical voltage requirement is listed on the data plate that is located on the lower left side panel. All AccuTemp Evolution Electric Steamers are supplied with a power cord and plug that must be connected to the specified receptacle, see below for reference.
- Page 12 The installation requires a check valve (or other approved anti-back flow/ anti-siphon device) in all supply lines in accor- dance with and as required by local, state and national health, sanitation and plumbing codes. AccuTemp does NOT provide a check valve with the steamer. •...
- Page 13 3.10 Ventilation Extension Sloping Upward (FIGURE 12) Use nominal ¾” copper, brass or stainless steel to prevent DO NOT connect Drain or Vent lines on multiple flow restrictions. Larger inside diameter (ID) can be used also appliances. Each appliance should have its own dedicated drain and vent.
- Page 14 Rotate factory Extension Sloping Downwards (FIGURE 13) FIGURE 13 - USING RIGID elbow to point PIPING downwards Use nominal ¾” or larger inside diameter (ID) to prevent 6” - 12” Long - 3/4” Diameter flow restrictions. brass pipe (both ends threaded male) Pipe should slope downwards from the steamer vent to a floor drain to allow water condensing in it to run...
-
Page 15: Operation - Use
4. OPERATION 4.1 Operation Introduction The AccuTemp Evolution steamer uses the time proven method of cooking with steam. Once the cooking time expires, the RISKS RESULTING FROM CONTACT WITH VERY HOT steamer can be set to the “Hold Mode”. In this mode, the OBJECT: controller regulates the internal temperature. -
Page 16: Operator Display
FIGURE 17 OPERATOR DISPLAY SET TIMER INCREASE COOK or HOLD VARIABLE DECREASE DISPLAY VARIABLE TEMPERATURE ON/OFF OVER- TEMPERATURE LAMP HIGH WATER LAMP LOW WATER LAMP MP4008-2411... -
Page 17: Reset To Default
4.3 Control Program Mode To enter Program Mode for the controller function parameters, turn the unit OFF then depress and hold the DOWN arrow and DSPLY TEMP keys for a minimum of 5 seconds. The control is now in Program Mode and LED1,2 and 3 will blink, and the keypad will be reconfigured as shown in the following table: Program # Program Title... - Page 18 The hold temperature can be changed to a single value for temperatures ranging from 150°F to 190°F if required. Contact the AccuTemp Technical Service Department for assistance at 800.480.0415. Hold can also be used during downtimes to save energy and water while keeping the steamer preheated.
- Page 19 150° F to 190° F if FIGURE 19 required. Contact the AccuTemp Technical Service Department for assistance at 800.480.0415. Hold can also be used during downtimes to save energy and water while keeping the steamer preheated.
-
Page 20: Operation - Cleaning
Shut the door. If local water conditions cause rust inside the steamer or After 15 minutes, turn the steamer off. Open the drain valve heavy mineral buildup, request the AccuTemp Additional and allow the cooking compartment to drain completely. Cleaning Recommendations. - Page 21 4.8.3 How to to Protect Stainless Steel To protect the equipment, we would recommend the following All materials used in manufacturing AccuTemp products undergo steps: multiple thorough quality inspections, as does the production process itself. For producing the internal parts of the appliance, Use the proper tools.
-
Page 22: Troubleshooting
When the steamer automatically refills the fresh water, the temperature of the steamer will drop. The steamer should reheat quickly. • If -99F or -1F appears call AccuTemp for assistance. • If frozen product is added the temperature will take time to recover. -
Page 23: Service
Conventional Steamers require scheduled maintenance (such as boiler maintenance) at frequent intervals) The Evolution design doesn’t require this type of scheduled maintenance. It is recommended that you schedule a yearly review of the Evolution with a AccuTemp Authorized Service Representative to keep your steamer in optimal operation INFORMATION... -
Page 24: Preventative Maintenance Checklist
PREVENTATIVE MAINTENANCE Note: Accutemp approved service providers should complete any tasks involving access to electrical systems. PM TASK DECRIPTION DAILY ANNUAL Verify that the Steamer is level. Verify the operation of the control panel. When a button is pressed the display should register the input and a beep should sound. -
Page 25: Warranty
In no event shall AccuTemp be liable for special, incidental, or consequential damages, or damages in the nature of penalties. - Page 26 MP4008-2411...
- Page 27 AccuTemp product may be covered by one or more US Patents. See www.accutempip.net IMPORTANT SERVICE INFORMATION AccuTemp Product, Inc. Technical & Customer Support Technician is available Monday thru Sunday, 7:00am to 7:00pm EST. 800.480.0415 or 260.469.3040 • Phone - 800.480.0415 or 260.469.3040 •...
