Setting Up the System

The system will be set up in the following sequence:
1. Unpack the contents of the shipping box.
2. Check for obvious signs of exterior damage. If damage is
noted, contact BTX Customer Service before proceeding.
3. Place the Waveform Generator on the top of a sturdy table.
4. Connect the electrode cable into the connector at the
bottom right of the front panel.
5. Connect the mains/power cord into the back panel at the
bottom right.
6. Connect the foot switch (if applicable) into one of the USB
ports at the bottom left corner of the Waveform Generator
(front panel).
PLEASE CONTACT BTX IF YOU ARE INTERESTED IN AN
ON SITE TRAINING.

Initial System Test

This section will describe the process to verify mains/line cable has
been installed properly and the computer boots up.
1. Connect the system power cord to the mains.
(Plug in the device.)
2. Turn the rocker switch (Line/Main Power) on the front
panel to the "on" position (I).
The rocker switch labeled "Power" should illuminate, and the Login
Screen should appear within 10 seconds. If the Waveform Generator
power switch fails to illuminate, then return it to the OFF position
(O). Verify the power cord is properly plugged into the wall. Verify the
wall socket is functional. It may be necessary to check the fuse. See
Maintenance section (page 28) for instructions, proper replacement
of the fuse and the correct fuse type.
If the power is properly applied, the screen should appear as that
shown in Figure 4. After entering the user login information and
tapping "OK", the software continues its initialization procedure and
the NEXT button will have a white fill.
If the internal system checks are successfully completed, the NEXT
button will turn GREEN indicating the system is ready for use (Figure
5). If the NEXT button turns RED, then the internal checks failed
(Figure 6). The system cannot be used if the button is red. Contact BTX
Customer Service for assistance.
This completes the set-up and testing of the AgilePulse™ System.
If there is a problem, contact Technical Support for assistance.
Phone 508-893-8999, or toll free 800-272-2775
Website www.btxonline.com
7
ID System Components & Set-Up
AgilePulse ID In Vivo Gene Delivery System
Publication 015-101444 Rev 2.0 • www.btxonline.com

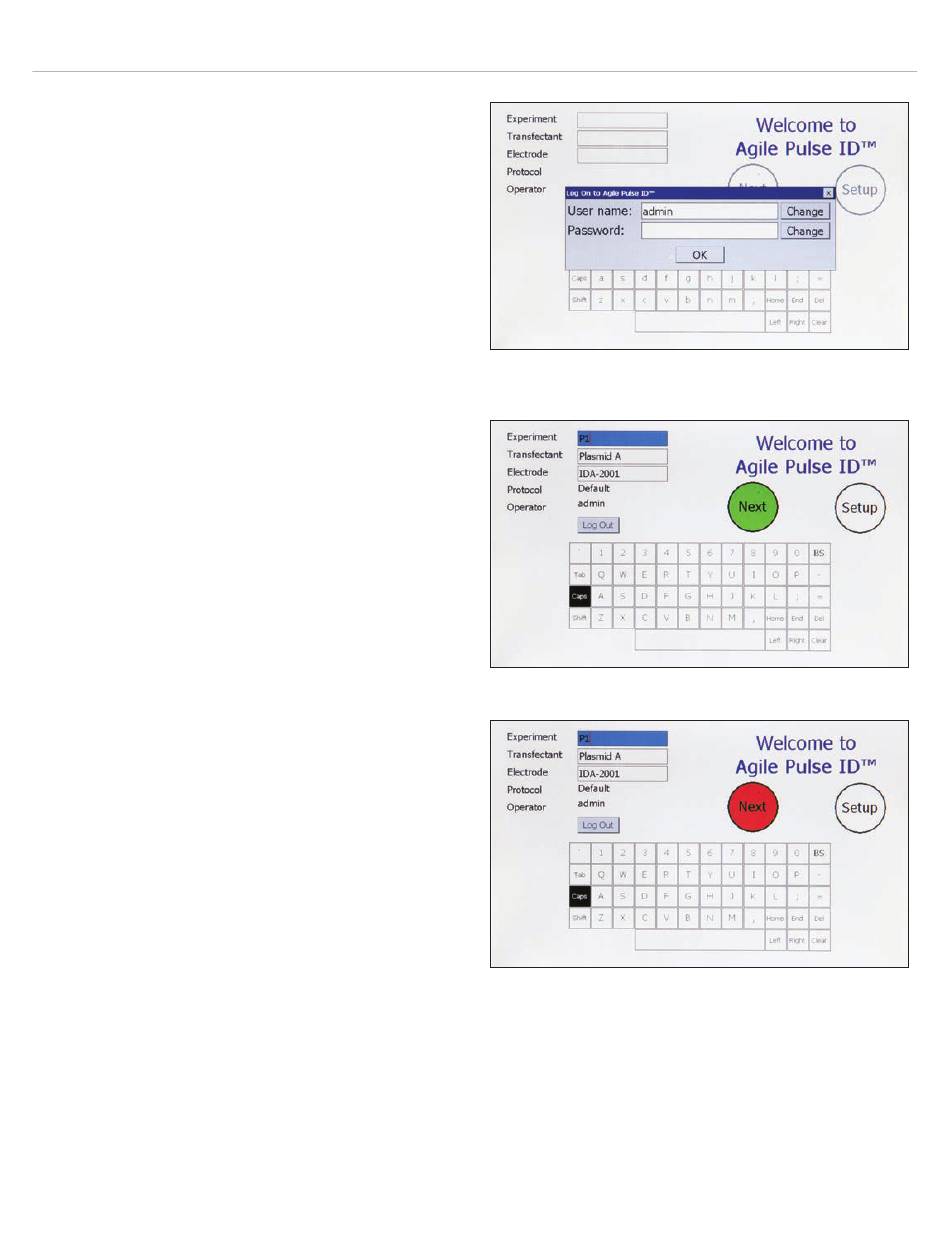

Figure 4: Login Screen
