System Operation

CSV Data

Detailed pulse information is exported from raw data and formatted to a standard comma separated file, primarily meant to be imported

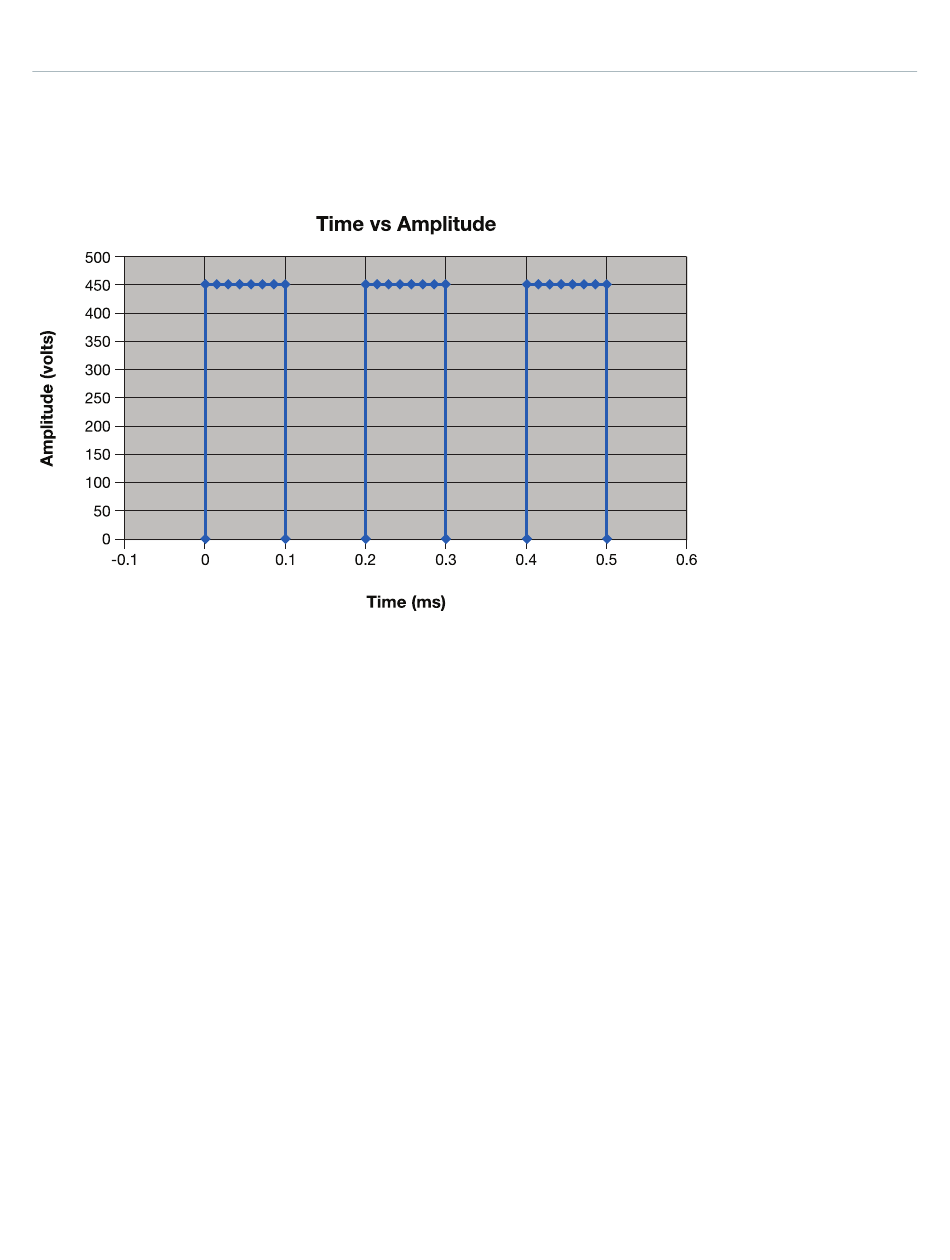

into Microsoft Excel® for further user manipulation. As an example in Figure 18, a user chart was made to display the monitored amplitude
samples of three 100 microsecond pulses run at 5 kHz. In this case, each pulse contains eight amplitude samples.

Figure 18: Sample Amplitude Analysis
