Summary of Contents for Aseptico AMC-20CF

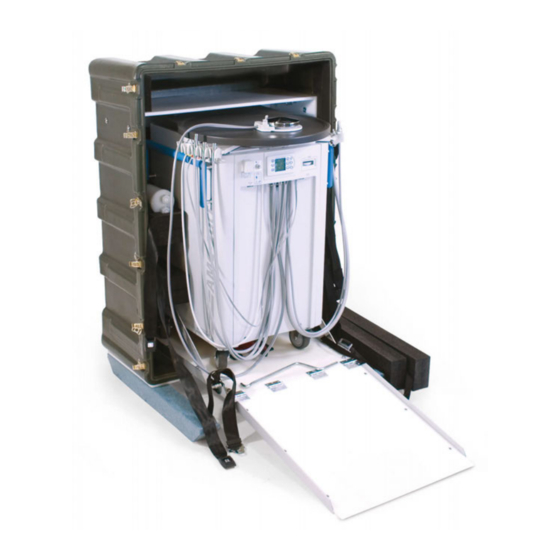

- Page 1 AMC-20CF Mobile Dental System OPERATION & MAINTENANCE MANUAL...
-
Page 2: Table Of Contents
This device has been tested and found to comply with the emissions requirements of IEC 60601-1-2:2001-09. These The AMC-20CF is a mobile self-contained dental system that requirements provide reasonable protection against harmful is used for endodontic and general dentistry applications. -
Page 3: Introduction
Your new Aseptico AMC-20CF Dual Voltage Mobile Dental System is the finest mobile dental system available. The System provides an array of dental equipment features and functions designed to serve a wide range of dental applications -- all conveniently and neatly packaged into a single, self-contained transportable cart: •... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS: Aseptico accepts no liability for direct or consequential injury or damage resulting from improper use, arising in particular through the non-observance of the operating instructions, or improper preparation and maintenance. WARNING: Clean, disinfect, and sterilize new or repaired handpieces and instruments before first use and between each patient use. -
Page 5: Setting Up The Unit
System from its shipping case (Fig. 1) per the instructions provided in the Aseptico "Packing Guide", included in case. 4. Verify that the voltage-selector switch is set to the proper voltage. To select the 2. Attach the electric motor/cord to the desired voltage, use a long slender tool to receptacle on the front panel. - Page 6 SETTING UP THE UNIT - Cont’d 8. Place the foot control on the floor (Fig. 9). amalgam manifold. Tighten the retaining screw located under the top cover (see FIG. 9 Fig. 6, page 3). NOTE: Before installing WATER ON/OFF the separator into the manifold, remove the TOGGLE two caps from the inlet and outlet ports of the separator.
- Page 7 FIG. 12 - AMC-20CF Front View HANDPIECE COOLANT SCALER COOLANT BOTTLE ACCESSORY TRAY VALVES (3) FLUSH COOLANT SELECTOR w/ADJUSTABLE HOLDER HINGED LID VALVE TOGGLE TOGGLE TOGGLE ALLOWS ACCESS TO PLUMBING SYRINGE, HIGH & LOW HANDPIECE, VACUUM SCALER, & HOLDERS CURING...
- Page 8 SETTING UP THE UNIT- Cont’d FIG. 13 - AMC-20CF Back View ACCESSORY TRAY w/ADJUSTABLE HOLDER WASTE HOSE & HANGER 10 AMP 20 AMP CIRCUIT CIRCUIT BREAKERS (2) BREAKERS (2) WASTE COMPARTMENT LATCH 1 AMP CIRCUIT WASTE BREAKERS (2) COMPARTMENT ACCESS DOOR...
- Page 9 FIG. 14 - AMC-20CF - Back View AMALGAM WASTE CON- SEPARATOR TAINER FILTER REGULATOR AMALGAM AMALGAM SEPARATOR BYPASS FIBER OPTIC/CURING LIGHT RETAINING SCREW FILTER MODULE WASTE FLOW PRESSURE VALVE REGULATOR SCALER SHIPPING FASTENERS SYRINGE SHIPPING FASTENERS SYSTEM PRESSURE GAUGE CENTRAL VACUUM CANNISTER...
-
Page 10: Operation Functions
2. INSTRUMENT CONTROLS (Figs. 16 & 17) control panel on or off. If the – The Aseptico AMC-20CF includes controls console was turned off using for all handpiece and instrument holders. the Standby button, the Display will... - Page 11 Figure 19 for handpiece speed ranges. button repeatedly until the word "ENDO" appears in the Motor Direction window. Fig. 19 - AMC-20CF Speed Ranges Next, select the desired Torque level using 10,000 - 200,000 the UP/Down Torque buttons. The unit is...
-
Page 12: Customizing Electric Motor Settings
OPERATION FUNCTIONS - Cont'd: the Torque Up/Down buttons to select the 3. When the desired ratio is displayed, press the Preset button to toggle the ratio to either enabled desired illumination in 10% increments, from or disabled status. The word "On" will appear in 10% to 100%. - Page 13 Figure 21 - Factory Default Presets PRESET SPEED ENDO MODE DIRECTION TORQUE HANDPC RATIO (RPM) (8:1 Ratio Only) 200,000 100 % — 150,000 100 % — 150,000 50 % Torque Limit — 100,000 100 % — 100,000 50 % Torque Limit —...
- Page 14 The scaler includes light Off. The light is cooled with drive air 3 instrument tips: The #37 instrument is from the AMC-20CF manifold at 20 psi. An specially developed for subgingival audible tone will sound every 10 seconds scaling, furcations, supragingival fine while the light is active.
- Page 15 caps. FIG. 23 c.) Fill bottles with water or other solution. d.) Screw bottles back into their caps. HIGH VACUUM (HVE) e.) Toggle the pressure relief valve to 'On' to SALIVA SYRINGE pressurize both bottles. EJECTOR f.) Select bottle to be used via the Bottle Selector Toggle Switch (Fig.
- Page 16 OPERATION FUNCTIONS - Cont’d: 13. HIGH AND LOW VOLUME VACUUMS (Fig. 23, FIG. 26 page 13) – The unit is equipped with a 5-liter waste tank, a high volume evacuator (HVE) hose, 110V OUTLET and a low volume saliva ejector hose. Both high and low volume systems operate simultaneously EXHAUST FAN from the same vacuum source.
-
Page 17: Routine Adjustments
1-liter per minute flow setting counterclockwise will increase the for the specific amalgam separator provided pressure. with this AMC-20CF Cart. A bypass filter has been provided for areas where FIG. 28 amalgam separators are not required. WATER FLOW ADJUSTMENT FIG. -
Page 18: Sterilization & Maintenance
STERILIZATION AND MAINTENANCE: WARNING CAUTION FOR ALL STERILIZATION: • Do not attempt to disassemble the motor or motor connector. • Do not exceed 135° C or 275° F • Do not oil or lubricate the motor. • Do not submerge in any solutions •... - Page 19 Keep spare traps in stock. The AMC-20CF uses standard 1 7/8” traps (open or closed type): To insert a new tip, press locking collar and push tip into socket as far as it will go. Release ring and gently tug on tip before using to ensure that tip is securely locked into socket.
-
Page 20: Sterilization & Maintenance
STERILIZATION AND MAINTENANCE - Cont'd: 3. Insert pointed end of installer pin into open end ULTRASONIC SCALER: of installer sleeve until O-ring stops against (Refer to ultrasonic scaler instructions for use, end of tool. supplied separately.) 4. Position concave end of installer pin against The scaler handpiece cover and scaler tips are end of water/air port fitting (see Figure 36). -
Page 21: Repacking Instructions
11. Fold the loading ramp up against the front packing ramp. block and secure it tightly with the buckled strap 6. Carefully roll the AMC-20CF unit, back side first, provided. up the ramp and into the case. Use the two side 12. -
Page 22: Troubleshooting
TROUBLESHOOTING: Problem: Correction: Unit will not start: • Check system power connection. • Check voltage selector switch for proper voltage. • Check circuit breakers. • Check if waste tank sensor is connected. • Check if waste tank is full. Unit starts but trips circuit •... -
Page 23: Specifications
1.6 SCFM @ 100 PSI (45.3 liters/min @ 6.89 bar) Water Bottle Capacity: 67.8 fl. oz. (2.0 liters) IMPORTANT Air Storage Capacity: 1.93 gal.(7.3 liters) nominal When running the AMC-20CF Air Storage Pressure: 110 PSI (7.58 bar) unit at 50Hz, expect approxi- Water Flow: 5.07 fl. oz./min (0.15 liter/min) -
Page 24: Symbol Definitions
SYMBOL DEFINITIONS: Type B Equipment Protective earth (ground) IPX1 Protect Against Dripping Water Type BF Equipment Attention, consult Serial Number accompanying documents Dangerous Voltage Footswitch On/Off Switch - Auxillary Alternating current On/Off Switch - Mains Do Not Throw In Trash Bottle Pressure Release Toggle Air Coolant Control Bottle Select Toggle... -
Page 25: Replacement Parts List
REPLACEMENT PARTS LIST ITEM PART NO CANISTER VACUUM WASTE 4 QUART MODIFIED 730229-06 WASTE HOSE ASSEMBLY 330673 AMALGAM SEPARATOR MOD 730595 CONTAINER BYPASS AMALGAM SEPARATOR 730615 HANDPIECE CURING LIGHT 730624 BOTTLE 1000ml ZIRC KIT 730631-01 LINECORD US HOSPITAL GREY 15A/125V 10 FT 840101 LINECORD EURO BLACK 15A/250V 2.5 M 840102... -
Page 26: Warranty
WARRANTY Aseptico warrants its products against defects in material or workmanship for a period of two (2) years, from date of original invoice. Some handpieces are warranted for one year under the same conditions. Other handpieces and expendable components, such as air turbines and light bulbs, are covered by shorter warranty periods, or have no warranty. - Page 27 NOTES...
-
Page 28: P.o. Box 1548 • Woodinville, Wa
P.O. Box 1548 • Woodinville, WA 98072 8333 216th Street SE • Woodinville, WA 98072 (425) 487-3157 • (800) 426-5913 www.aseptico.com • info@aseptico.com P/N: 420791 Rev. L ECO 14078 PRINTED IN 06/2017 THE U.S.A.
