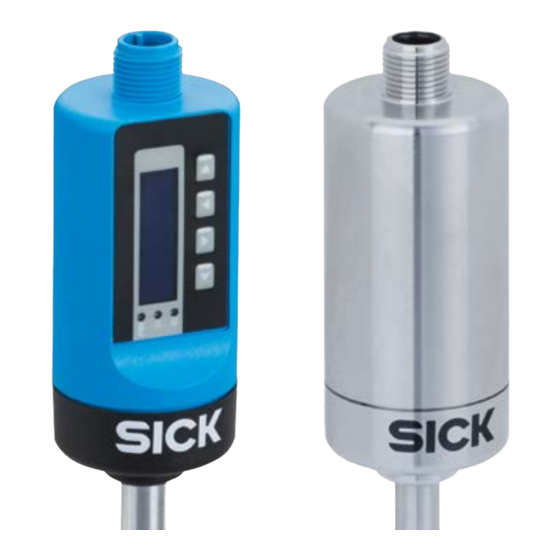

Summary of Contents for SICK T-EASIC FTS

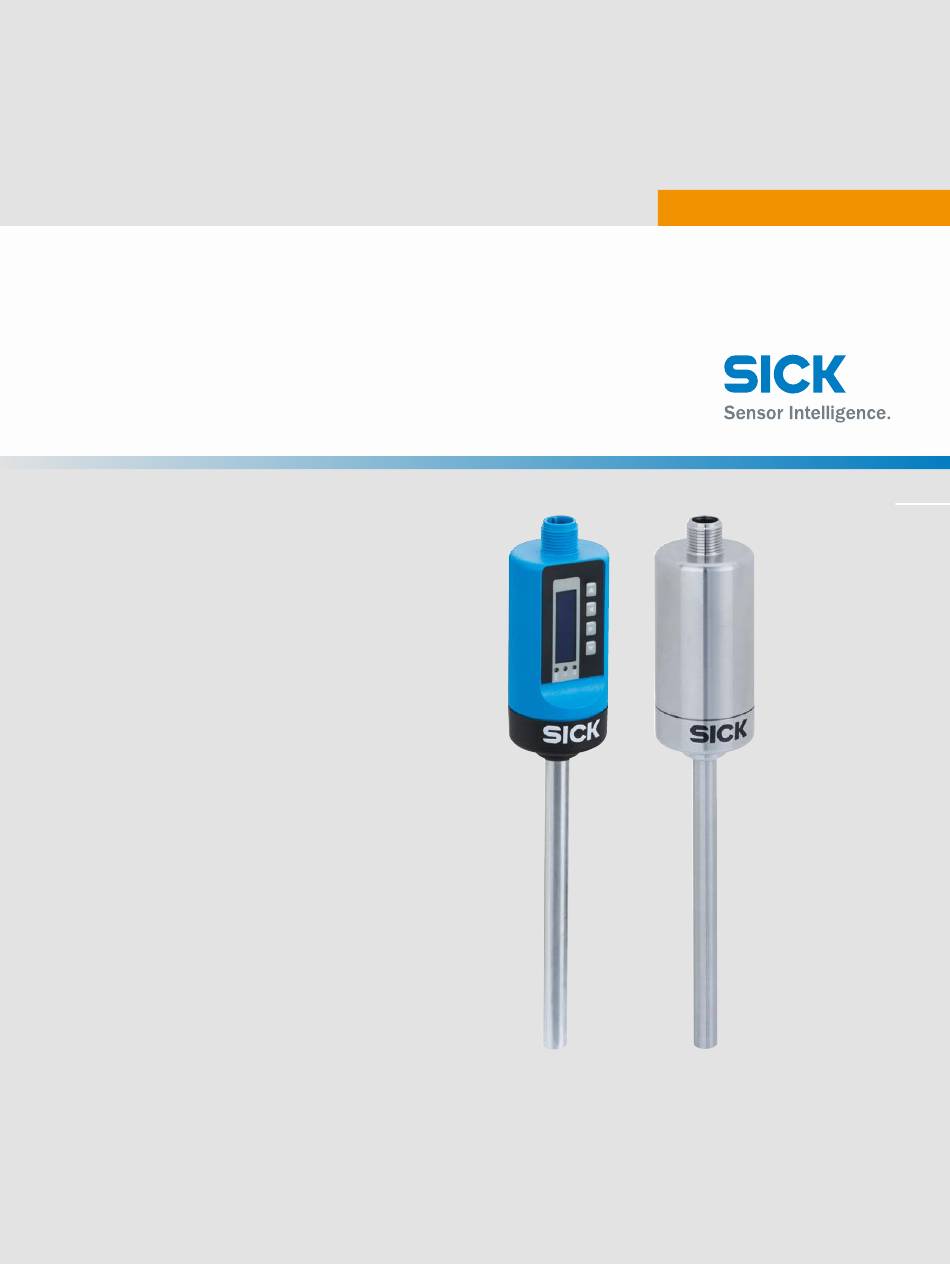

  • Page 1 OPERATING INSTRUCTIONS T-EASIC ® Flow sensor...
  • Page 2 Germany Legal notes This work is protected by copyright. The associated rights are reserved by SICK AG. Reproduction of this document or parts of this document is only permissible within the limits of the legal provisions of copyright law. Any modification, abridgment, or translation of this document is prohibited without the express written permission of SICK AG.
  • Page 3: Table Of Contents

    Dismounting the process connection adapter ............18 Electrical installation ..................19 Safety ........................19 6.1.1 Notes on the electrical installation ............19 Electrical connection ....................20 6.2.1 Overview of the electrical connections ...........20 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 4 Advanced Menu (Close Menu) ..............37 Information .......................37 Troubleshooting ..................... 39 Error message on the display (Industrial version only) ..........39 Outputs........................40 Repair ......................41 Maintenance ......................41 Returns ........................41 OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 5 Adapter M18 x 1.5 (p/n 2104208) ............48 12.3.4 Adapter clamp DIN32676 DN25-40 (p/n 2093548) ......49 Factory settings ..................... 50 Accessories ....................51 Menu overview ....................52 License text ....................54 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 6: About This Document

    HAZARD … indicates a situation of imminent danger, which will lead to a fatality or serious inju- ries if not prevented. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 7: Further Information

    To find your representative, see the final page of this document. NOTE Before calling, make a note of all sensor data such as type code, serial number, etc., to ensure faster processing. 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 8: Safety Information

    Modifications and conversions IMPORTANT Modifications and conversions to the sensor and/or the installation may result in un- foreseeable dangers. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 9: Requirements For Skilled Persons And Operating Personnel

    SAFETY INFORMATION Interfering with or modifying the sensor or SICK software will invalidate any warranty claims against SICK AG. This applies in particular to opening the housing, even as part of mounting and electrical installation work. Before making technical modifications to or expanding the sensor, the prior written approval of the manufacturer must be obtained.
  • Page 10: Operational Safety And Specific Hazards

    • The sensor has been designed according to the Pressure Equipment Directive Article 3 Paragraph 3 according to good engineering practice. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 11: Product Description

    Yes (OLED + 3 status LED) Electrical connection M12, 4-pin Electrical output 1 digital output + 1 digital input / output NOTE Not all versions of the type code can be combined! 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 12: Product Characteristics

    For a detailed description of the buttons and their functions, see “7.2.1 Display, LEDs and operating buttons (Industrial version only)”. NOTE Both versions of the T-Easic can be programmed with the SICK SOPAS-ET via the IO- ® Link 1.1 communication interface. For IO-Link see “7.2.4 IO-Link”.
  • Page 13: Product Features And Functions

    8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 14: Transport And Storage

    “11 Technical data”. • For storage periods of longer than 3 months, check the general condition of all components and packaging on a regular basis. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 15: Mounting

    Installation in the standpipe is recommended for vertically installed pipes. The sensor must not be mounted before or in a downpipe or in an open downpipe. Horizontal mounting from the bottom is only possible if the pipe is free from build-up. 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ®...
  • Page 16: Probe Alignment To The Flow Direction

    90° angled with the flow direction. Fig. 5: Orientation of the T-Easic® aligned with flow direction in Hygienic (left) and Industrial (right) version 1 M12 coding key 2 Flow direction OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 17: Mounting The Sensor

    • For sealing the process connection to the pipe the operating pressure must be con- sidered while choosing the correct sealing method. Mounting the process connection adapter It is strictly recommended to use only original adapters from SICK. The adapters are not included and have to be ordered separately. “14 Accessories”...
  • Page 18: Dismounting The Process Connection Adapter

    At this point, the resis- tance increases noticeably. Tighten the union nut slightly. Fig. 9: Dismounting the process connector adapter from the sensor probe OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 19: Electrical Installation

    • The cable on the M12 connection has been screwed on. • The top cover is screwed (no gap between the upper cover and upper housing). 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 20: Electrical Connection

    Switching output/ push-pull/ digital input Blue Ground C/ Q1 Black Switching output/push-pull/IO-Link communication The table above shows only the standard pin assignment. Other pin assignments are possible. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 21: Commissioning

    The display shows current values regarding flow and temperature. If an additional infor- mation or warning occurs the display alternates between current values and message every 3.5 seconds. 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 22: Leds (Industrial Version Only)

    7.2.4 IO-Link For operation via IO-Link, an IODD file, function blocks of common PLCs and a descrip- tion of the available telegram parameters can be downloaded from www.sick.com. Measurement configuration The sensor can be configured using different measuring parameters. Firstly it has to be determinded whether the sensor should be operated in Velocity mode (relative or absolute) or Volume absolute mode or whether it should be taught.
  • Page 23: Configuration Of The Measurement Mode Based On Volume Absolute As Example

    While the teach cycle is running the message run ... is displayed. The message Teach OK is displayed after a successful teach. Should the teach fail, the message Teach not OK is displayed and the steps above must be repeated. 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ®...
  • Page 24: Configuration Of Q1 And Q2

    Hysteresis norm open Temp Always available Hysteresis norm closed Configuration- Temp Window norm open dependent Temp Window norm closed Failure Fig. 15: Q1 Mode menu structure OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 25: Configuration Of The Switching Output Q1 And Q2

    Increase or decrease the value using the arrow pushbuttons (up/down). Configure the delay mode and time (see “7.4.7 Delay Mode Q1”). Switching output behavior Flow / temperature 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 26: Normally Closed With Configurable Hysteresis

    Configure the delay mode and time (see “7.4.7 Delay Mode Q1”). Switching output behavior Flow / temperature active inactive Fig. 18: Normally closed with configurable hysteresis OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 27: Normally Open With Window Function

    Select Q1 Switchpoint 2 (SP2) using the right arrow pushbutton. Increase or decrease the value using the arrow pushbuttons (up/down). Configure the delay mode and time (see “7.4.7 Delay Mode Q1”). 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 28: Normally Closed With Window Function

    Configure the delay mode and time (see “7.4.7 Delay Mode Q1”). Switching output behavior Flow / temperature active inactive Fig. 20: Normally closed with window function OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 29: Configuration Of The Digital Input Q2

    External Q1 = Internal Q1 AND Q2 active inactive External Q1 = Internal Q1 OR Q2 active inactive Fig. 22: Digital input Q2 and Boolean logic explanation 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 30: Advanced Menu (Advanced Settings)

    Delay Time Q1 − Delay Mode Q2 − Delay Time Q2 − Simulation − Display Mode − Factory Reset − Display Lock − Password − Close Config OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 31 > < Display Lock > < Password > < Advanced Menu > Reset all? inactive login? Close Menu HMI unlocked HMI locked active !Password! Unit Pipe Diameter 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 32: Unit Pipe Diameter

    The following values are available: − 100 ms − 200 ms − 300 ms − 500 ms − − − − − 10 s − OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 33: Linear Flow Factor

    Q1”) is expired. When the Q1 Switchpoint 2 is reached, the status of Q1 will not switch till the Delay time Q1 (see “7.4.8 Delay Time Q1”) is expired. 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 34 Fig. 24: Delay Mode Q1 set as Ton Delay / Hysteresis - Normally open (left) and Delay Mode Q1 set as Toff Delay / Hysteresis - Normally open (right) OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 35: Delay Time Q1

    Q2 Switchpoint 2 is reached, the status of Q2 will not switch till the Delay Time Q2 is expired (see “7.4.10 Delay Time Q2”). 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 36: Delay Time Q2

    Function Flow & Temp Standard The flow is shown in the lower part of the display and the temperature is shown in the upper part. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 37: Factory Reset

    The code to unlock the display and buttons is 000387. 7.4.15 Password This submenu is reserved for SICK service only. 7.4.16 Advanced Menu (Close Menu) This submenu closes the advanced configuration menu. The following value is avaible: −...
  • Page 38 Indication of the device tag given to the sensor Supply Voltage Actual supply voltage of the device Internal Temp Indication of the temperature of the printed circuit card of the sensor OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 39: Troubleshooting

    Ambient Temperature too Warning Ambient temperature is too high. Reduce the ambient temperature high according to the specifications (see “11 Technical data”). 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 40: Outputs

    “7.3 Measurement configuration”). expected An error is pending; the sensor outputs are in the Remove the cause of the error. safe state. Line break. Check cable. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 41: Repair

    Repair Repair work on the sensor may only be performed by qualified and authorized per- sonnel from SICK AG. Interference with or modifications to the sensor on the part of the customer will invalidate any warranty claims against SICK AG.
  • Page 42: Disposal

    DISPOSAL Disposal Dispose of device components and packaging materials in compliance with applicable country-specific waste treatment and disposal regulations for the region of use. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 43: Technical Data

    10 cm/s to 100 cm/s, inlet zone > 30 cm, outlet zone < 30 cm, 26 °C ± 1 °C, 2 bar ± 1 bar Under reference conditions as in but only flow rate = 100 cm/s 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 44: Mechanics/Materials

    According to UL listing: degree of contamination 3 (UL61010-1: 2012-05); air humidity: 80 % at temperatures up to 31 °C; installation height: max. 3,000 m above sea level OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 45: Electrical Connections

    > 200 years All connections are reverse polarity and overcurrent protected. Q1 and Q2 are short-circuit protected. Use an energy-limited circuit for power supply as per UL61010-1 3rd Ed. 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 46: Dimensional Drawings

    All dimensions are provided in mm (inches). 12.1 Industrial version Ø 32 (1.26) M12x1 (0.18) L: 60 (2.36) Ø 8 (0.31) 100 (3.94) 200 (7.87) Fig. 27: Dimensional drawing Industrial version OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 47: Hygenic Version

    12.3 Mounting adapters for T-Easic ® 12.3.1 Adapter G1/2 (p/n 5338774) 0.32) (0.63) (0.87) 0.33) G 1/2 A 1.02) Fig. 29: Dimensional drawing adapter G1/2 (p/n 5338774) 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 48: Adapter 1/2" Npt (P/N 5338775)

    Fig. 30: Dimensional drawing adapter 1/2" NPT (p/n 5338775) 12.3.3 Adapter M18 x 1.5 (p/n 2104208) 0,31) M18x1,5 Fig. 31: Dimensional drawing adapter M18 x 1.5 (p/n 2104208) OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 49: Adapter Clamp Din32676 Dn25-40 (P/N 2093548)

    DIMENSIONAL DRAWINGS 12.3.4 Adapter clamp DIN32676 DN25-40 (p/n 2093548) (1.34) 0.32) (0.63) (0.87) 0.28) 50,5 1.99) Fig. 32: Dimensional drawing adapter clamp DIN32676 DN25-40 (p/n 2093548) 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 50: Factory Settings

    Filter (process data) Linear Flow Factor 100 % Delay Mode Q1 Delay Mode Q2 Simulation Display Mode Flow & Temperature Display Lock Inactive ApplicationSpecificTag Device Specific Tag OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 51: Accessories

    Cable IP69K - M12x1 4 pins - 5 meter straight 6052617 DOL-1204-G10MNI Cable IP69K - M12x1 4 pins - 10 meter straight More accessories can be found online at: www.sick.com 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 52: Menu Overview

    Serial No. V1.22.2R Always available Firmware Version Configuration- ApplicationSpecificTag dependent Device Specific Tag Failure 24.12 V Supply Voltage 33.2 °C Sensor Temp Unit Pipe Diameter OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 53 Factory Reset > < Display Lock > < Password > < Advanced Menu > Reset all? inactive login? Close Menu HMI unlocked HMI locked active !Password! Open Menu 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
  • Page 54: License Text

    CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. OPERATING INSTRUCTIONS | T-EASIC ® 8023072/ 2018-09-03 | SICK AG Subject to change without notice...
  • Page 55 LICENSE TEXT 8023072/2018-09-03| SICK AG OPERATING INSTRUCTIONS | T-EASIC ® Subject to change without notice...
