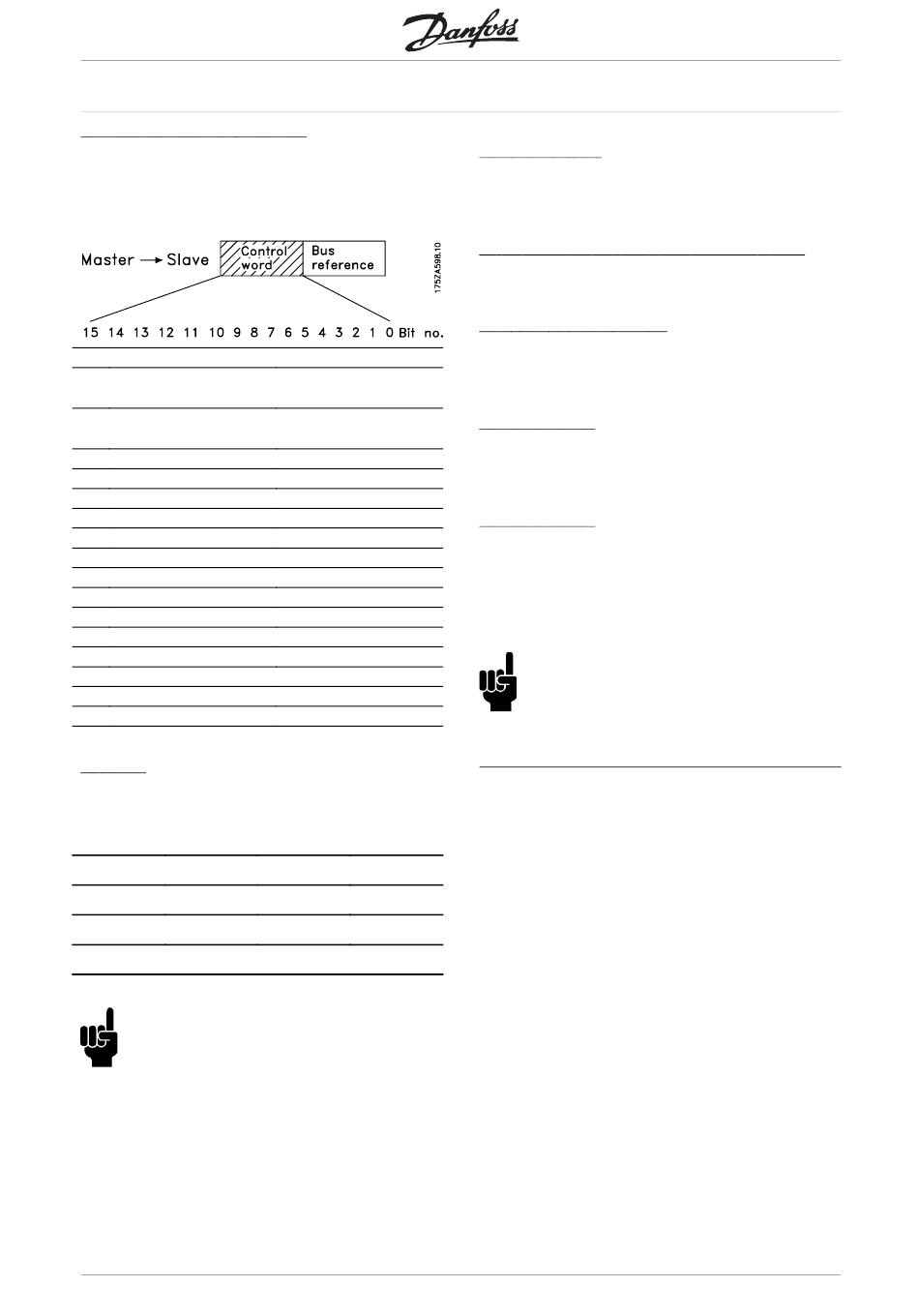

Control Word under VLT standard

(parameter 512 = FC Profile). The control word is
used for sending commands from a master (e.g. a
PC) to a slave (VLT frequency converter).
Bit Bit = 0
00 Preset reference
choice Isb
01 Preset reference
choice msb
02 DC brake
03 Coasting
04 Quick stop
05 Hold
06 Ramp stop
07 No function
08 No function
09 Ramp 1
10 Data not valid
11 No function
12 No function
13 Choice of Setup (lsb)
14 Choice of Setup (msb)
15 No function
Bit 00/01: Bits 00 and 01 are used for choosing among
the four pre-programmed references (parameters
215-218) in accordance with the following table:
Preset ref. Parameter
1 215
2 216
3 217
4 218
NB!:
Parameter 508 is where to choose the way
bits 1/12 are to be combined (gated) with the
corresponding function on the digital inputs.
18
Bit =1
ON 1
ON 2
Ramp
Enable
Ramp
Ramp enable
Start
Reset
Jog
Ramp 2
Valid
Relay 01 activated
Relay 04 activated
Reversing
Bit 01 Bit 00
0 0
0 1
1 0
1 1
®
VLT 5000/ 5000 FLUX/ 6000 HVAC/
8000 AQUA DeviceNet
Bit 02, DC Brake:
Bit 02 = "0" leads to DC braking and stop. Braking
current and duration are set in parameters 125 and
126. Bit 02 = "1" leads to ramping.
Bit 08, Activation of Jog speed in parameter 213:
Bit 08 = "0": Jog speed not activated. Bit 08 = "1"
means that the motor is running at Jog speed.
Bit 09, Choice of ramp 1/2:
Bit 09 = "0" means that ramp 1 is active (parameters
207/208). Bit 09 = "1" means that ramp 2
(parameters 209/210) is active.
Bit 11, Relay 01:
Bit 11 = "0": Relay 01 not activated. Bit 11 =
1: Relay 01 activated, provided Control word bit
has been chosen in parameter 323.
Bit 12, Relay 04:
Bit 12 = "0": Relay 04 has not been activated. Bit 12
= "1": Relay 04 has been activated, provided Control
word bit has been chosen in parameter 326.
See the description of other bits under control
word for Profidrive standard.
NB!:
Unless otherwise mentioned, the control
word bit is combined (gated) with the
corresponding function on the digital
inputs as a logical "or" function.
