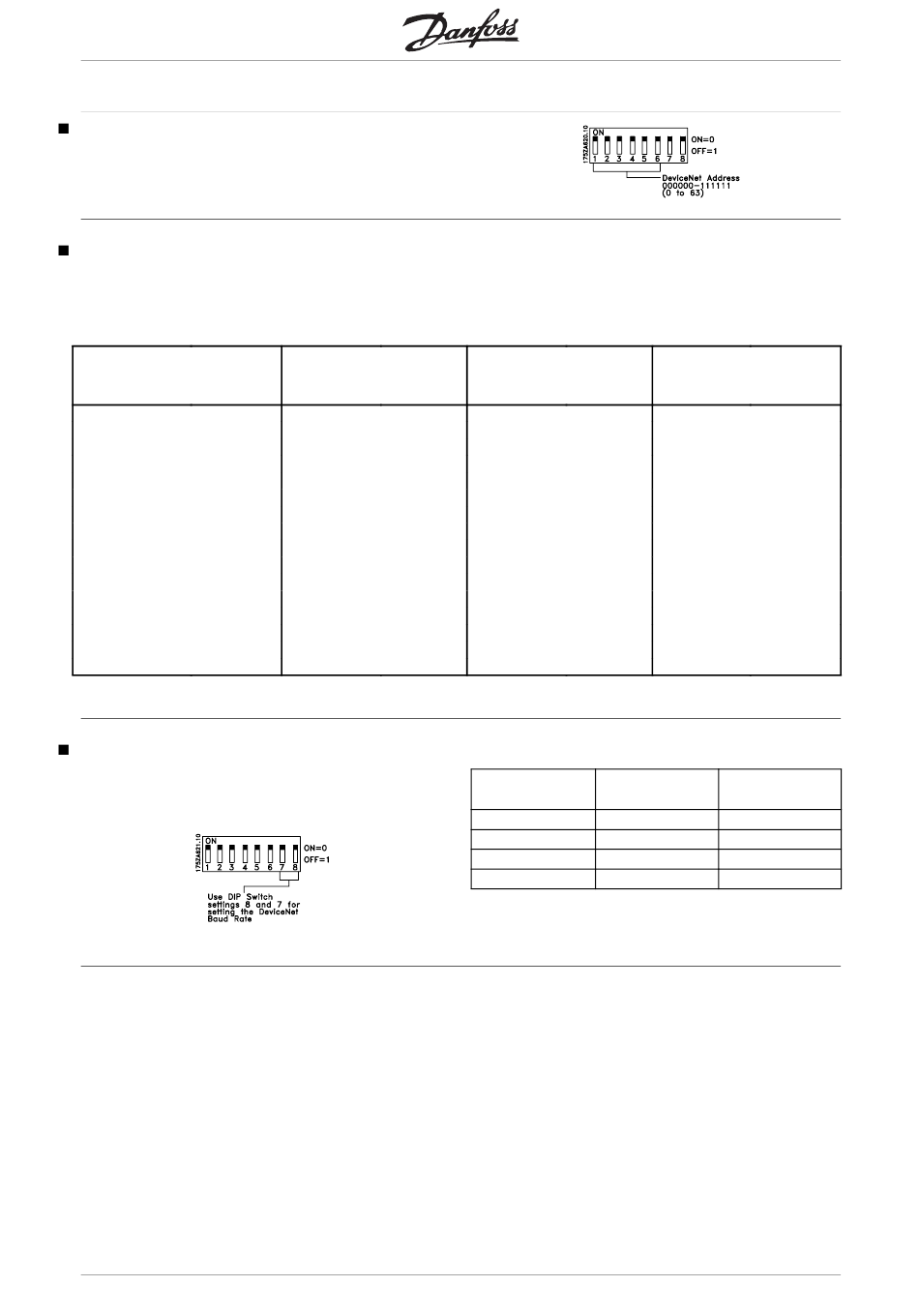

Setting the DeviceNet Node Address

Dip switches 6 through 1 set the module's node
address using binary addressing.

Switch Settings for DeviceNet Node Addressing

Follow these steps to set the DeviceNet node address:
1. Refer to the table below for the switch settings
of a specific address.
DeviceNet Switch
Address Settings
1 ⇒
0 000000
1 100000
2 010000
3 110000
4 001000
5 101000
6 011000
7 111000
8 000100
9 100100
10 010100
11 110100
12 001100
13 101100
14 011100
15 111100

Setting the Baud Rate

Dip switches 7 and 8 set the baud rate at which
the Communication Module communicates on the
network. The factory default setting is 125K BPS.
12
DeviceNet Switch
Address Settings
6 1 ⇒
16 000010
17 100010
18 010010
19 110010
20 001010
21 101010
22 011010
23 111010
24 000110
25 100110
26 010110
27 110110
28 001110
29 101110
30 011110
31 111110
®
VLT 5000/ 5000 FLUX/ 6000 HVAC/
8000 AQUA DeviceNet
2. Using your finger or a pointed object, slide switches
1 through 6 to the appropriate ON/OFF positions.
DeviceNet Switch
Address Settings
6 1 ⇒
32 000001
33 100001
34 010001
35 110001
36 001001
37 101001
38 011001
39 111001
40 000101
41 100101
42 010101
43 110101
44 001101
45 101101
46 011101
47 111101
Switch Settings for DeviceNet Module Baud Rate:
Baud Rate Switch Setting
125 kBPS
250 kBPS
500 kBPS
125 kBPS
MG.50.H4.02 - VLT is a registered Danfoss trademark
DeviceNet Switch
Address Settings
6 1 ⇒
48 000011
49 100011
50 010011
51 110011
52 001011
53 101011
54 011011
55 111011
56 000111
57 100111
58 010111
59 110111
60 001111
61 101111
62 011111
63 111111
Switch Setting
7 8
0 0
1 0
0 1
1 1
