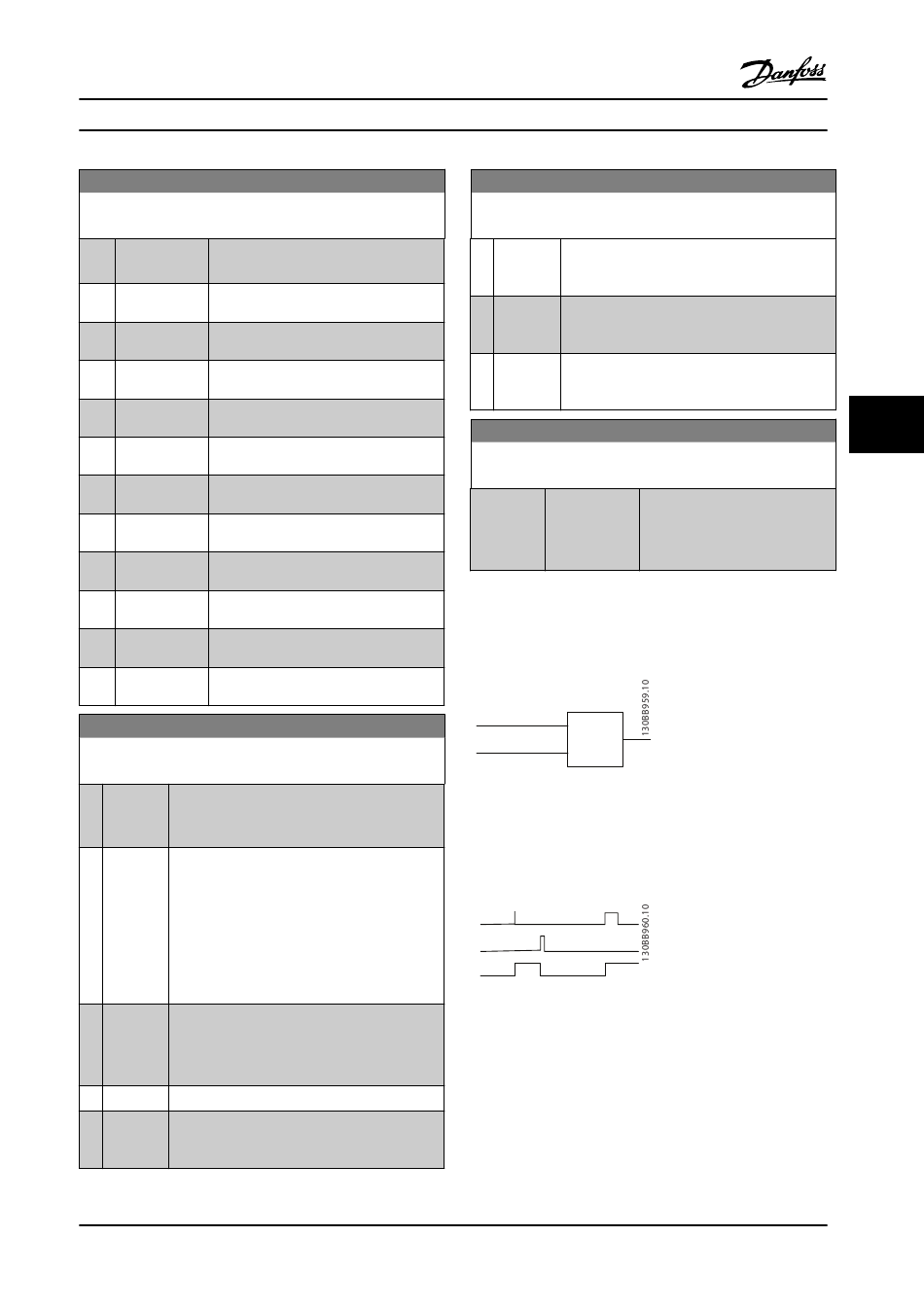

Parameter Descriptions
13-10 Comparator Operand
Array [6]
Option: Function:
[186] Drive in auto High when the frequency converter is in
mode auto mode.
[187] Start command
given
[190] Digital input
x30 2
[191] Digital input
x30 3
[192] Digital input
x30 4
[193] Digital input
x46 1
[194] Digital input
x46 2
[195] Digital input
x46 3
[196] Digital input
x46 4
[197] Digital input
x46 5
[198] Digital input
x46 6
[199] Digital input
x46 7
13-11 Comparator Operator
Array [6]
Option: Function:
Select the operator to be used in the
comparison. This is an array parameter
containing comparator operators 0 to 5.
[0] < The result of the evaluation is TRUE, when the
variable selected in parameter 13-10 Comparator
Operand is smaller than the fixed value in
parameter 13-12 Comparator Value. The result is
FALSE, if the variable selected in
parameter 13-10 Comparator Operand is greater
than the fixed value in
parameter 13-12 Comparator Value.
[1] = (equal) The result of the evaluation is TRUE, when the
variable selected in parameter 13-10 Comparator
Operand is approximately equal to the fixed
value in parameter 13-12 Comparator Value.
[2] > Inverse logic of option < [0].
[5] TRUE
longer
than...
MG34M422
Operating Instructions
13-11 Comparator Operator
Array [6]
Option:
[6] FALSE
longer
than...
[7] TRUE
shorter
than...
[8] FALSE
shorter
than...

13-12 Comparator Value

Array [6]
Range:
Size
related
*

6.10.4 13-1* RS Flip Flops

The Reset/Set Flip Flops hold the signal until set/reset.
Par. 13-15
RS-FF Operand S
Par. 13-16
RS-FF Operand R
Figure 6.16 Reset/Set Flip Flops
Two parameters are used and the output can be used in
the logic rules and as events.
S
R
Flip Flop Output
Figure 6.17 Flip Flop Outputs
The two operators can be selected from a long list. As a
special case, the same digital input can be used as both
Set and Reset, making it possible to use the same digital
input as start/stop. The following settings can be used to
set up the same digital input as start/stop (example given
with DI32 but is not a requirement).
Danfoss A/S © Rev. 2013-07-03 All rights reserved.
Function:
Function:
[-100000 - Enter the 'trigger level' for the
100000 ] variable that is monitored by this
comtor. This is an array parameter
containing comtor values 0 to 5.
6 6
