Inficon Sensistor ISH2000 Operating Instructions Manual

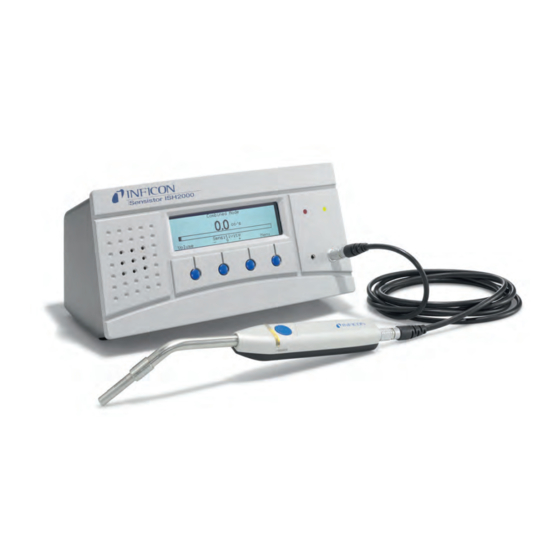

Hydrogen leak detector
Hide thumbs Also See for Sensistor ISH2000:
Table of Contents

Advertisement

Quick Links

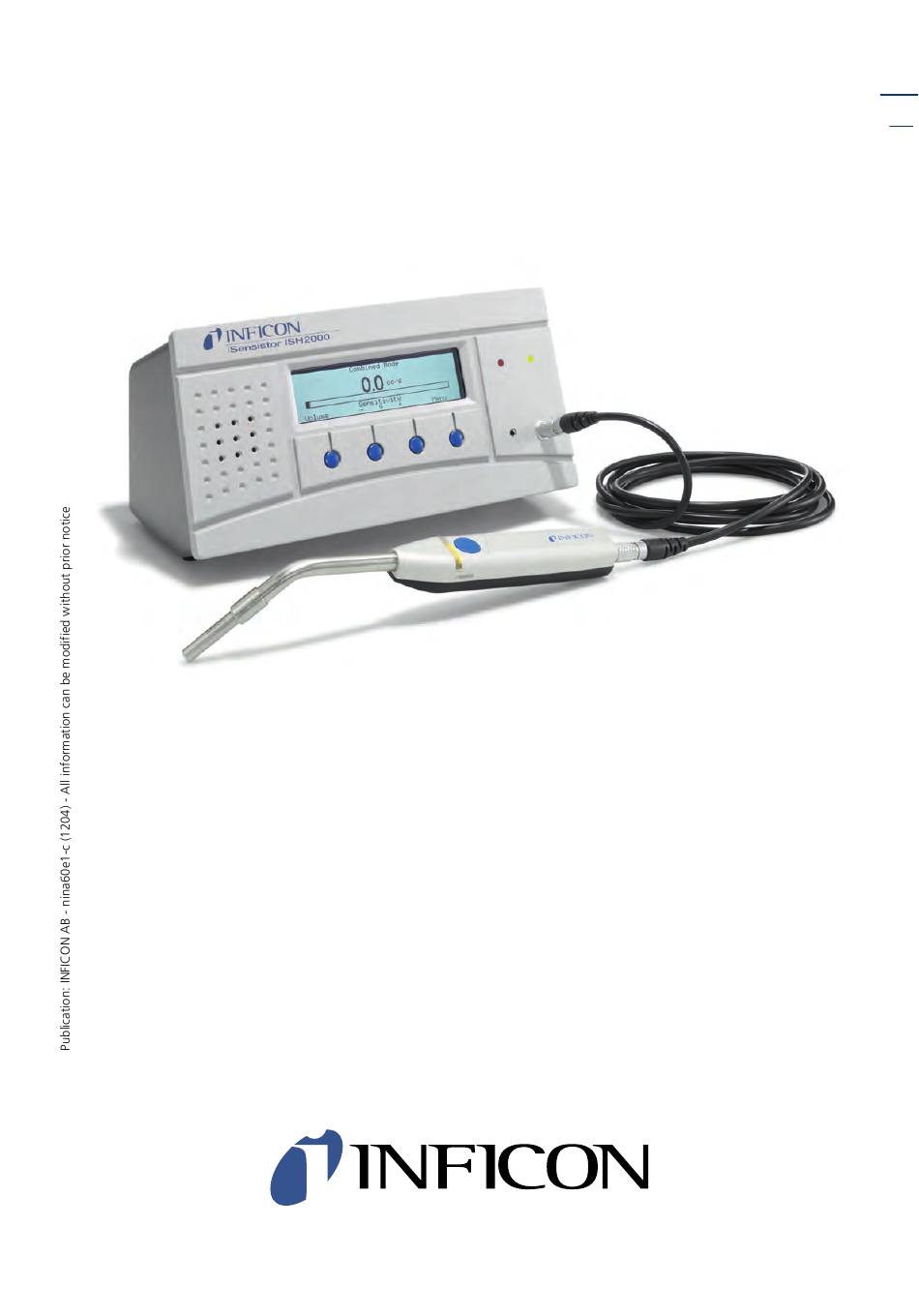

Hydrogen Leak Detector
EN
Sensistor ISH2000
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sensistor ISH2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inficon Sensistor ISH2000

Summary of Contents for Inficon Sensistor ISH2000

  • Page 1 Hydrogen Leak Detector Sensistor ISH2000 Operating Instructions...
  • Page 2 Hydrogen Leak Detector Sensistor ISH2000 Operating Instructions OP-Sensistor ISH2000-EN...

  • Page 3: Table Of Contents

    Trouble-shooting......................... 42 Sensistor ISH2000 specifications ....................43 Spare parts and accessories......................45 Support by INFICON ........................46 12.1 How To Contact INFICON ...................... 46 12.2 Returning you instrument to INFICON..................46 Declaration of conformity ......................47 Recycling ............................48 OP-Sensistor ISH2000-EN-201203...
  • Page 4 Dear customer, You have just bought an INFICON Hydrogen Leak Detector Sensistor ISH2000. The Sensistor ISH2000 is an extremely sensitive and selective detector for hydrogen gas (H It is especially designed for leak detection using Hydrogen Tracer Gas (Hydrogen diluted with Nitrogen down to a safe concentration) which is the most effective and economical tracer gas for leak testing.

  • Page 5: User Information

    Reference section The Getting started part consists of step by step case examples, explaining how to use the Sensistor ISH2000 in a variety common situations. The Reference section consists of in depth explanation and additional information, which completes the user manual with all relevant information.

  • Page 6: Description Of Equipment

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions Description of equipment Sensistor ISH2000 can be purchased in one of three versions. A desktop model (Sensistor ISH2000), a battery operated model (Sensistor ISH2000C), and a panel mount model (Sensistor ISH2000P). Sensistor ISH2000 Sensistor ISH2000 is equipped with a number of powerful functions making it very easy to integrate in a semi or fully automatic test system.

  • Page 7: Sensistor Ish2000P

    The panel mount model, Sensistor ISH2000P, has identical features of the Sensistor ISH2000. The difference is that the Sensistor ISH2000 can be installed in the operator’s panel or any other flat surface. Also it operates on +24 VDC. Mounting brackets and a panel rubber seal are delivered with the detector.
  • Page 8 Hydrogen leak detector Sensistor ISH2000 Operating Instructions Fig 2-3. The panel mount model consists of seven parts. Item Description Detector unit Brackets (not shown) Screws (not shown) O-rings seal (not shown) User manual (not shown) User manual CD (not shown)

  • Page 9: Controls And Connections

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions Controls and connections The controls and connections are discussed and shown in this chapter. Fig 3-1. Sensistor ISH2000 controls and indicators. Item Description Display Loudspeaker Control push-buttons Earphone socket Probe connector LEDs Display The display shows: •...

  • Page 10: Leds

    The ports and connections are shown in Figure 3-2 below. NOTICE! Always connect all four wires to the Power connector to 24VDC in order to operate. Sensistor ISH2000 Fig 3-2. Sensistor ISH2000 ports and connections. Rear View Item Description Printer port...
  • Page 11 Hydrogen leak detector Sensistor ISH2000 Operating Instructions Sensistor ISH2000C Fig 3-3. Sensistor ISH2000C ports and connections. Sensistor ISH2000C Rear View Item Description Power switch Printer port Battery charger Screw hole for mounting plate Sensistor ISH2000P Fig 3-4. Sensistor ISH2000P ports and connections.

  • Page 12: Precautions

    Never pressurise objects that have not previously been burst tested or otherwise approved for the chosen test pressure. Note: INFICON AB can not take any responsibility for the consequences arising from the inappropriate use of certain test pressures. OP-Sensistor ISH2000-EN-201203...

  • Page 13: Hydrogen Tracer Gas For Leak Detection

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions Pressure shocks might cause strong sounds which can cause impairment of hearing. Check that all relevant legislation and safety standards are complied with before putting Sensistor ISH2000 into service. Hydrogen Tracer Gas for leak detection When pure hydrogen gas is released in air its flammability range spans from 4% to 75% of hydrogen in air.

  • Page 14: Working Principle

    Operating Instructions Working principle Gas Sensor Technology The Sensistor ISH2000 leak detector is using an extremely sensitive hydrogen gas sensor based on a microelectronic field effect transistor (MOS-FET). The gas sensitivity appears when hydrogen absorbs into the sensor through a metal alloy (metal hydride) layer.

  • Page 15: Operating The Detector

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions Operating the detector To Detect leaks If all you wish to do is to detect the presence of a leak, that is, find out whether there is a leak or not, then use the Detection Mode (or use the detection bar in Combined Mode).

  • Page 16: To Quantify Leaks

    CAUTION! • Do not open detector! Service of this equipment may only be carried out by ser- vice organisations authorised therefore by INFICON, Sweden. • If the detector gets outer damage it must be controlled and repaired by service organisation authorised by INFICON.

  • Page 17: Calibrate The Leak Detector

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions Calibrate the leak detector Introduction The leak detector is the instrument and the probe together. This section of the user manual consists of step by step examples about how to calibrate the detector in the most common cases. For more about the calibration routine see the reference section.

  • Page 18: Reference Value With Reference Leak

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions calibration. If the calibration is not saved, the instrument will revert to the previous value after one minute. Calibration OK Note: You will need to repeat the calibration 2-3 times to get after changing setup or probe.

  • Page 19: Reference Section

    The menu system is designed as a tree structure similar to that used in mobile telephones. The display shows all the levels when browsing down through the menus so that you can always see exactly where you are. Fig 8-1. Sensistor ISH2000 controls and indicators. Menu <...

  • Page 20: Change Test Mode

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions 1.00E+00 = 1.00 x 10 1.25E-02 = 1.25 x 10 = 0.0125 Change Test Mode Choose the measuring method you will use in the menu Change Test Mode. There are three different methods to choose: •...
  • Page 21 Hydrogen leak detector Sensistor ISH2000 Operating Instructions Sensor condition indicator The indicator bar extends in length when the sensor is detecting reference gas. This indicator can be used for an early warning as to when a sensor replacement will be needed.
  • Page 22 Hydrogen leak detector Sensistor ISH2000 Operating Instructions Message Explanation Remedy Sensitivity too low for Sensitivity of sensor is too Check reference. Gas Reject level low to guarantee correct valve may be shut. response to a gas flow or Check that probe tip is concentration equal to not clogged.

  • Page 23: Detection Mode Settings

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions record the maximum signal during 6 seconds after that the operator (or external hardware) orders a calibration. It is very important that all delays in gas exposure as well as reaction time of sensor are taken into consideration when setting the calibration time.
  • Page 24 There is always some hydrogen gas in the background. In fresh air this is as low as 0.5 ppm (parts per million). Sensistor ISH2000 actively adjusts itself to the background. This is done automatically at start-upand thereafter, it slowly adapts itself to slow variations in the background concentration.

  • Page 25: Analysis Mode

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions background concentration will be detected. However, if the concentration remains constant it will be gradually cancelled out over a period of several minutes. For example, if the background concentration for some reason should suddenly rise...
  • Page 26 Hydrogen leak detector Sensistor ISH2000 Operating Instructions In Analysis mode the probe should be moved directly from a background situation to the test point. The size of the leak in PPM, or any other selected units, is shown on the display. The probe can and should be removed from the measuring point as the measured value remains on the display.

  • Page 27: Apc Settings

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions It is possible to measure or search in (Combined Mode) for a leak withut registering the measurement. The measurement value registers only when the staple moves (Multipoint Analysis Time). If a dynamic number of measurement points is selected the do the measurement in the following teps: 1.

  • Page 28: Display Settings

    Reset Signal Reset the sensor level in Analysis mode and Detection mode. Display Settings This section describes the different display settings of the Sensistor ISH2000. Contrast Contrast level of display. Higher value gives higher contrast. The contrast may need adjustment if ambient temperature changes.

  • Page 29: General Settings

    The default is no password (“”). Password Protected Contact INFICON AB if you have lost your user password. If the Calibration parameter is set to you will be prompted for a password when starting a calibration.

  • Page 30: Service Settings

    Settings will appear. Show Password Shows the chosen password in case the customer has forgotten the password. Contact INFICON AB to have the code sent to you. See the web address under the section-Info. Probe System Reset Reset all parameters into the probe to default settings. Contact INFICON AB to have the code sent to you.

  • Page 31: Combined Mode

    Upper Limit setting for Peak hold in analysis mode. Minimum Calibration Time Lower limit setting for the timer which is used during calibration. Contact INFICON AB to have the code sent to you. See the web address under section-Info. Battery Mode Selection of battery power.

  • Page 32: Probe Control Port

    Changing the Probe After attaching a probe the Sensistor ISH2000 needs to stabilize, and the green LED should blink. If it does not, then there is a fault in the cable or the hydrogen sensor inside the probe is faulty.
  • Page 33 Hydrogen leak detector Sensistor ISH2000 Operating Instructions Probe Control Port Connector The control port connector is a 25-pin female D-sub. Refer to Table 8-2 for the pin configuration. Table 8-2. Pin configuration. Type Signal name IN_0 IN_1 IN_2 IN_3 IN_4...
  • Page 34 Output signals switch with a cycle time of 20 ms (0.02 s). This is the cycle Example: time of the APC system. Note: Not valid for battery operated version of Sensistor ISH2000. After power on Fig 8-3. Status signals after power on. Power off...

  • Page 35: Printer Port

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions 8.14 Printer port The Sensistor ISH2000 is equipped with a serial printer port. This is the 9-pin D-type connector. It is used for printer connection, RS232 commands and APC driver installation. NOTICE! Always switch power off before disconnecting or connecting any cable.
  • Page 36 Parity None Flow control None Due to the large variety of printers available on the market, INFICON does not Note: take responsibility for the operation of a particular type of printer. Printed data The detector can print the following information: Date and Time for Power on of detector.
  • Page 37 Hydrogen leak detector Sensistor ISH2000 Operating Instructions Setting Value Data bits Stop bits Parity None Flow control None The data format for Analysis data output consists of nine ASCII characters. Seven characters show the value in engineering format (See “Engineering format” on page 17), one character shows the result of the test, and one character shows line feed (LF).
  • Page 38 K = Calibration request Starts calibration if the Sensistor ISH2000 has an active probe driver installed. Sensistor ISH2000 answers with a "K" if an active driver containing a calibration routine was found and "F" if the calibration APC sequence not found. Calibration doesn’t start if Purge level is reached.
  • Page 39 Returns nothing. Z = Shift State to "Detection Mode" Returns nothing. Y = Shift State to “Combined Mode” Return nothing. Supported parameters Table 8-12. The following parameters can be downloaded to Sensistor ISH2000 in Analysis Detection mode Parameter Header Data Reject Level n.nnE+nn...

  • Page 40: Sensistor Ish2000P Installation

    • If you send a non existing header you will not receive anything. • If the data could not be converted in the Sensistor ISH2000 you will receive the string “CoEr”, (Conversion Error). Remember to use capitals for the header.
  • Page 41 • Allow an extra 20 mm (0.8 inch) on left and right side for mounting brackets. • Depth of open space in panel is at least 15 cm (6 inches) for Sensistor ISH2000 to fit. Installation process Table 8-13. Install the detector as follows...

  • Page 42: Default Parameters

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions 8.16 Default parameters Table 8-14. Range and default settings of all Sensistor ISH2000 parameters. Parameter Range Default Analysis Unit Several Choices APC Time A 0.0 - 6000.0 s 10.0 s APC Time B 0.0 - 6000.0 s...
  • Page 43 Hydrogen leak detector Sensistor ISH2000 Operating Instructions Parameter Range Default Probe Button Several Choices No Function Probe Lamp ON/OFF Probe Type Several Choices Hand Probe Reject Indicator ON/OFF Purge Level 1.00E37 - 1.00E+37 1.00E+02 = 100 Reference Unit Several choices Reference Value 1.00E- 37 - 1.00E+37...

  • Page 44: Trouble-Shooting

    Operating Instructions Trouble-shooting In case of trouble using the Sensistor ISH2000, try to solve the problem with these simple trouble-shooting guidelines. If the measures described below do not result in a functioning instrument, send or hand in the instrument to an authorised service workshop for repair.

  • Page 45: Sensistor Ish2000 Specifications

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions 10 Sensistor ISH2000 specifications Table 10-1. Power supply specifications. Sensistor Sensistor Sensistor Power ISH2000 ISH2000C ISH2000P AC mains voltage 100-240 V 50/ 100-240 V 60Hz. 50/60 Hz AC mains current Typically 1 A (2 A...
  • Page 46 Hydrogen leak detector Sensistor ISH2000 Operating Instructions Sensistor Sensistor Sensistor Input/output ISH2000 ISH2000C ISH2000P Output high 22-24 VDC > (Supply voltage - 2.5 VDC) Output low < 1.5 VDC < 1.5 VDC Serial communication 9-pol D-sub male 9-pol D-sub male...

  • Page 47: Spare Parts And Accessories

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions 11 Spare parts and accessories There are a variety of spare parts and accessories to the Sensistor ISH2000. In the following table some of these are presented, for a complete list of all spare parts www.inficon.com and accessories please visit Table 11-1.

  • Page 48: Support By Inficon

    Customer Support Representative. You must obtain a Return Material Authorization (RMA) number from the Customer Support Representative. If you deliver a package to INFICON without an RMA number, your package will be held and you will be contacted. This will result in delays in servicing your instrument.

  • Page 49: Declaration Of Conformity

    Hydrogen leak detector Sensistor ISH2000 Operating Instructions 13 Declaration of conformity Declaration of Conformity Manufacturer INFICON AB Westmansgatan 49 SE-582 16 Linköping Sweden Phone: +46 (0)13-355900 Fax: +46 (0)13-355901 Product Hydrogen Leak Detector Brand Names ISH 2000 (Table top model)

  • Page 50: Recycling

    If you wish you can return this INFICON AB product to the manufacturer for recovery. The manufacturer has the right to refuse taking back products that are inadequately packaged and thereby presents safety and/or health risks to the staff.
  • Page 51 INFICON AB, Box 76, SE-581 02 Linköping, Sweden Phone: +46 (0) 13 35 59 00 Fax: +46 (0) 13 35 59 01 www.inficon.com E-mail: reach.sweden@inficon.com...
