Io Device: F75111 Vb6 Under Windows - Lex Computech 2I385PW Manual

1-3 IO Device: F75111 VB6 under Windows

The Sample code source you can download from
Source file: 75111_VB_v1.2.rar
Binary file: 75111_VB_Src1.2.rar
USERNAME & PASSWORD: sf

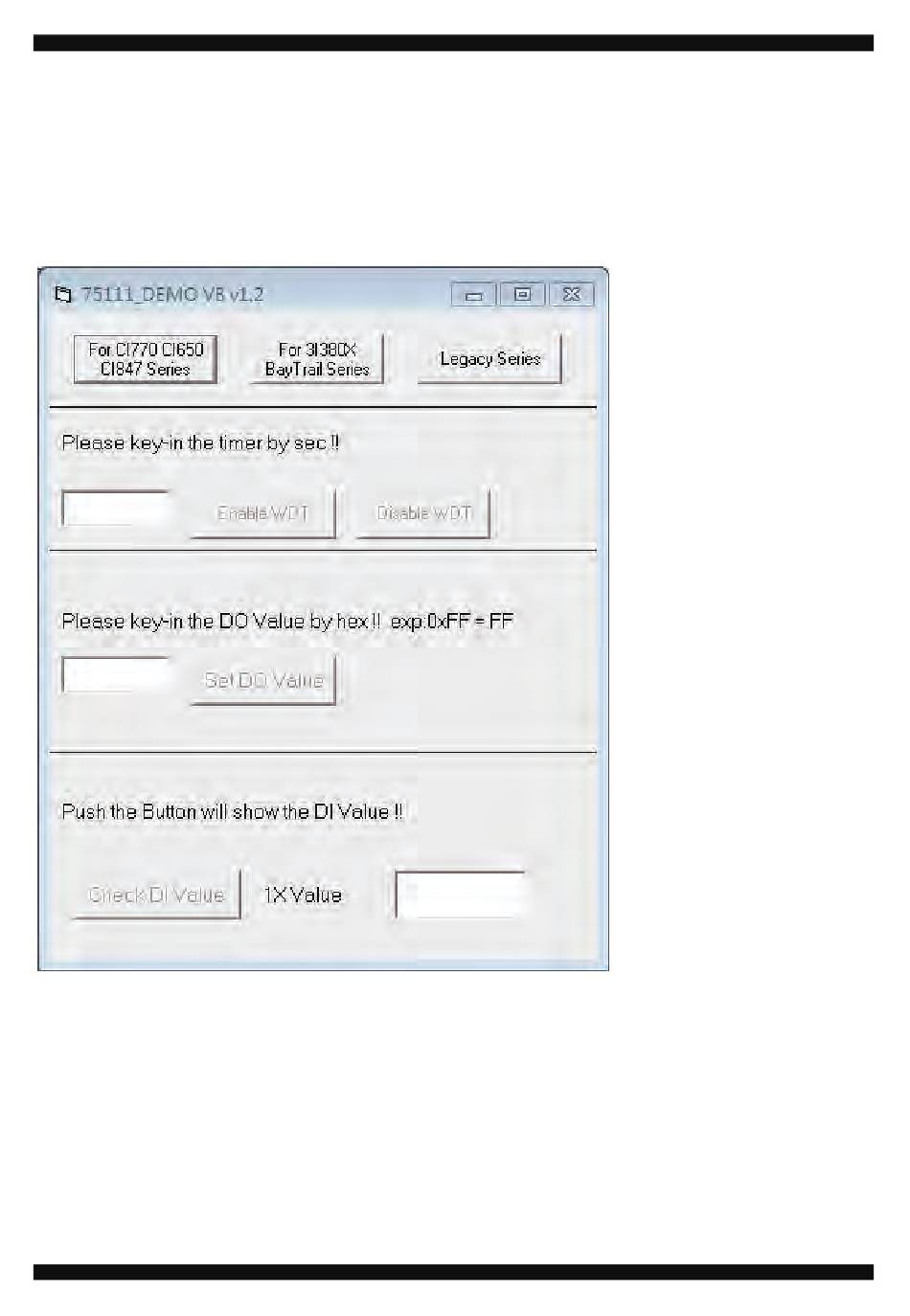

How to use this Demo Application
● A Function - Choose your motherboard model
● B Function - Enable WDT timer ,Key-in the value by seconds then system will reboot after
value which you key-in in left text box !!
● C Function - Disable WDT timer ,Push down the button then WDT timer value will be clear !!
● D Function - Set DO Value ,Key-in the DO value by hex then push the button !!
● E Function - Check DI Value ,The right side two text box will display DI 1X & 2X Value when
you push down the button!!
http://tprd.info/lexwiki/index.php/IO_Device:F75111_VB6
84
