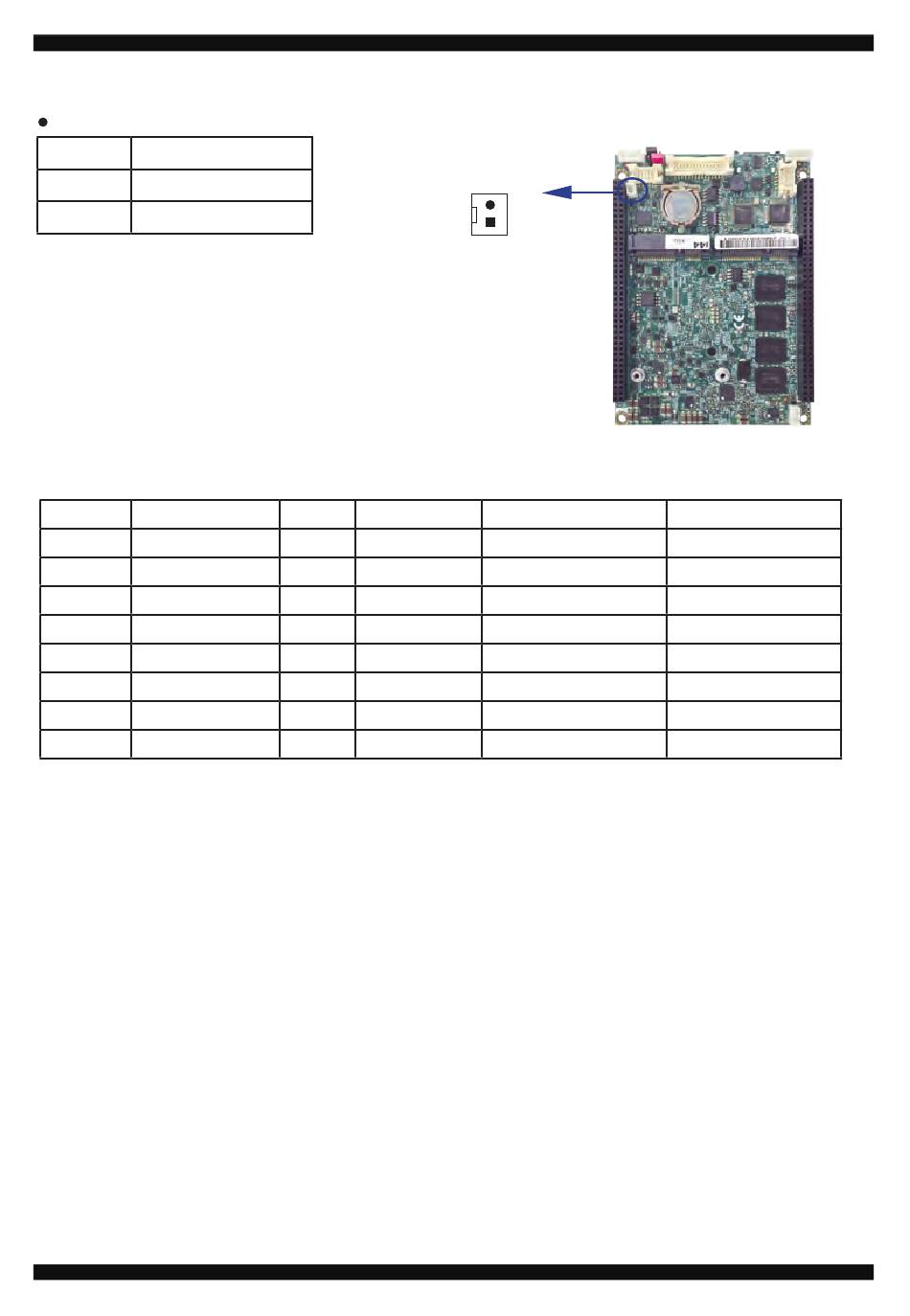

3-11 Second Li 3V battery

CBT1: Second Li 3V battery (1.25mm) Wafer
PIN NO. Description
1 Battery GND
2 Battery VCC
3-12 Connector wafer of Compatible Brand and part number list
Location CKTS
CBT1 1X2 2Pin
CIO1 2x5 10Pin
CPP1 1x6 6Pin
CALR1 1x4 4Pin
CPO1 1x6 5Pin
CT1 2x5 10Pin
CO1 1x4 4Pin
LVDS1 2x15 30Pin
PITCH Brand Name
1.25mm MOLEX
1.25mm HIROSE
1.25mm MOLEX
1.25mm MOLEX
1.25mm MOLEX
1.25mm HIROSE
1.25mm MOLEX
1.25mm HIROSE
CBT1
pin1
Mating connector
53047-0210
DF13-10DS-1.25C
53047-0610
53047-0410
53047-0610
DF13-10DS-1.25C
53047-0410
DF13-30DS-1.25C
33
Cable housing
51021-0200
DF13-10DP-1.25V
51021-0600
51021-0400
51021-0600
DF13-10DP-1.25V
51021-0400
DF13-30DP-1.25V
