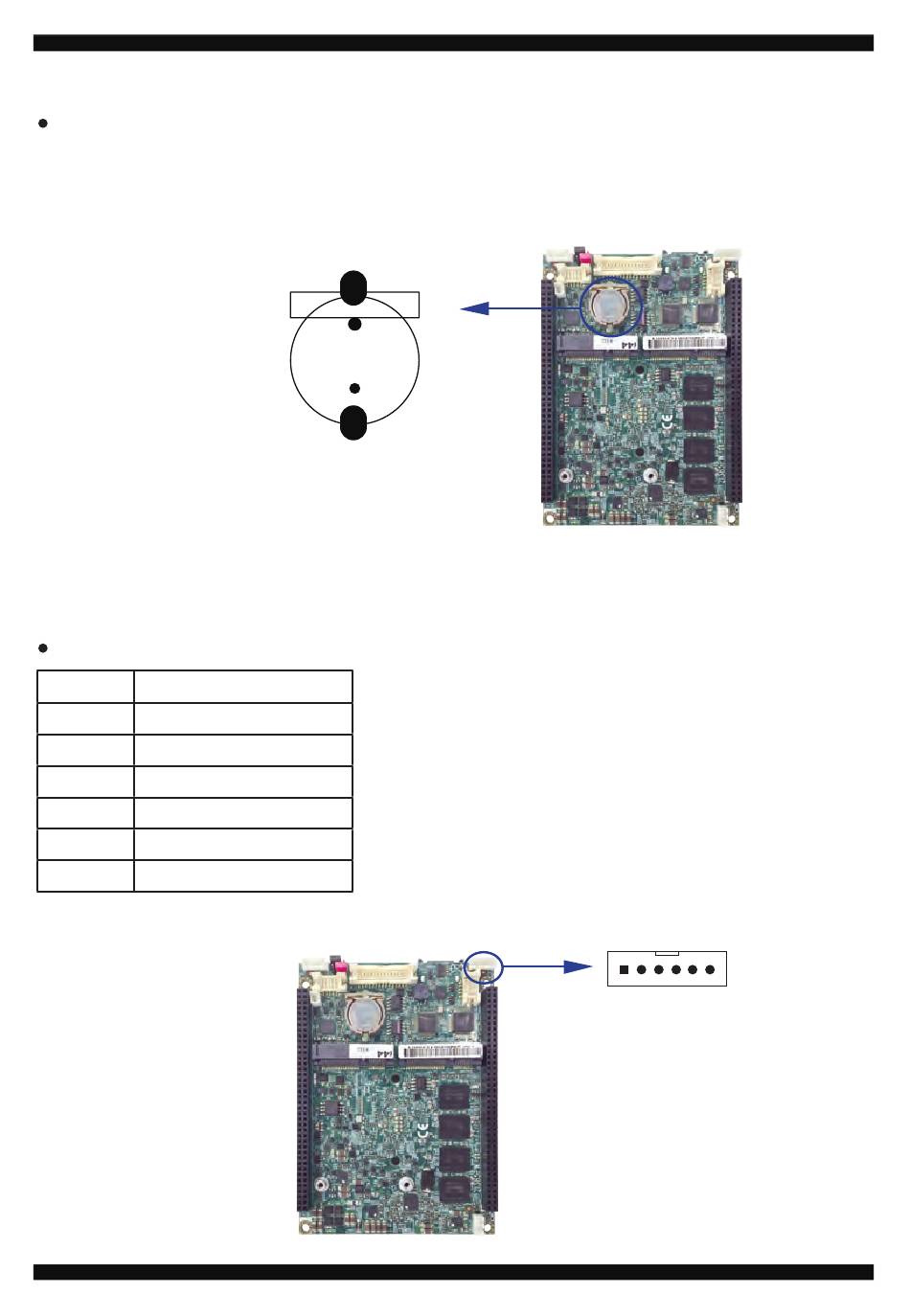

3-2 CMOS Battery connector
BAT1: 3V Battery hold 2pin
BAT1: Battery use Li 3V / 40mAh (CR1220)
Note: 1. When board without Adaptor plug in, this board power RTC consumption about 2.7uA
2. If adaptor always plug in RTC power consumption about 0.1uA
3-3 DC +12V/+5V Voltage Power Output (4pin 2.0mm Wafer)
CPO1: +12V/+5V DC voltage output
PIN NO. Description
1 +5V
2 +5V
3 GND
4 GND
5 +12V*
6 +12V*
* Note: Attention! Check Device Power in spec
BAT1
pin1
27
CPO1
