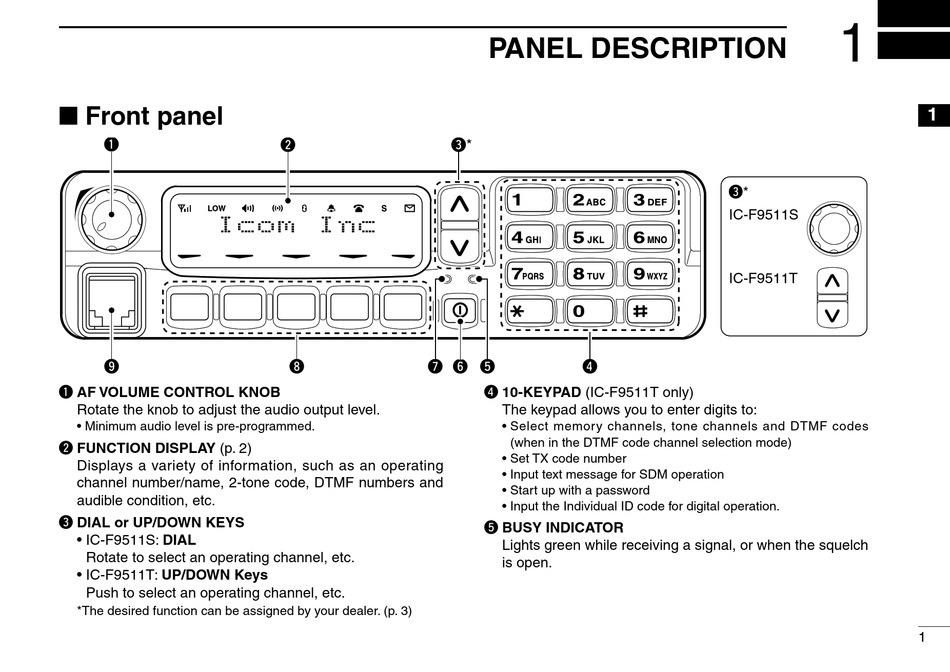

Panel Description; Front Panel - Icom IC-F9511S Instruction Manual

n Front panel
q
I c o m
o
q AF VOLUME CONTROL KNOB
Rotate the knob to adjust the audio output level.
• Minimum audio level is pre-programmed.
w FUNCTION DISPLAY (p. 2)
D isplays a variety of information, such as an operating
channel number/name, 2-tone code, DTMF numbers and
audible condition, etc.
e DIAL or UP/DOWN KEYS
• IC-F9511S: DIAL
Rotate to select an operating channel, etc.
• IC-F9511T: UP/DOWN Keys
Push to select an operating channel, etc.
*The desired function can be assigned by your dealer. (p. 3)
w e*
I n c
i u y

PANEL DESCRIPTION

t r
r 10-KEYPAD (IC-F9511T only)
T he keypad allows you to enter digits to:
• Select memory channels, tone channels and DTMF codes
(when in the DTMF code channel selection mode)
• Set TX code number
• Input text message for SDM operation
• Start up with a password
• Input the Individual ID code for digital operation.
t BUSY INDICATOR
L ights green while receiving a signal, or when the squelch
is open.
1
e*
IC-F9511S
IC-F9511T
1
1
