Explorer III Wood Stove
To minimize the effects of negative air pressure:
• Install optional outside air kit with the intake facing
prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are
not located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a "sealed can" design
• Attic hatches weather stripped or sealed
ITEM PART NUMBER
• Attic mounted duct work and air handler joints and
seams taped or sealed
• Basement installations should be avoided
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided
by, the following actions:
• Installation and use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over fire - If appliance or chimney connector
glows, you are over firing.
Any such action that may cause a fire hazard.
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
Reciprocating saw
Framing material
7038-200_R4
Pliers
High temp caulking material
Hammer
DATE:
Gloves
Phillips screwdriver
Framing square
1/2-3/4 in. length, #6 or #8 self-drilling screws
E. Inspection of Appliance and Components
• Remove appliance and components from packaging
and inspect for damage.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benefit.
(3) PLACE DEC: ± 0.005
INSIDE APEX - DIMS ENCLOSED BY AN OVAL ARE CRITICAL DIMENSIONS
1 May, 2019
SCALE: MATERIAL:
6
19 January, 2018
SHEET:
PART NAME QTY
WARNING
Flat blade screwdriver
Electric drill and bits
Plumb line
Safety glasses
Level
Tape measure
Misc. screws and nails
7/16 socket or wrench
ANGLE: ± 2° FRACTION: ± 1/16
REV:
PART NUMBER:

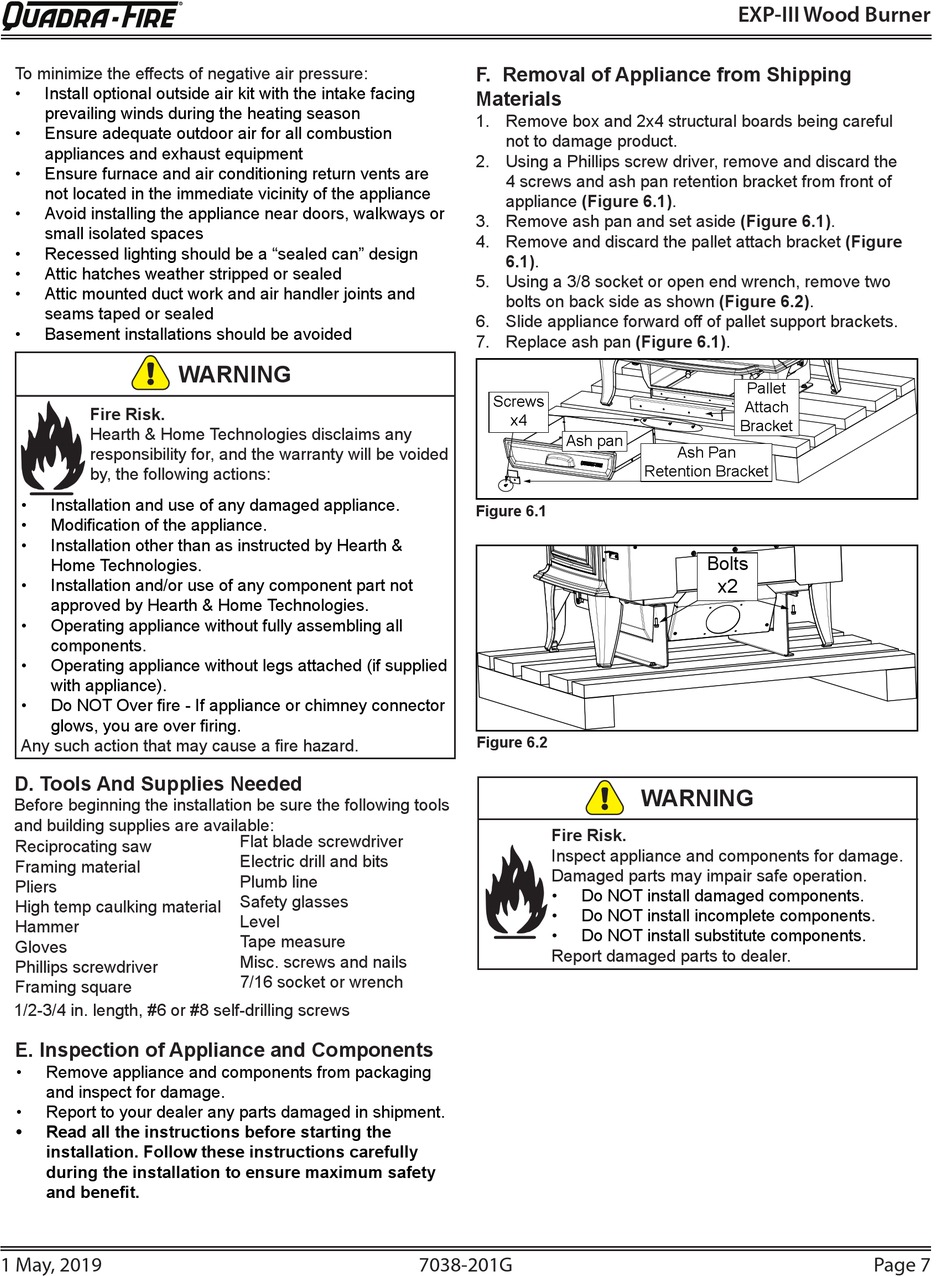

F. Removal of Appliance from Shipping
Materials
1. Remove box and 2x4 structural boards being careful
not to damage product.
2. Using a Phillips screw driver, remove and discard the
4 screws and ash pan retention bracket from front of
appliance (Figure 6.1).
3. Remove ash pan and set aside (Figure 6.1).
4. Remove and discard the pallet attach bracket (Figure
6.1).
5. Using a 3/8 socket or open end wrench, remove two
bolts on back side as shown (Figure 6.2).
6. Slide appliance forward off of pallet support brackets.
7. Replace ash pan (Figure 6.1).
Screws
x4
Ash pan
Figure 6.1
Figure 6.2
Fire Risk.
Inspect appliance and components for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
7038-201G
7060-228K
EXP-III Wood Burner
Pallet
Attach
Bracket
Ash Pan
Retention Bracket
Bolts
x2
WARNING
August 13, 2018
Page 7
