5700 Step Top ACC Wood Burner

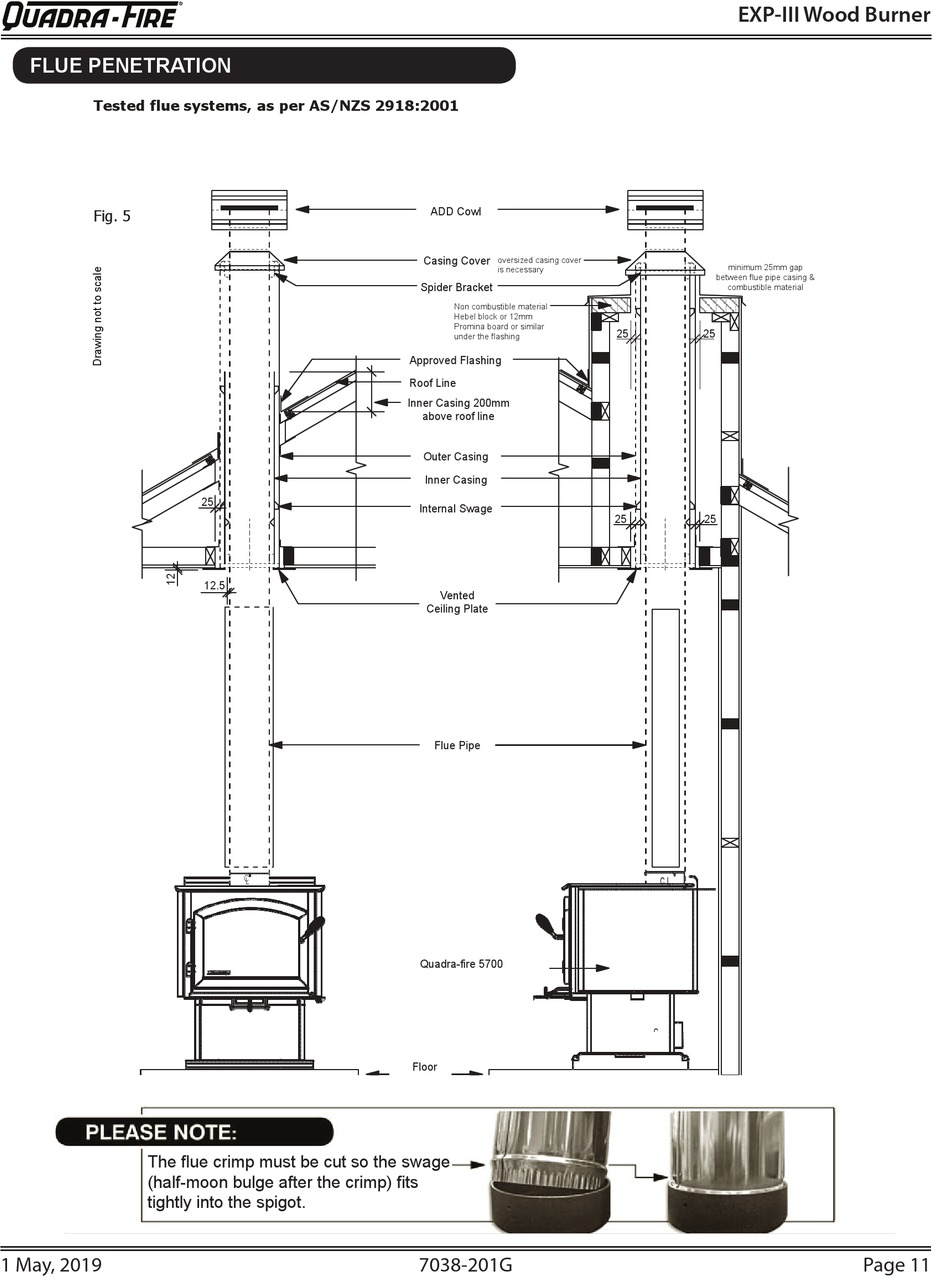

FLUE PENETRATION
Tested flue systems, as per AS/NZS 2918:2001
Fig. 5
ITEM PART NUMBER
7038-200_R4
DATE:
The flue crimp must be cut so the swage
(half-moon bulge after the crimp) fits
tightly into the spigot.
(3) PLACE DEC: ± 0.005
INSIDE APEX - DIMS ENCLOSED BY AN OVAL ARE CRITICAL DIMENSIONS
Page 8
1 May, 2019
SCALE: MATERIAL:
19 January, 2018
SHEET:
PART NAME QTY
25
12.5
C L
ANGLE: ± 2° FRACTION: ± 1/16
REV:
PART NUMBER:
ADD Cowl
Casing Cover
oversized casing cover
is necessary
Spider Bracket
Non combustible material
Hebel block or 12mm
Promina board or similar
under the flashing
Approved Flashing
Roof Line
Inner Casing 200mm
above roof line
Outer Casing
Inner Casing
Internal Swage
V ented
Ceiling Plate
Flue Pipe
Quadra-fire 5700
Floor
Protector
7038-201G
7038-201G
EXP-III Wood Burner
minimum 25mm gap
between flue pipe casing &
combustible material
25 25
25 25
C L
C
L
19 January, 2018
Page 11
