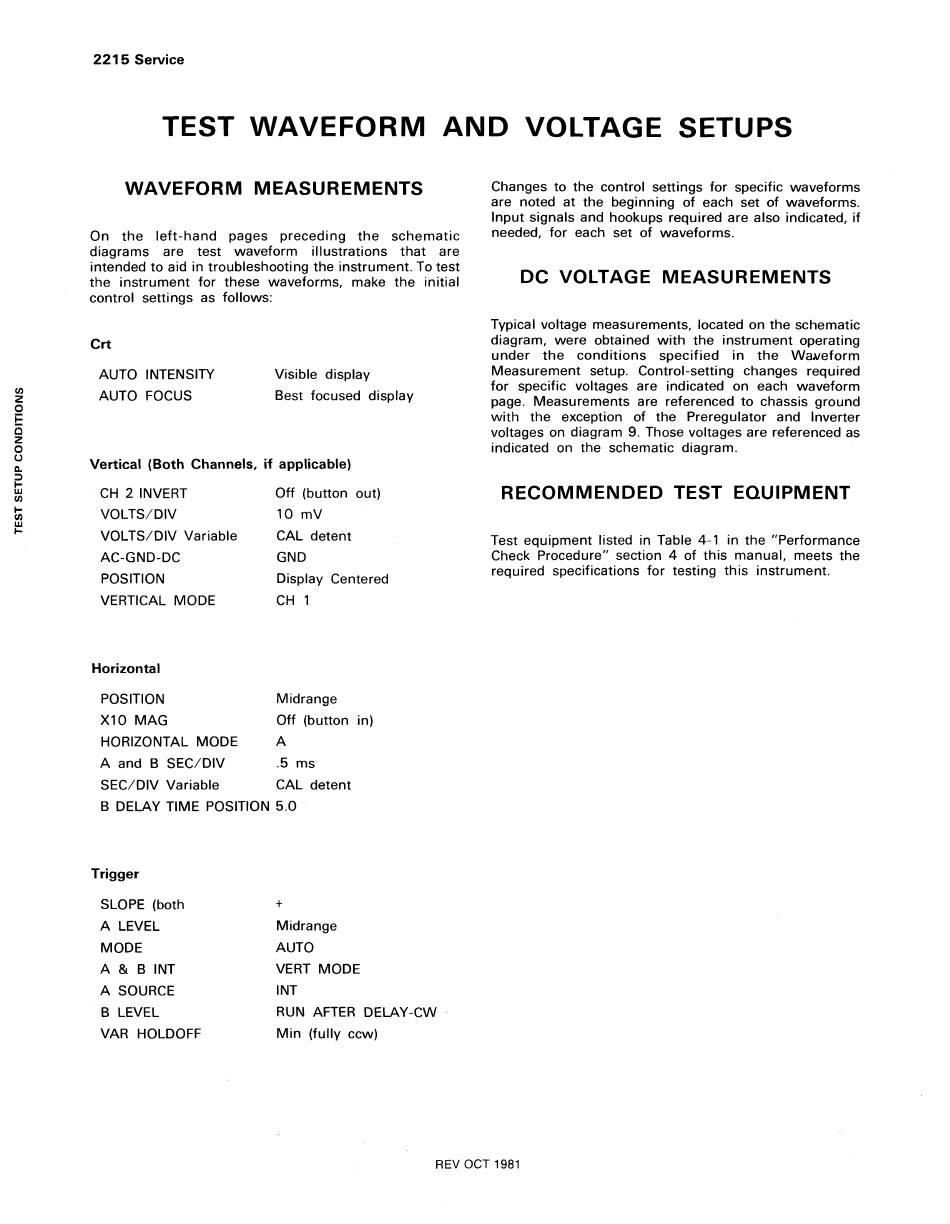

2 2 1 5 Service
TEST WAVEFORM AND VOLTAGE SETUPS
WAVEFORM MEASUREMENTS
On the left-hand pages preceding the schematic
diagrams are test waveform illustrations that are
intended to aid in troubleshooting the instrument. To test
the instrument for these waveforms, make the initial
control settings as follows:
Crt
AUTO INTENSITY
AUTO FOCUS
Vertical (Both Channels, if applicable)
CH 2 INVERT
VOLTS/DIV
VOLTS/DIV Variable
AC-GND-DC
POSITION
VERTICAL MODE
Horizontal
POSITION
X I0 MAG
HORIZONTAL MODE
A and B SEC/DIV
SEC/DIV Variable
B DELAY TIME POSITION 5.0
Trigger
SLOPE (both
A LEVEL
MODE
A & B INT
A SOURCE
B LEVEL
VAR HOLDOFF
Visible display
Best focused display
Off (button out)
10 mV
CAL detent
GND
Display Centered
CH 1
Midrange
Off (button in)
A
.5 ms
CAL detent
Midrange
AUTO
VERT MODE
INT
RUN AFTER DELAY-CW
Min (fully ccw)
REV OCT 1981
Changes to the control settings for specific waveforms
are noted at the beginning of each set of waveforms.
Input signals and hookups required are also indicated, if
needed, for each set of waveforms.
DC VOLTAGE MEASUREMENTS
Typical voltage measurements, located on the schematic
diagram, were obtained with the instrument operating
under the conditions specified in the Waveform
Measurement setup. Control-setting changes required
for specific voltages are indicated on each waveform
page. Measurements are referenced to chassis ground
with the exception of the Preregulator and Inverter
voltages on diagram 9. Those voltages are referenced as
indicated on the schematic diagram.
RECOMMENDED TEST EQUIPMENT
Test equipment listed in Table 4-1 in the "Performance
Check Procedure" section 4 of this manual, meets the
required specifications for testing this instrument.
