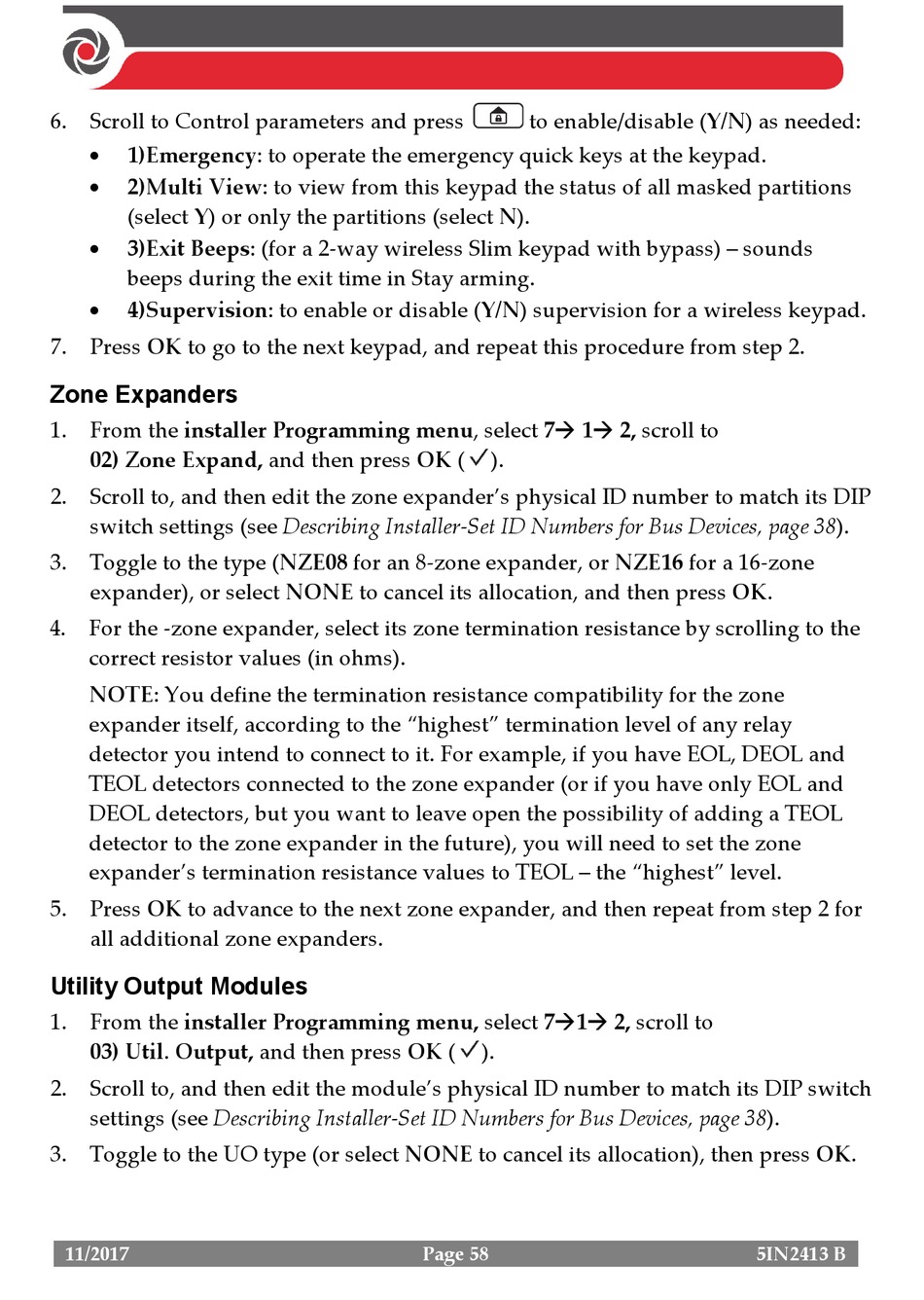

6. Scroll to Control parameters and press
1)Emergency: to operate the emergency quick keys at the keypad.
2)Multi View: to view from this keypad the status of all masked partitions
(select Y) or only the partitions (select N).
3)Exit Beeps: (for a 2-way wireless Slim keypad with bypass) – sounds
beeps during the exit time in Stay arming.
4)Supervision: to enable or disable (Y/N) supervision for a wireless keypad.
7. Press OK to go to the next keypad, and repeat this procedure from step 2.

Zone Expanders

1. From the installer Programming menu, select 7 1 2, scroll to
02) Zone Expand, and then press OK (
2. Scroll to, and then edit the zone expander's physical ID number to match its DIP
switch settings (see Describing Installer-Set ID Numbers for Bus Devices, page 38).
3. Toggle to the type (NZE08 for an 8-zone expander, or NZE16 for a 16-zone
expander), or select NONE to cancel its allocation, and then press OK.
4. For the -zone expander, select its zone termination resistance by scrolling to the
correct resistor values (in ohms).
NOTE: You define the termination resistance compatibility for the zone
expander itself, according to the "highest" termination level of any relay
detector you intend to connect to it. For example, if you have EOL, DEOL and
TEOL detectors connected to the zone expander (or if you have only EOL and
DEOL detectors, but you want to leave open the possibility of adding a TEOL
detector to the zone expander in the future), you will need to set the zone
expander's termination resistance values to TEOL – the "highest" level.
5. Press OK to advance to the next zone expander, and then repeat from step 2 for
all additional zone expanders.

Utility Output Modules

1. From the installer Programming menu, select 71 2, scroll to
03) Util. Output, and then press OK (
2. Scroll to, and then edit the module's physical ID number to match its DIP switch
settings (see Describing Installer-Set ID Numbers for Bus Devices, page 38).
3. Toggle to the UO type (or select NONE to cancel its allocation), then press OK.
11/2017
to enable/disable (Y/N) as needed:
).
).
Page 58
5IN2413 B
