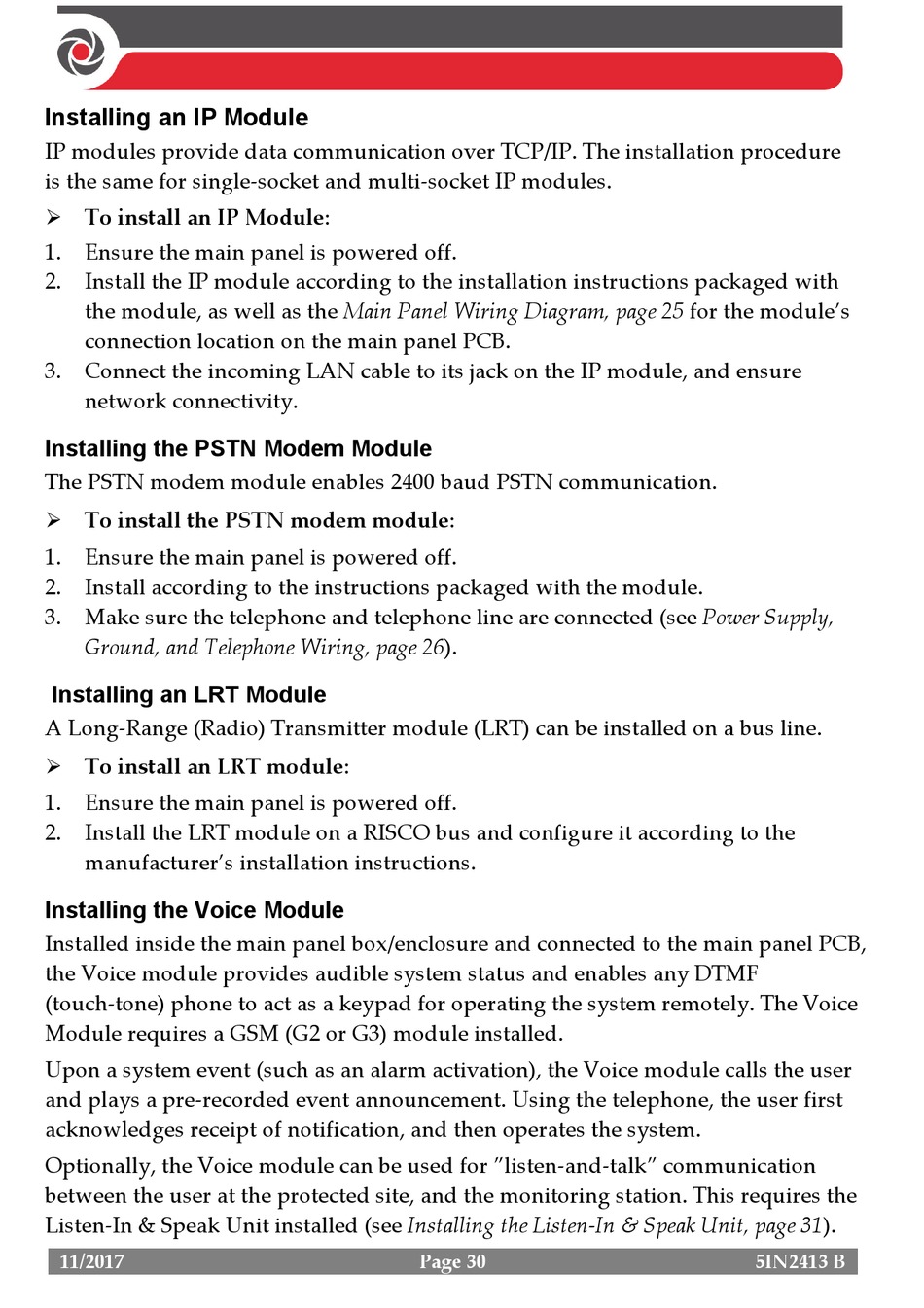

Installing an IP Module

IP modules provide data communication over TCP/IP. The installation procedure
is the same for single-socket and multi-socket IP modules.
 To install an IP Module:
1. Ensure the main panel is powered off.
2. Install the IP module according to the installation instructions packaged with
the module, as well as the Main Panel Wiring Diagram, page 25 for the module's
connection location on the main panel PCB.
3. Connect the incoming LAN cable to its jack on the IP module, and ensure
network connectivity.

Installing the PSTN Modem Module

The PSTN modem module enables 2400 baud PSTN communication.
 To install the PSTN modem module:
1. Ensure the main panel is powered off.
2. Install according to the instructions packaged with the module.
3. Make sure the telephone and telephone line are connected (see Power Supply,
Ground, and Telephone Wiring, page 26).

Installing an LRT Module

A Long-Range (Radio) Transmitter module (LRT) can be installed on a bus line.
 To install an LRT module:
1. Ensure the main panel is powered off.
2. Install the LRT module on a RISCO bus and configure it according to the
manufacturer's installation instructions.

Installing the Voice Module

Installed inside the main panel box/enclosure and connected to the main panel PCB,
the Voice module provides audible system status and enables any DTMF
(touch-tone) phone to act as a keypad for operating the system remotely. The Voice
Module requires a GSM (G2 or G3) module installed.
Upon a system event (such as an alarm activation), the Voice module calls the user
and plays a pre-recorded event announcement. Using the telephone, the user first
acknowledges receipt of notification, and then operates the system.
Optionally, the Voice module can be used for "listen-and-talk" communication
between the user at the protected site, and the monitoring station. This requires the
Listen-In & Speak Unit installed (see Installing the Listen-In & Speak Unit, page 31).
11/2017 Page 30 5IN2413 B
