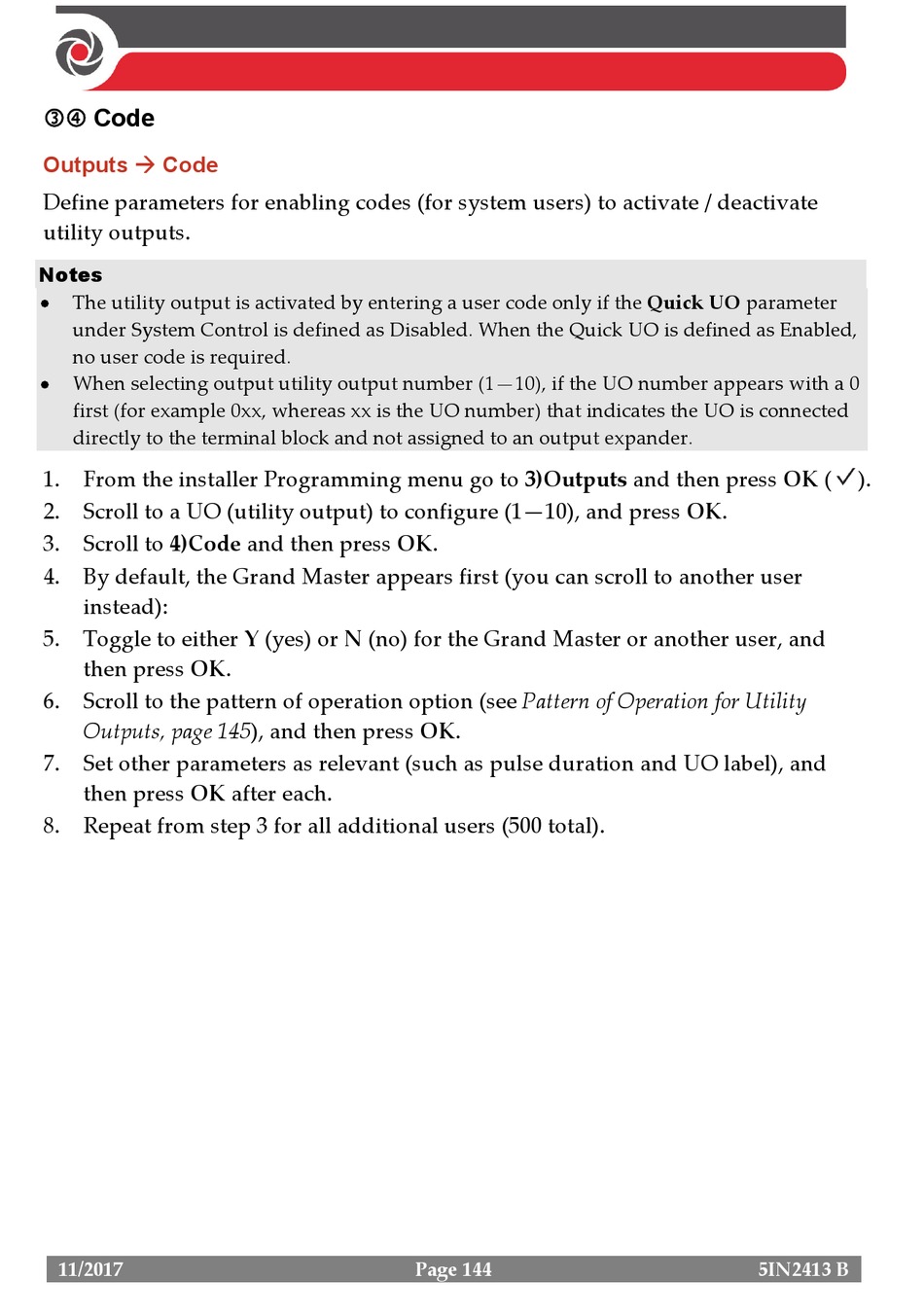

Outputs  Code
Define parameters for enabling codes (for system users) to activate / deactivate
utility outputs.
Notes
•
The utility output is activated by entering a user code only if the Quick UO parameter
under System Control is defined as Disabled. When the Quick UO is defined as Enabled,
no user code is required.
•
When selecting output utility output number (1—10), if the UO number appears with a 0
first (for example 0xx, whereas xx is the UO number) that indicates the UO is connected
directly to the terminal block and not assigned to an output expander.
1. From the installer Programming menu go to 3)Outputs and then press OK (
2. Scroll to a UO (utility output) to configure (1—10), and press OK.
3. Scroll to 4)Code and then press OK.
4. By default, the Grand Master appears first (you can scroll to another user
instead):
5. Toggle to either Y (yes) or N (no) for the Grand Master or another user, and
then press OK.
6. Scroll to the pattern of operation option (see Pattern of Operation for Utility
Outputs, page 145), and then press OK.
7. Set other parameters as relevant (such as pulse duration and UO label), and
then press OK after each.
8. Repeat from step 3 for all additional users (500 total).
