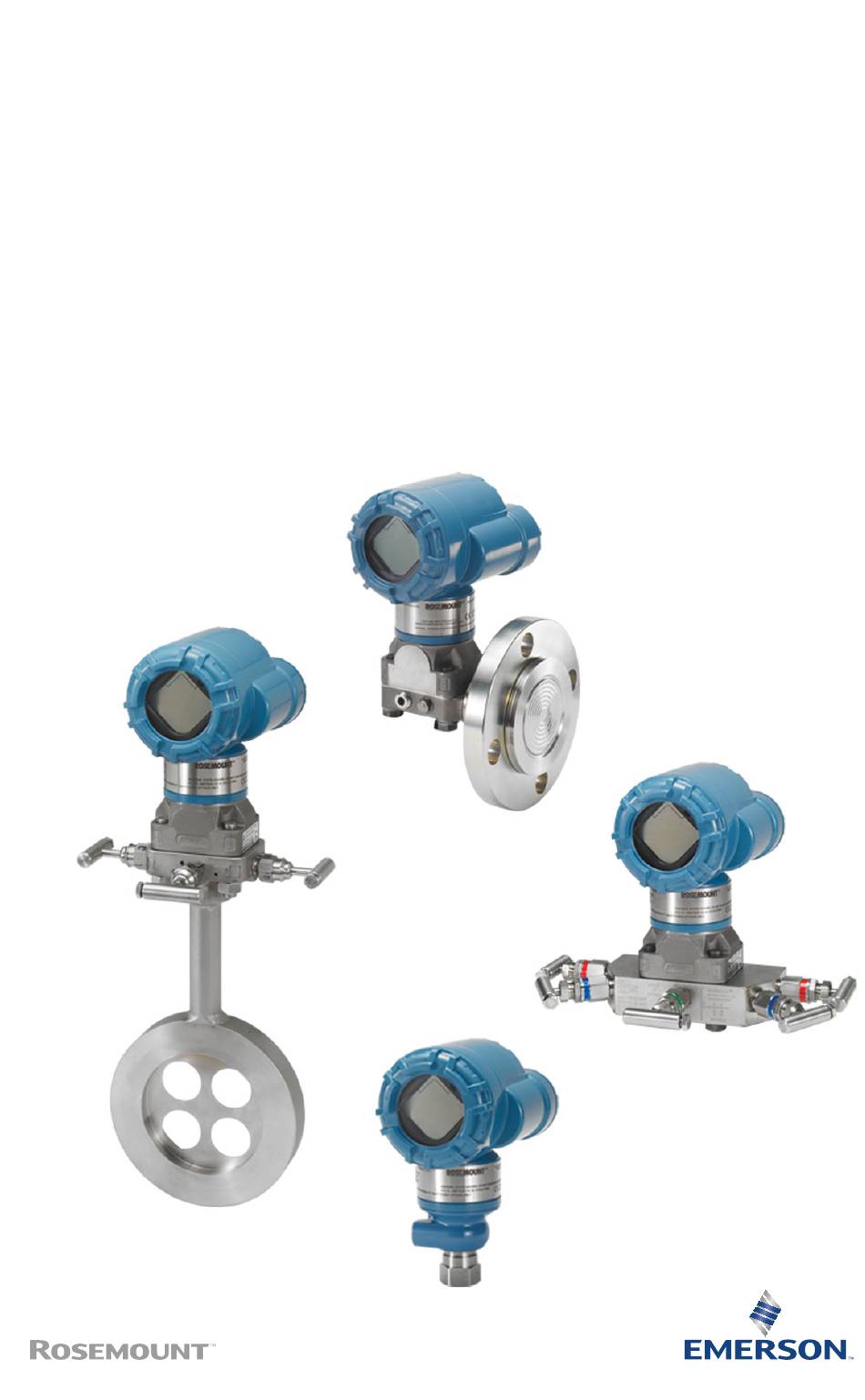

- Page 1 Quick Start Guide 00825-0100-4100, Rev FB November 2024 Rosemount 3051 Pressure ™ Transmitter and Rosemount 3051CF DP Flow Meters ® with WirelessHART Protocol...
- Page 2 This manual is also available electronically on Emerson.com/Global. Shipping considerations for wireless products: Emerson shipped the transmitter to you without the power module installed. Remove the power module prior to shipping the transmitter. Each power module contains one D size primary lithium-thionyl chloride battery. Primary...
- Page 3 November 2024 Quick Start Guide Contents Wireless considerations......................5 Transmitter installation....................... 6 Troubleshooting.........................16 Product certifications........................ 17 www.Emerson.com...
- Page 4 Quick Start Guide November 2024 www.Emerson.com...
-
Page 5: Wireless Considerations
Power up sequence The power module should not be installed on any wireless device until the Emerson Wireless Gateway (Gateway) is installed and functioning properly. This transmitter uses the green power module (order model number 701PGNKF). Wireless devices should also be powered up in order of proximity from the Gateway, beginning with the closest. -
Page 6: Transmitter Installation
+185 to +250 °F (+85 to +121 °C) +158 to +60 °F (+70 to +16 °C) Maximum ambient temperature is reduced by 1.5 degree for 1 degree temperature rise in the process connection temperature beyond +185 °F (+85 °C). www.Emerson.com... -
Page 7: Mounting Options
November 2024 Quick Start Guide 2.2 Mounting options Figure 2-1: Panel Mount Coplanar Flange 5/16 x 1½ panel bolts are customer supplied. Figure 2-2: Pipe Mount Coplanar Flange www.Emerson.com... - Page 8 Quick Start Guide November 2024 Figure 2-3: Panel Mount Traditional Flange Figure 2-4: Pipe Mount Traditional Flange Figure 2-5: Panel Mount Rosemount 3051T www.Emerson.com...
- Page 9 3. Mount the transmitter so the drain/vent valves are oriented upward. Figure 2-7: Mounting the Transmitter in Liquid Applications In-line 2.2.2 Mount the transmitter in gas applications Procedure 1. Place taps in the top or side of the line. 2. Mount beside or above the taps. www.Emerson.com...
- Page 10 Quick Start Guide November 2024 Figure 2-8: Mounting the Transmitter in Gas Applications In-line www.Emerson.com...
- Page 11 Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-10 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
- Page 12 2-2. If bolt material is not shown in Table 2-2, contact a local Emerson representative for more information. Carbon steel bolts do not require lubrication, and the stainless steel bolts are coated with a lubricant to ease installation. However, do not apply additional lubricant when installing either type of bolt.
- Page 13 Whenever the flanges or adapters are removed, visually inspect the O-rings. Replace them if there are any signs of damage, such as nicks or cuts. If you replace the O-rings, re-torque the flange bolts and alignment screws after installation to compensate for seating of the PTFE O-ring. www.Emerson.com...
- Page 14 The transmitter comes with an autoclave connection designed for pressure applications. To connect the transmitter to your process: Procedure 1. Apply a process-compatible lubricant to the gland nut threads. 2. Slip the gland nut onto the tube; then thread the collar onto the tube end. www.Emerson.com...
-
Page 15: Consider Housing Rotation
3. If the desired location cannot be achieved due to thread limit, rotate the housing counterclockwise to the desired location (up to 360° from thread limit). 4. Retighten the housing rotation set screw to no more than 7 in-lb when it reaches the desired location. www.Emerson.com... -
Page 16: Troubleshooting
If the device has not joined to the network after power up, verify the correct configuration of the network ID and join key. Verify that active advertising has been enabled on the Emerson Wireless Gateway. The network ID and join key in the device must match the network ID and join key of the Gateway. -
Page 17: Product Certifications
RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage. - Page 18 T4 (-40 ° F [-40 °C] ≤ T ≤ 158 ° F [70 °C]) when installed per Rosemount drawing 03031-1062; Type 4X/IP66/IP68 Special Conditions for Safe Use (X): 1. The Rosemount 3051 Wireless Pressure Transmitter shall only be used with the 701PGNKF Rosemount SmartPower Battery ™...
- Page 19 2. The Emerson 701PGNKF Power Module may be replaced in a hazardous area. The power module has a surface resistivity greater than 1 GΩ and must be properly installed in the wireless device enclosure.
- Page 20 4.5.8 EAC (Belarus, Kazakhstan, Kyrgyzstan, Armenia) IM Technical Regulation Customs Union (EAC) Intrinsic Safety EAЭC RU C-US.EX01.B.00176/20 Certificate 0Ex ia IIC T4 Ga X; (–60 °C ≤ T ≤ +70 °C) Markings Special Condition for Safe Use (X): See certificate for special conditions. www.Emerson.com...
- Page 21 AUT-IMS; Pressure transmitter type 3051 cannot be installed on diesel engines SDN Det Norske Veritas (DNV) Type Approval TAA000004F Certificate DNV GL Rules for Classification - Ships and offshore Intended Use units Application: Location classes Temperature Humidity Vibration Enclosure www.Emerson.com...
- Page 22 WARNING Additional warnings The plastic enclosure may present a potential electrostatic ignition hazard. RFID tag has limitations in ambient temperature and zone installation areas (Zones 1 & 21) as compared to the gauge. www.Emerson.com...
-
Page 23: Declaration Of Conformity
November 2024 Quick Start Guide 4.6 Declaration of Conformity www.Emerson.com... - Page 24 Quick Start Guide November 2024 www.Emerson.com...
- Page 25 November 2024 Quick Start Guide www.Emerson.com...
- Page 26 Quick Start Guide November 2024 www.Emerson.com...
- Page 27 November 2024 Quick Start Guide Figure 4-1: China ROHS www.Emerson.com...
- Page 28 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
