Setra Systems Model 730 Operating Instructions Manual page 5

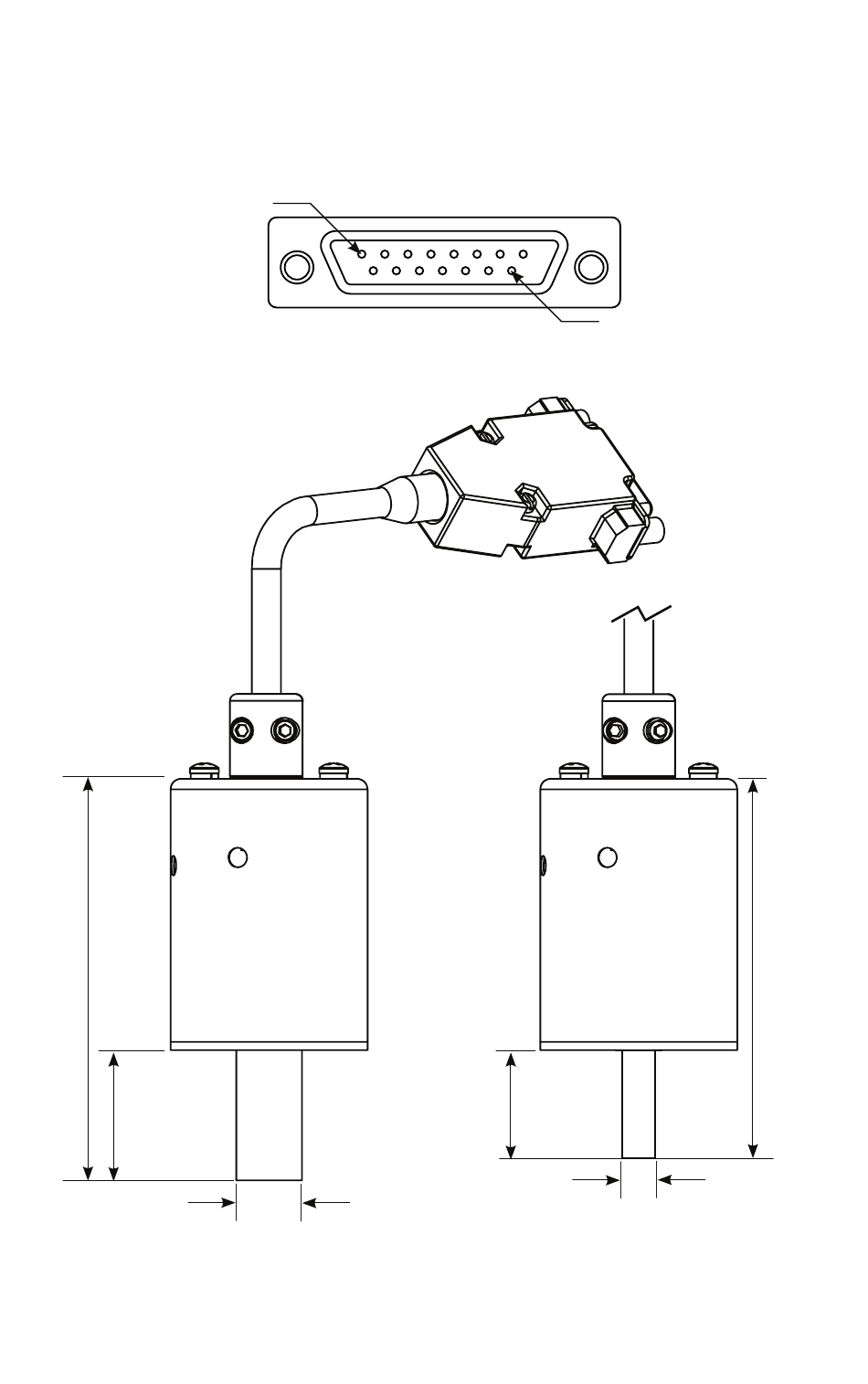

Figure 3: Outline drawing of Model 730 with 6" cable and 15-pin D-sub and 0.5"
and 0.25" OD Tube.
in.
[mm]
Pin 1
Pin 15
3.0
3.24
[76]
[82]
0.75
0.99
[19]
[25]
0.25
[6]
0.50
[13]
Model 730 with 0.5" diameter tube Model 730 with 0.25" diameter tube
