Setra Systems Model 730 Operating Instructions Manual page 4

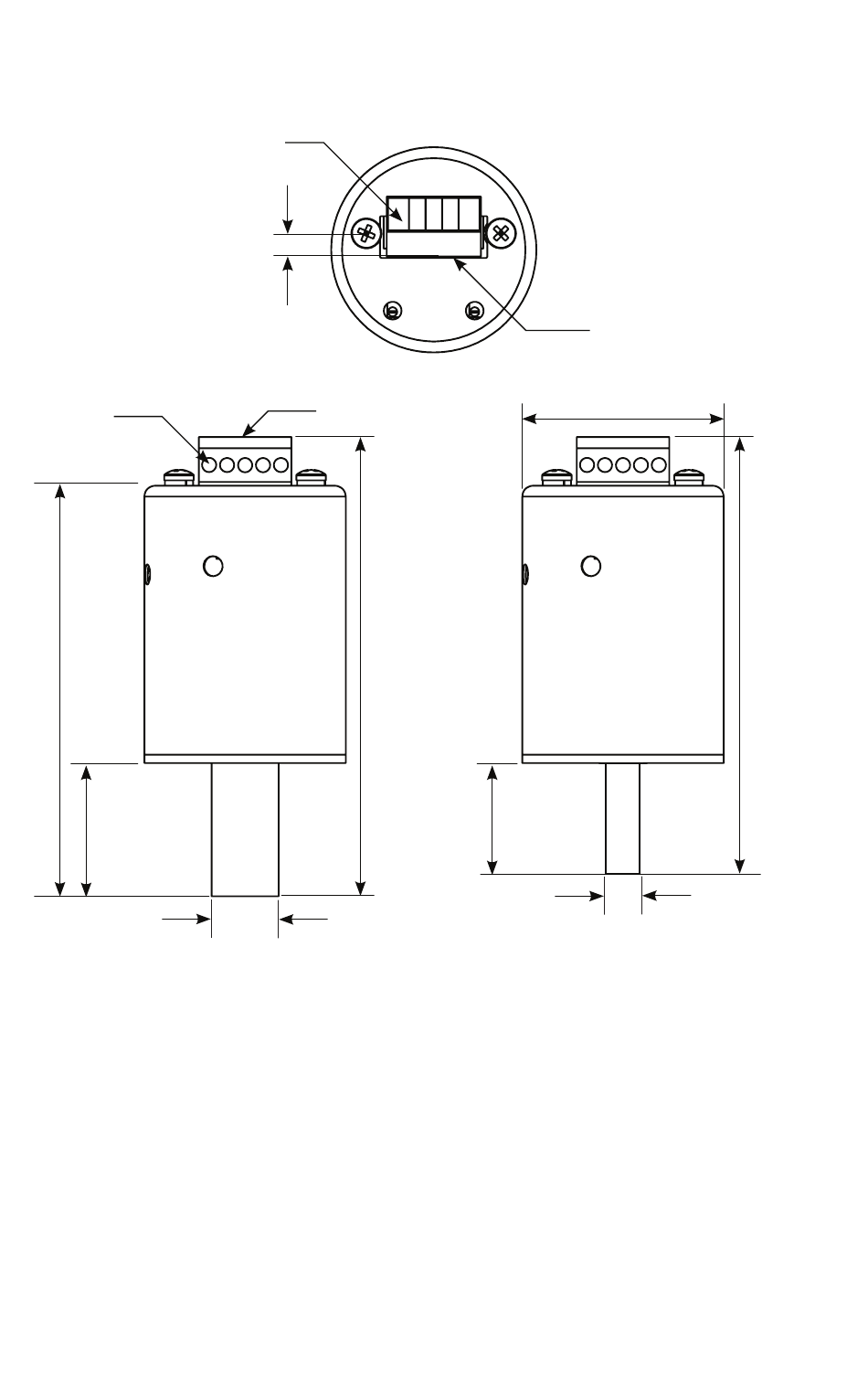

Figure 2: Outline drawing of Model 730 with 5-pin terminal strip and 0.5" and
0.25" OD Tube.
Pin 1
3.05
[77]
0.99
[25]
Model 730 with 0.5" diameter tube
Pin 1
0.12
[3.05]
Mating connector
3.47
[87]
0.50
[13]
0.75
[19]
Model 730 with 0.25" diameter tube
4
in.
[mm]
Terminal strip
1.50
[38]
3.17
[80]
0.25
[6]
