- Page 1 Model 760 Operating Instructions Setra Systems, Inc. 159 Swanson Road, Boxborough, MA 01719 800.257.3872 • www.setra.com...
-
Page 2: Table Of Contents
6.0 Maintenance & troubleshooting .................. 11 7.0 Specifications .......................12 8.0 Reordering data ......................13 9.0 Returning products for repair ..................14 10.0 Warranty & limitation of liability ................14 11.0 Form 760 ERN - return of Setra Systems product-declaration ....... 15... -
Page 3: Introduction

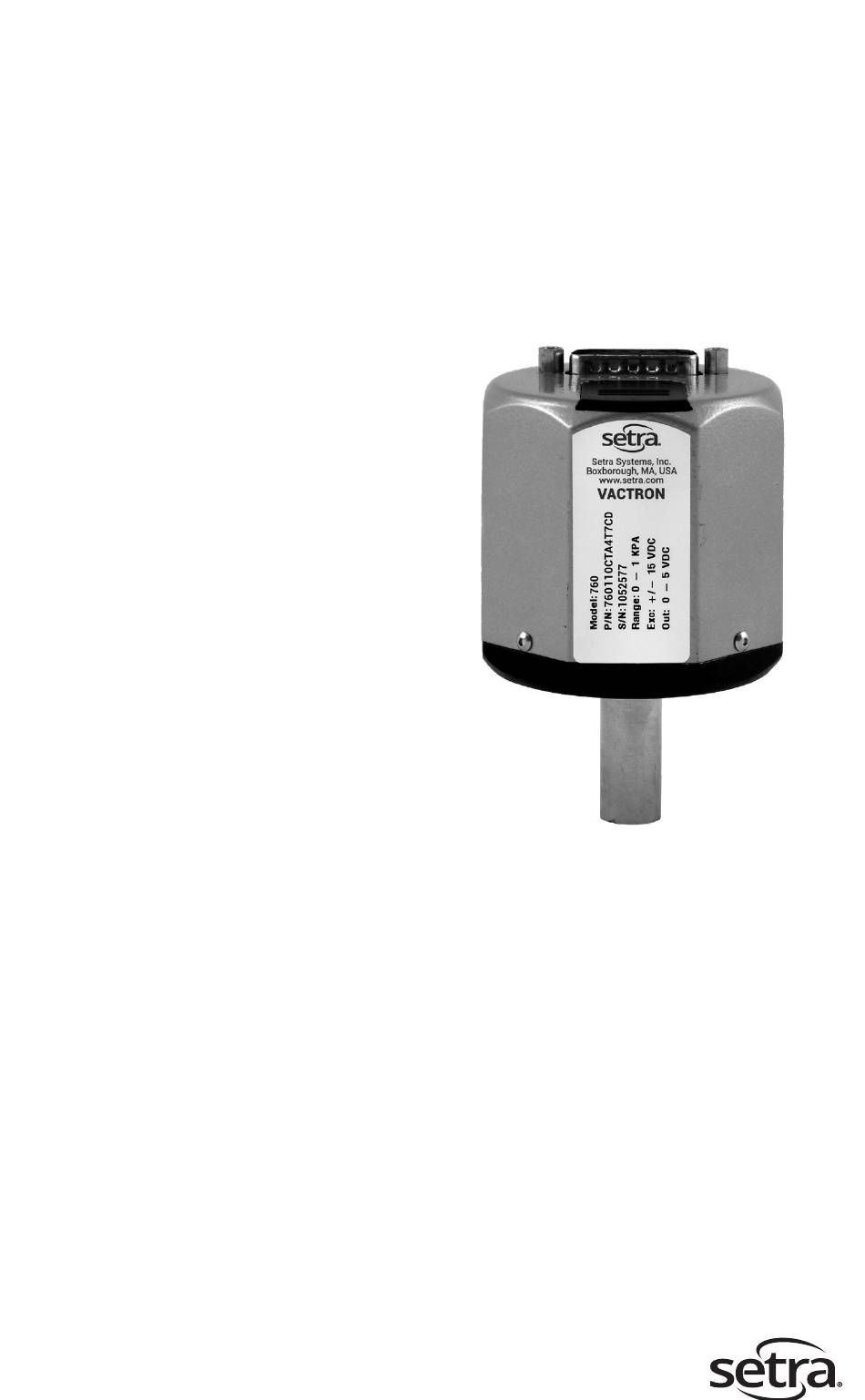

Torr (mmHg), mBar (hPa), kPa or psia. The Model 760 operates from a ±15 VDC power supply and provides a 0-10 VDC or 0-5 VDC signal output that is linear with pressure and independent of gas composition. Electrical connections can be either the industry standard 15 pin D-sub or 6 position terminal strip connector. -
Page 4: Mechanical Installation
760. If the Model 760 appears damaged, notify Setra Systems or your supplier immediately. Retain packaging materials for inspection. Do not use if damaged. If the Model 760 is not going to be used immediately, then replace the protective flange cover and store in an area where the temperature range is controlled between -50 to +125°C. - Page 5 Figure 2: Outline drawing of screw terminal connector (6 position), 0.5” OD tube. 0.18 1.25 2.36 0.73 18.5 2.36 12.7 PCB HEADER, 6-WAY FREE PLUG, 6-WAY SCREW TERMINAL SLIDING INSERT EXTENDS APPROX. 0.4" TO REVEAL USER ADJ. ACCESS HOLES (SPAN & ZERO) Figure 3: Outline drawing showing optional ISO NW vacuum fitting.
-
Page 6: Electrical Installation
2.43 3.0 Electrical installation The model 760 operates from a ±15 VDC regulated (±5%) power supply. The model 760 has either a 0-5 VDC output or 0-10 VDC output. The pin out for the D-sub, 15 pin connector is shown in Figure 5, page 6. A schematic diagram of the recommended electrical connections to the D-sub, 15 pin connector is shown in Figure 6, page 6. -
Page 7: Operation
Adjust the zero potentiometer if incorrect (See Section 5 for zero adjustment instructions). The signal output of the Model 760 is linear with pressure; e.g., for a 10 VDC FS Model 760, 10 VDC equals 100% FS output, 1 VDC equals 10% FS output. - Page 8 Chassis ground 1,3,4,8,9,10,11,13,14 Not used Figure 6: Electrical connection schematic – D-sub 15-pin connector +ve Signal Output 15 position D-Sub 0 0 0 Connector on Model 760 Digital volmeter/ readout -15 VDC Power Supply -15 VDC Chassis ground Shielded cable...
- Page 9 Power Supply, +15 VDC Chassis Ground Figure 8 : Electrical connection schematic - screw terminal connector +ve Signal Output 6 Position Screw 0 0 0 Terminal Connector Model 760 Digital volmeter/ readout -15 VDC Power Supply -15 VDC Chassis ground...
-
Page 10: Calibration And Adjustment Of Zero Output
Use an accurate digital voltmeter to view the signal output of the Model 760. Adjust the signal output of the model 760 to be 0.001 to –0.001 mV. Make this adjustment at a pressure at least 1/2 decade below the Model 760’s resolution; e.g., for a 10 Torr FS unit the zero pressure should be less than 5E-4 Torr . -
Page 11: Maintenance & Troubleshooting
Systems or your supplier immediately. Retain packaging materials for inspection. Do not use if damaged. If the Model 760 is not going to be used immediately then replace the protective flange cover and store in suitable conditions described in Section 2. -
Page 12: Specifications
7.0 Specifications Performance data Accuracy <±0.25% of reading; <±0.15% of reading (Opt) Resolution 0.01% FS Thermal effects Compensated range 0º to +50ºC Zero shift < ±0.005% FS/ºC Span shift < ±0.027% FS/ºC Proof pressure 45 PSIA Operating temperature 0 to +50°C Storage temperature -50 to +125°C Electrical data... -
Page 13: Reordering Data
8.0 Maintenance & troubleshooting Model Pressure range Pressure type Fitting Output Elec. termination Accuracy 7601 760 001T 4T 0.5“OD tube 1 Torr Absolute 0-5 VDC 15-pin D-Sub ±0.25% of reading 010T 10 Torr N1 ISO NW16 0-10 VDC 6 position screw... -
Page 14: Returning Products For Repair
9.0 Returning products for repair Setra Systems cannot accept a Model 760 for repair unless the Form 760ERN is completes. Contact Setra Systems for an ERN number or the form 760ERN. Form 760ERN is included in this guide on page 15. -
Page 15: Form 760 Ern - Return Of Setra Systems Product-Declaration
Telephone Number: ____________________________ Date of Product Return: ______________ I have made reasonable inquiry and I have supplied accurate information in this Declaration. I have not withheld any information. I have followed the Return of Setra Systems Product Procedure. Signed: ______________________________________ Date: ___________________________________... - Page 16 Setra Systems, Inc. 159 Swanson Road, Boxborough, MA 01719 800.257.3872 • www.setra.com...
