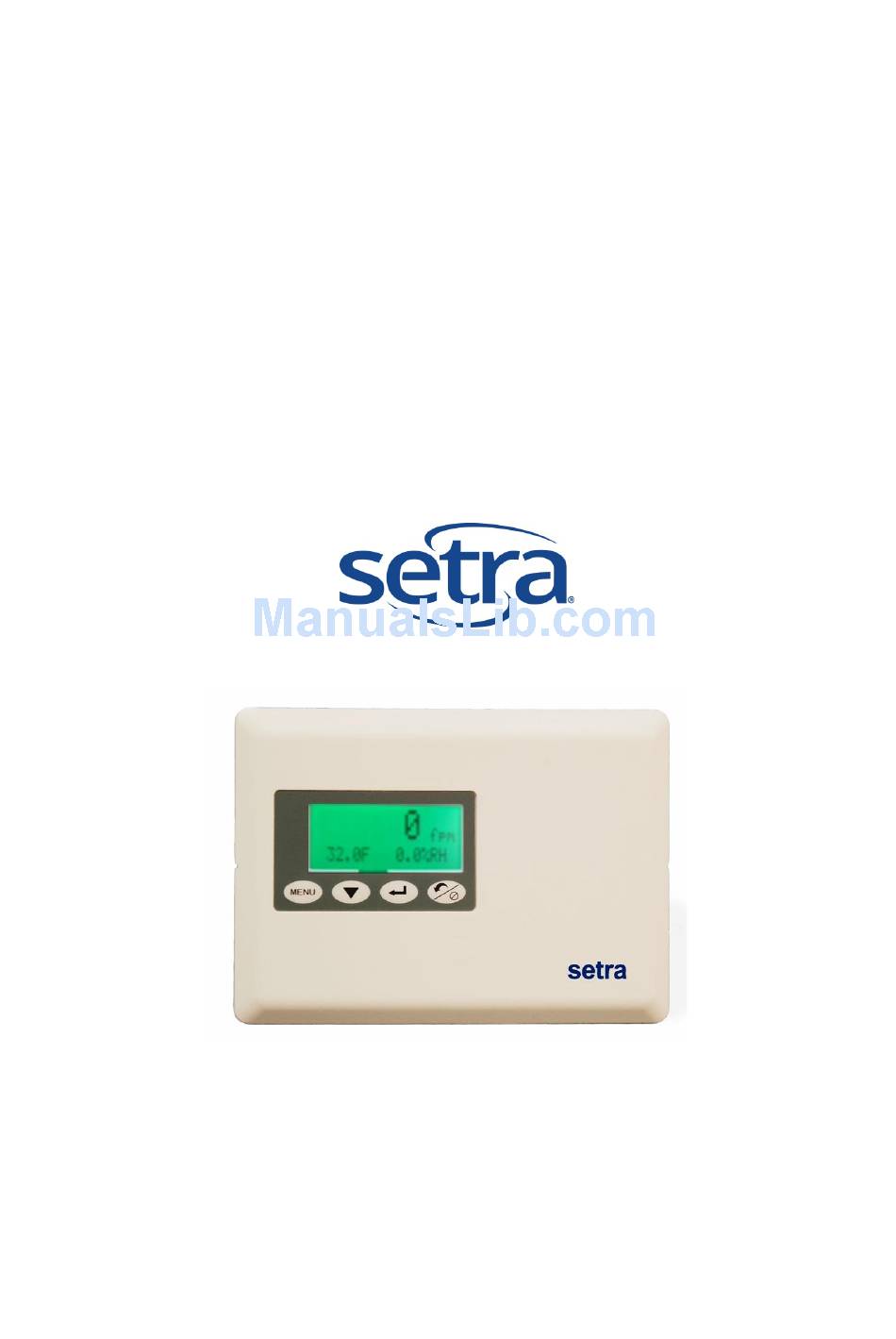

Setra Velocity Monitor
SRIMV
Installation and Operation Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRIMV and is the answer not in the manual?

Questions and answers

Related Manuals for Setra Systems SRIMV

Summary of Contents for Setra Systems SRIMV

  • Page 1 Setra Velocity Monitor SRIMV Installation and Operation Manual...
  • Page 3 Table of Contents 1.0 Features and Intended Use 2.0 SRIMV Included parts 3.0 Installation 4.0 Menu Navigation and Configuration 5.0 Setting up the SRIMV menu...
  • Page 4 1.0 FEATURES The SRIMV is a multi-mode (air velocity, flow, pressure, temperature and humidity) monitor. It has a 3 color backlight display, a digital input for a door switch, 2 analog inputs for temperature and humidity, 1 relay output for remote alarm indication and an internal pressure sensor. It can display and alarm on Velocity, Flow, Pressure, Temperature and Humidity parameters.
  • Page 5 The 242915-xx units utilizes 1/4 ̋ ID, 3/8 ̋ OD tubing. First check that there are no sharp bends in the tubing at any connection. Connect the “H” Port to the high input on the SRIMV units. Connect the “L” Port to the low input on unit.
  • Page 6 4. Attach using two self-tapping screws inserted in the 3/16 ̋ mounting hoes. 3.0 Installation The SRIMV is available in two models suitable for wall (flush mount) and surface mounting (panel mounting). The front panel of the product and the rear housing are snapped together.
  • Page 7 Fig 3-1 Wall (Flush) mount housing dimensions, front view Fig 3-2 SRIMV Wall (Flush) mount housing rear view of pressure fittings and electrical terminations Unpack the product box. Do not remove the protective film on the front display screen until after installation to prevent scratching of the display during the installation process.
  • Page 8 #6 machine screws to mount the ears of the SRIM rear housing to the electrical box. If mounting directly into the wall without an electrical box, use drywall screws to mount the 4 ears of the SRIMV box to the wall.
  • Page 9 Fig. 3-6 Wiring Diagram SRIMV...
  • Page 10 SRIMV only +(High) Pressure - Pressure Pull wires through the openings in the Fig 3-7 Pressure ports and electrical terminals, SRIMV bottom of the base. ½” Conduit or PG9 fitting openings are provided. Terminal Function 18-30 VDC, 24 +/- 20% VAC...
  • Page 11 Figure 3-8 Wiring, SRIMV Notes: Relay 1 (RLY1) is a SPDT relay that can be used to signal a remote unit of an alarm condition. The relay contacts are rated for 3 A, 120 VAC, 3A, 28VDC...
  • Page 12 Apply 24 VDC or 24 VAC power. Menu Flow Chart. The SRIMV flow chart is available on the setra.com web site to help with set up and configuration. Use the QR code to get to setra.com.
  • Page 13 Display Parameters Unit in the normal state, line 1 indicates differential pressure, velocity or flow and the corresponding engineering units. Line 2 indicates the temperature and humidity reading, if enabled. The green backlight indicates that the velocity (or pressure or flow), the temperature and humidity is within the allowable alarm limits.

  • Page 14: Menu Screens

    Menu Operation Menu key – Provides access to the menu structure Down arrow key – Allows selection of numerical parameters. Pushing the down arrow causes the digits to move upwards in a 1 digit count and will wrap around. The cursor below the indicated item in the current menu item indicates that this is the digit that is being changed.
  • Page 15 Velocity, Flow, Pressure, ACH Selection User Selectable for Velocity, Flow, Pressure or Air Changes per Hour. Whichever option is chosen in this menu will be shown as the default in the secondary menu under the V/Flow/Pressure section. Choose “enter” to activate the V/Flow/Press menu.
  • Page 16 Password Enable Enables or disables the 4 digit numeric password. Filter Setting (0-99) is the filter setting. This is the number of samples used to take an average; it is a weighted rolling average, so the higher the number the more filtering is done to smooth out the output and display readings.
  • Page 17 Temperature Source Choose between an analog sensor input (from external sensor) or “set-up”. The sensor input comes from the external sensor, whereas the “set-up” option is added manually if there is no temperature sensor used. Temp is used to calculate air density; Default is 70 degrees Fahrenheit or 21.1 degrees Celsius.
  • Page 18 Velocity Alarm Low Limit Sets the alarm for the low side velocity limit. Choose “enter” to activate the V Alarm L Limit menu. The menu will flash, then press the “down arrow” to select desired digit. Press “enter” to select and move to next digit. Velocity Alarm Enable Enables or disables the velocity Alarm.
  • Page 19 Barometric Pressure Set current barometric pressure conditions. This can either be entered manually or it will be set to the standard default of 29.92 in Hg. Barometric Pressure effects the flow rate due to changes in air density. Choose “enter” to activate the Barometric Pressure menu.
  • Page 20 Duct Area Manually enter the area of the duct where the probe is mounted. The ducts area is necessary for calculating the flow rate. The menu will flash, then press the “down arrow” to select desired digit. Press “enter” to select and move to next digit.
  • Page 21 Pressure Alarm Low Limit Sets the alarm for the low side pressure limit. Choose “enter” to activate the P Alarm L Limit menu. The menu will flash, then press the “down arrow” to select desired digit. Press “enter” to select and move to next digit. Pressure Alarm Enable Enables or disables the Pressure Alarm.
  • Page 22 If Air Changes per Hour is Selected After choosing to display and monitor Air Changes Per Hour from the Common Config section, set the parameters for that output. K Factor The K factor is provided by the manufacturer of the static pressure probe or Pitot tube and varies by probe length.
  • Page 23 Zero Calibration “Tares” out any Zero pressure error. This must be done with Zero pressure applied to the unit. Duct Area Manually enter the area of the duct where the probe is mounted. The ducts area is necessary for calculating the flow rate. The menu will flash, then press the “down arrow”...
  • Page 24 ACH Range Enter Range of ACH for the analog output. ACH range is proportional to the chosen output. Temperature Selection Menu Temperature Runs through the Temperature setup screen to set all parameters to desired set points. Temperature Enable Enables or Disables the Temperature Setting. Choose “enter”...
  • Page 25 Temperature Max Vin Input the maximum temperature that corresponds to the max analog output- T_Max Vin. Choose “enter” to activate the T Max Vin menu. The menu will flash, then press the “down arrow” to select desired digit. Press “enter” to select next digit.
  • Page 26 4. Humidity Selection Menu Runs through the Humidity setup screen to set all parameters to desired set points. Humidity Enable Enables or disables humidity setting. Choose “enter” to activate the Humidity Enable menu. The menu will flash, then press the “down arrow” to select desired mode.
  • Page 27 Humidity Max Vin Input the maximum humidity that corresponds to the min. analog output- H Max Vin. Choose “enter” to activate the H Max Vin menu. The menu will flash, then press the “down arrow” to select desired digit. Press “enter” to select next digit.
  • Page 28 Examples for Setting up Menu Example 1: Output mode setting To enter the menu, press the Menu key to view “Common Configuration. Next, press the ← button twice until the indicates output mode. 4-20 mA is the default output mode, if you want to change display to 0-5Vdc or 0-10Vdc press the down arrow and press the return key to select.
  • Page 29 Example 3 Calibration Remove the tubes from the pressure ports or shut of fans to the room and open the door so that zero differential pressure is applied to the monitor. Select menu item ZERO CALIBRATION. The display shows the current pressure value, press the Enter key.

  • Page 30: Returning Products For Repair

    RETURNING PRODUCTS FOR REPAIR When returning a product to Setra Systems, the material should be carefully packaged and shipped prepaid to: Setra Systems, Inc. To assure prompt handling, please refer to return instructions on our http://ecatalog.setra.com/returns WARRANTY AND LIMITATION OF LIABILITY...
