MX370QD

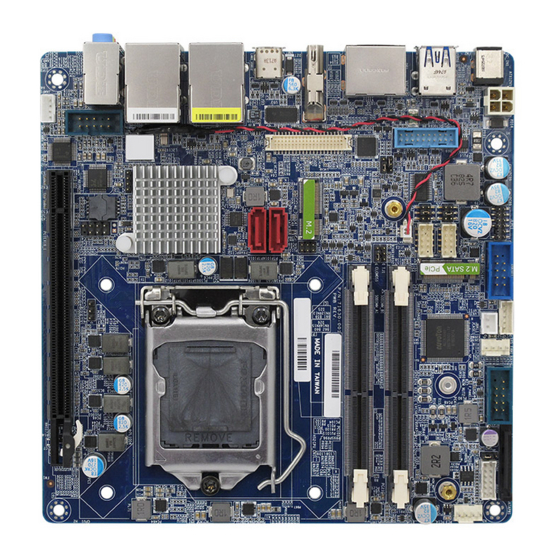

Intel® Q370 mini-ITX Motherboard supports LGA1151 Coffee Lake CPU
Mini ITX Motherboard
User's Quick Start Card

• Inspect the Package:

One
MX370QD Motherboard
One
SATA power Cable

One
DC-In Power Cable
One
I/O Shield

• Responsibility:

This manual is provided "As-Is" with no warranties of any kind, it will neither expressed or implied,
including, but not limited to the implied warranties or conditions of this product's fitness for any
particular purpose. In no event shall we be liable for any loss of profits, loss of business, loss of data,
interruption of business, or indirect, special, incidental, or consequential damages of any kind, even
the possibility of such damages arising from any defect or error in this manual or product. We reserve
the right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system's CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell
(or equivalent) battery type to avoid risk of personal injury or physical damage to your equipment.
Always dispose of used batteries according to the manufacturer's instructions, or as required by the
local ordinance (where applicable). The damage due to not following this warning will void your
motherboard's manufacturer warranty.
Perchlorate Material- Special Handling May Apply.
See
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that
you do not modify any of the settings than otherwise instructed in the User's Quick Start Card. Even
a seemingly small incorrect adjustment or modification in the BIOS setup can render your system
unstable or unusable. The incorrect BIOS setup is not covered by your motherboard's manufacturer
warranty.

• Additional Information:

Additional information on setting this board up can be found in the User's Manual in the provided CD-
ROM. The Online User's Manual and FAQ/Knowledge Base can be found on our website by visiting
our website: http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge
Base, visit our forums and post your messages or submit a new FAQ through FAQ Submittal form for
us to add your question in our FAQ with our answer.
WARNING: Electrostatic Sensitive Device (ESD)
http://www.bcmcom.com
Version 0.1
Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep
the motherboard and other system components in their anti-static packaging until you are ready to
install them. Touch a grounded surface before you remove any system component from its protective
anti-static packaging. Unpacking and installation should be done on a grounded, anti-static mat. The
operator should be wearing an anti-static wristband, grounded at the same points as the anti-static
mat. During configuration and installation touch a grounded surface frequently to discharge any static
electrical charge that may have built up in your body. Avoid touching the components when handling
the motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the
edges or by the peripheral card case-mounting bracket.
WARNING: Misplaced Jumper Damage
Incorrect setting jumpers and connectors may lead to damage to your motherboard and will void your
motherboard warranty.
Please pay special attention not to connect these headers in wrong
directions. DO NOT change ANY jumpers while the motherboard has the power!
Motherboard Layout:
• Board Layout:
ATX12V1
JLPC1
PJ4
USB89
JCOMPWR1
COM1
JCOMPWR2
USB56
JBKLVOL1
JLVDS_BKL1
DPI
M2_2
HDMI1
I2S1
USB7
LVDSEDP1
SATA1~2
LAN1
USB12
LAN2
USB34
I2C1
ME1
AUDIO1
AAFP1
SPI1
JAMP1
JBKL1
USB1011
F_PANEL1
SATAPW1
JCASE1
SYS_FAN1
JPSON1
JDIO1
M2_1
COM2
SODIMM_B1
TJ1
CLCMOS1
SODIMM_A1
CPU1
JSMB1
PCIEx16
CPU_FAN1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX370QD and is the answer not in the manual?

Questions and answers

Summary of Contents for BCM MX370QD

  • Page 1: Motherboard Layout

    Version 0.1 edges or by the peripheral card case-mounting bracket. • Inspect the Package: WARNING: Misplaced Jumper Damage MX370QD Motherboard Incorrect setting jumpers and connectors may lead to damage to your motherboard and will void your SATA power Cable motherboard warranty.
  • Page 2 • Back Panel: USB34 USB 3.1 These two Universal Serial Bus (USB) ports are Connectors available for connecting USB 3.1 devices. AUDIO1 Line-in port This port connects a tape, CD, DVD player, or Item Name Function Description (Light blue) other audio sources. DC-in connector The connector is for DC-in (12-24V) AUDIO1...
  • Page 3 Jumpers, Connectors, & Headers: • COM1&2 Ring-In/ +12V/ +5V Select: JCOMPWR1, JCOMPWR2 • Clear CMOS Jumper: CLCMOS1 Ring (Default) +12V Normal (Default) Clear CMOS • LVDS panel voltage Selection: JBKLVOL1 • ATX/AT Mode Selection: JPSON1...
  • Page 4 • ATX Power Connectors: ATX12V1 (4-pin) • LVDS brightness control mode Selection: JLVDS_BKL1 ATX12V1 Fan Connectors: CPU_FAN1, SYS_FAN1 • LPC Connectors: JLPC1 2. +3.3V 1. NC 4.PLTRST_LPC# 3. LPC_AD3 6. LPC_AD2 5. LPC_AD1 8. LPC_AD0 7. LPC_FRAME# 10. GND 12. GND 11.
  • Page 5 • Serial Port Connectors: COM1, COM2 SATA power connectors: SATAPW1 1. +3.3V 2. +3.3V 3. +3.3V 4. GND 5. GND 6. GND 7. +5V 8. +5V 9. +5V 10. GND 11. GND 12. GND 13. +12V 14. +12V 15. +12V •...
  • Page 6 • Front USB 2.0 Headers: USB1011 • Front Panel Audio Connector: AAFP1 10. LINE2-JD 9. LINE2L 8. NC 7. SENSEB 6. MIC2-JD 5. LINE2R 4. NC 3. MIC2R 2. GND 1. MIC2L • Amplifier Connector: JAMP1 • Front Panel Connector: F_PANEL1 1.
  • Page 7 • Digital I/O Connector: JDIO1 • LVDS panel backlight connector: JBKL1 1. SIO_GPIO0 2. SIO_GPIO4 3. SIO_GPIO1 4. SIO_GPIO5 5. SIO_GPIO2 6. SIO_GPIO6 7. SIO_GPIO3 8. SIO_GPIO7 9. SMB_CLK_ 10. SMB_DATA_ RESUME RESUME 11. GND 12. +5Vsb • LVDS panel connector: LVDSEDP1 •Chassis Intrusion Connector: JCASE1...
