User's Quick Start Card

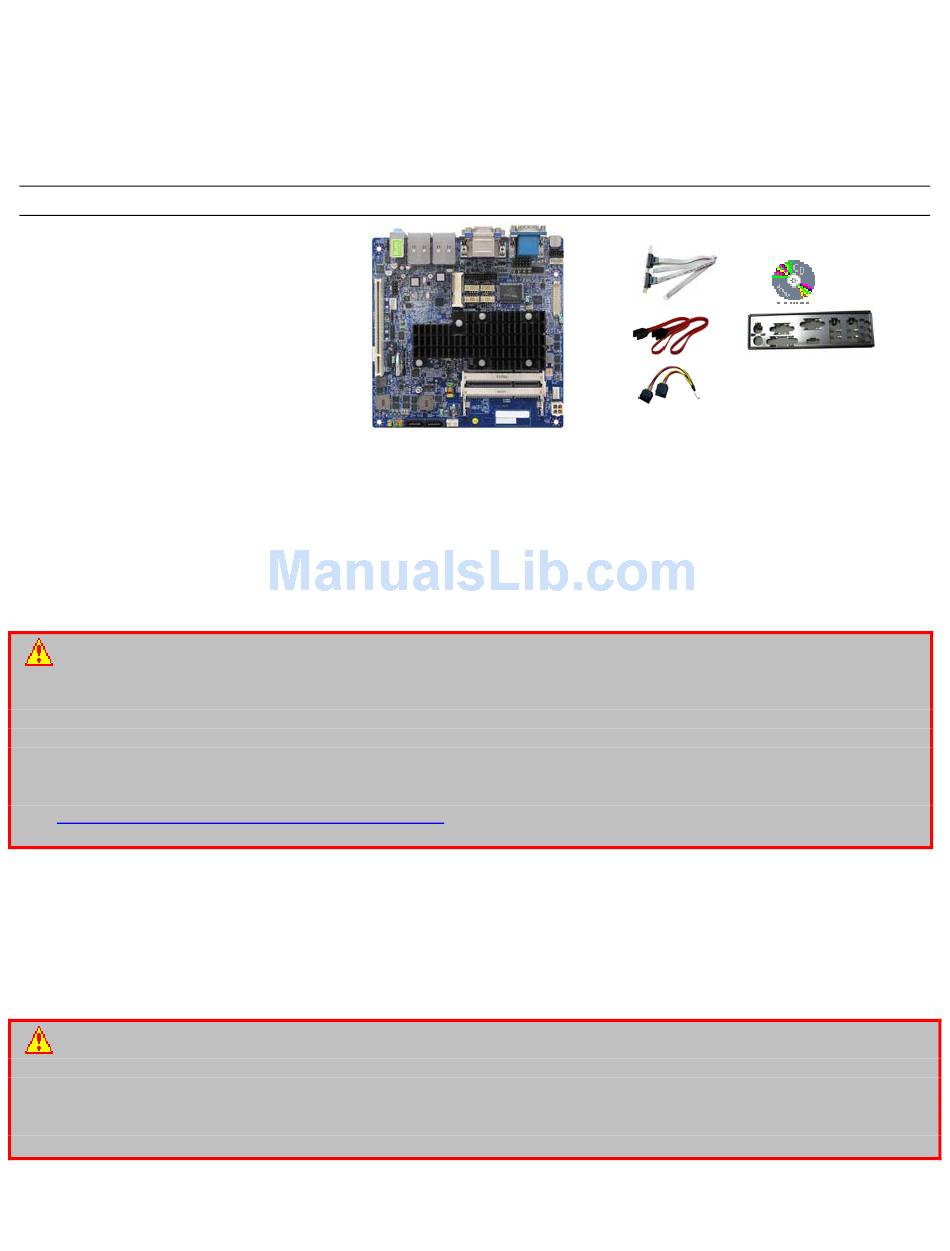

Inspect the Package:
One
MX255D Motherboard
One
Standard I/O Shield
One
Dual COM Port Cables
Two
SATA data cables
One
SATA power Y cable
One
Driver CD
One User's Quick Start Card
Responsibility:
This manual is provided "As-Is" with no warranties of any kind, expressed or implied, including, but not limited to the implied
warranties or conditions of this product's fitness for any particular purpose. In no event shall we be liable for any loss of
profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential damages of
any kind, even the possibility of such damages arising from any defect or error in this manual or product. We reserve the
right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system's CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery
type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to
explode. Always dispose of used batteries according to the manufacturer's instructions, or as required by the local
ordinance (where applicable). The damage due to not following this warning will void your motherboard's manufacturer
warranty.
Perchlorate Material- Special Handling May Apply.
See
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Additional Information:
Additional information on setting this board up can be found in the User's Manual in the provided CD or DVD ROM. The
Online User's Manual and FAQ/Knowledge Base can be found on our website by visiting our website:
http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your
messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify any
of the settings than otherwise instructed in the User's Quick Start Card. Even a seemingly small incorrect adjustment or
modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by your
motherboard's manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings
change.
MX255D
Intel
Atom Mobile Processor
®
Version 1.2
MX255D
http://www.bcmcom.com
1
