Appendix B - iDynamo Adapter Sleeves

B.8

21041140

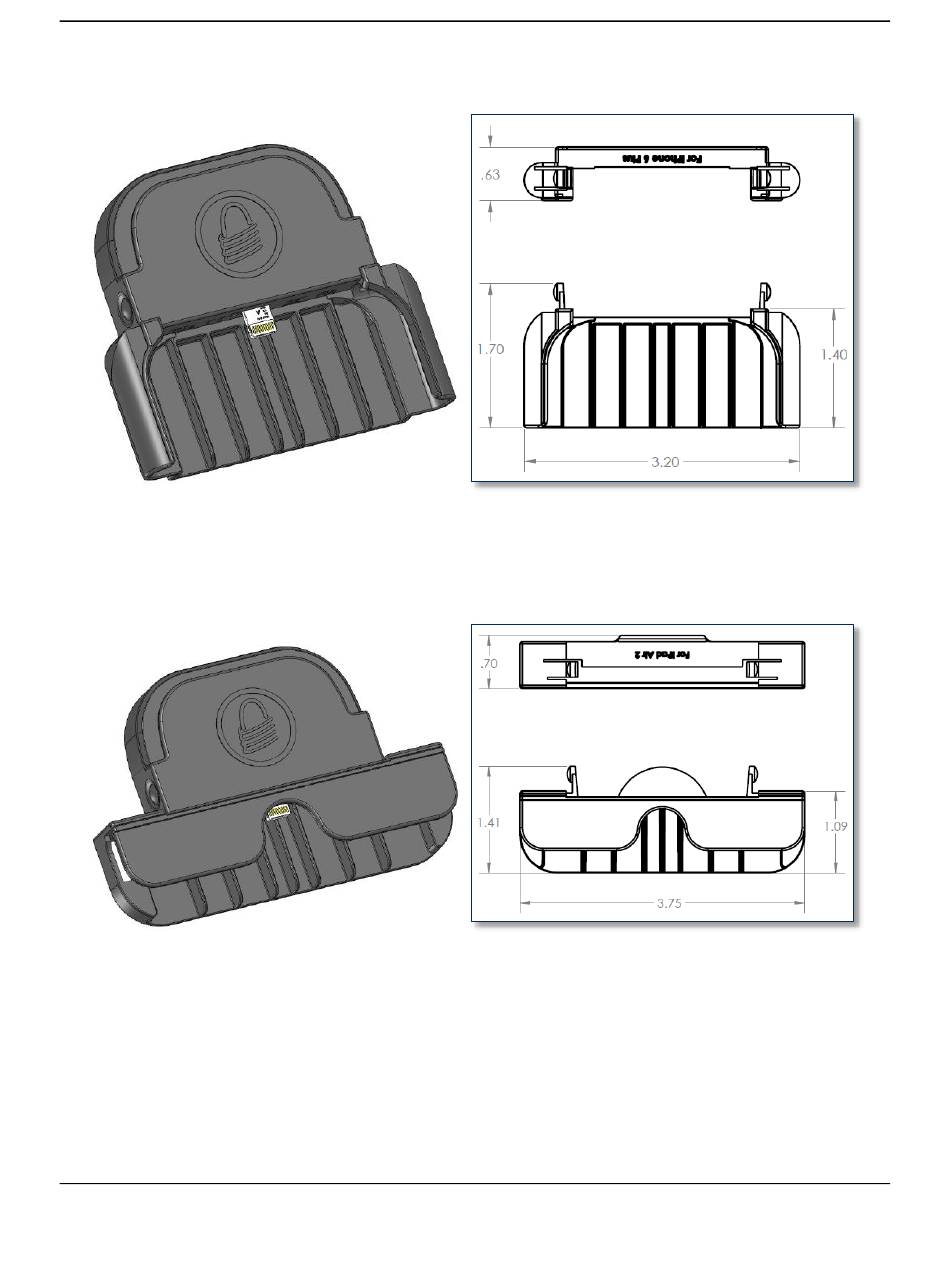

Figure 5-9 - iDynamo 5 with 21041140 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)

B.9

1000001920

Figure 5-10 - iDynamo 5 with 1000001920 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)

iDynamo 5 and iDynamo 5 (Gen II)| Secure Card Reader Authenticator | Installation and Operation Manual

Page 32 of 33 (D99875473-120)
