Magtek iDynamo 5 Quick Installation Manual

Product Overview
iDynamo 5 (Gen II) offers MagneSafe
open standards encryption with simple, yet proven DUKPT
key management, immediate tokenization of card data and
MagnePrint card authentication to maximize data protection and
®
prevent the use of counterfeit cards. Mobile merchants can now
leverage the power of their iPhone products without the worries of
handling or storing sensitive card data at any time.

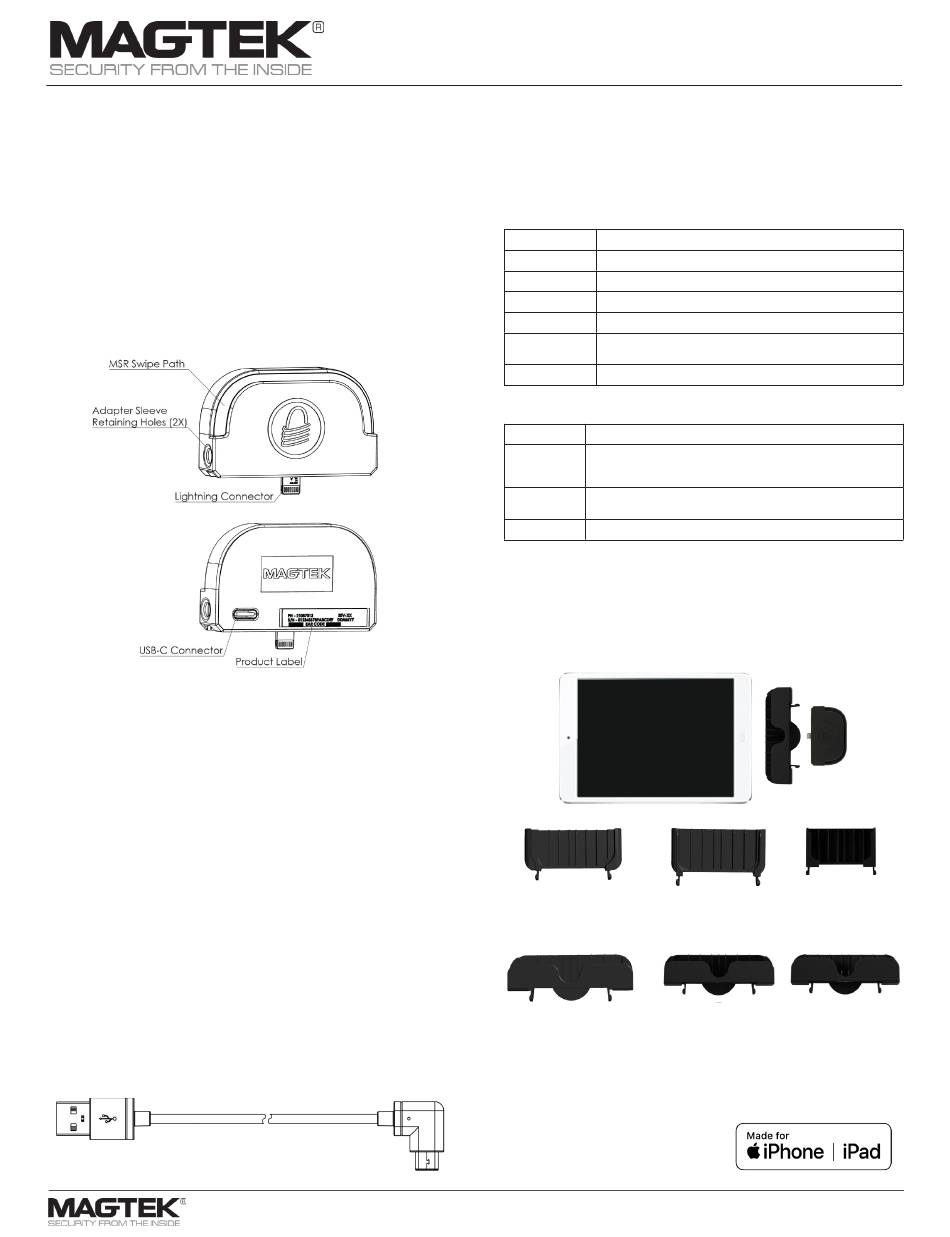

Major Components
Power and Charging
iDynamo 5 (Gen II) is powered through the iOS device, only uses
power during a transaction, and uses a MagTek cable (noted
below)for charging the iOS Device.
Apple Power Adapter is Required
The charging source must be specified by Apple and be specific to
the iOS device to which iDynamo 5 (Gen II) is attached. To charge
your iOS device while iDynamo 5 (Gen II) is attached, connect the
MagTek cable (noted below) and then connect the opposite end to
the appropriate Apple charging adapter.
MagTek Cable
ONLY use MagTek USB cable PN 1000005076 (3ft) or
PN 1000007268 (6ft) to charge the iOS device. A MagTek cable
will be included with your reader and is required.
CAUTION: Failure to use MagTek cable with the Apple
supplied adapter will VOID MagTek Limited Warranty.
USB connection
Quick Installation Guide
Setup and Installation
security and delivers
®
Type C connection
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
iDynamo 5 (Gen II)
Secure Card Reader Authenticator
Connection
Compatible with iOS Lightning connector devices. Adapter sleeves
make attaching to iOS devices simple and provide more stability.
iDynamo 5 (Gen II) comes with several stability adapter sleeves.
Part Number Description
21041140 For iPhone 8+, iPhone 7+, iPhone 6+
21041139 For iPhone 8, iPhone 7, iPhone 6
21041088 For iPhone 5/5s
1000001920 For iPad Air 2
21041137 For iPad Air, iPad mini 3, iPad mini with Retina display,
iPad (5th, 6th, 7th, and 8th generation)
21041086 For iPad with Retina Display
Optional adapter kits are available.
Part Number Description
21073144 Adapter Kit for iPad Air 2; iPhone 8+/7+/6+; iPhone 7/6/8; iPhone
5c; iPhone 5/5s; iPad mini 3, iPad mini with Retina display; iPad
mini; iPad Air, iPad with Retina Display; iPod touch 5th gen
21073107 Adapter Kit for iPhone 4, iPad, iPad 2 / 3 & iPod touch 3 & 4,
iPhone 3GS
21041054 Adapter Kit for iPad 2/3
Connect adapter sleeve to iDynamo 5 (Gen II) by sliding adapter
on. Then connect to Lightning host device.
CAUTION:
DO NOT TWIST OR BEND THE LIGHTNING
CONNECTOR.
iPhone 6+
iPhone 6s+
iPhone 7+
iPad Air 2
iPad Mini with Retina Display
iPad (5th, 6th, 7th, and 8th generation)
iPhone 6 iPhone 5s iPhone 5
iPhone 7
iPhone 8
iPad Air iPad with
iPad mini 3, Retina Display
