Appendix B - iDynamo Adapter Sleeves
Appendix B
iDynamo Adapter Sleeves

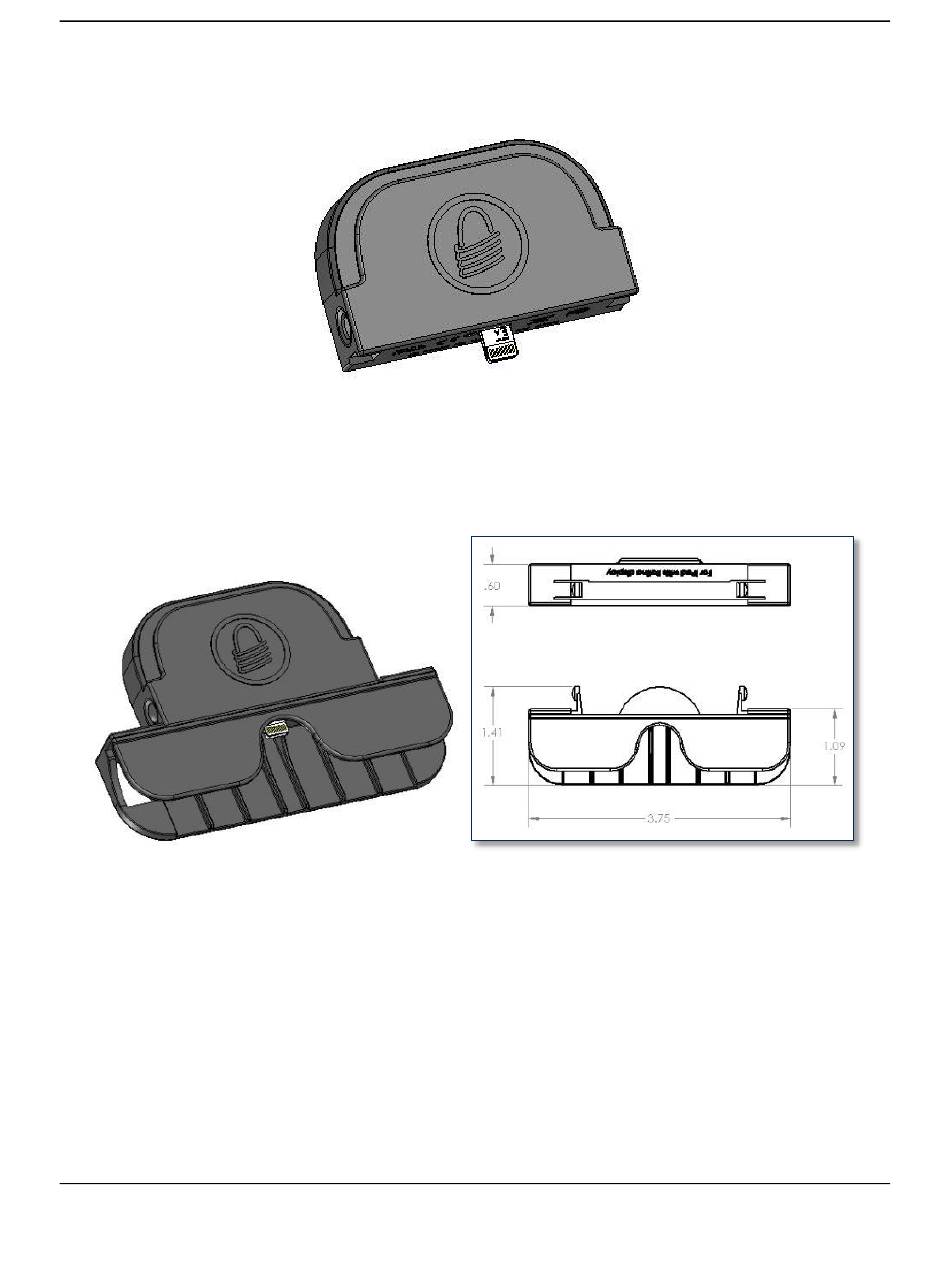

Figure 5-1 - iDynamo 5 Without Adapter Sleeve
B.1
21041086
Figure 5-2 - iDynamo 5 with 21041086 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)
iDynamo 5 and iDynamo 5 (Gen II)| Secure Card Reader Authenticator | Installation and Operation Manual
Page 28 of 33 (D99875473-120)
