Appendix B - iDynamo Adapter Sleeves
B.6
21041137

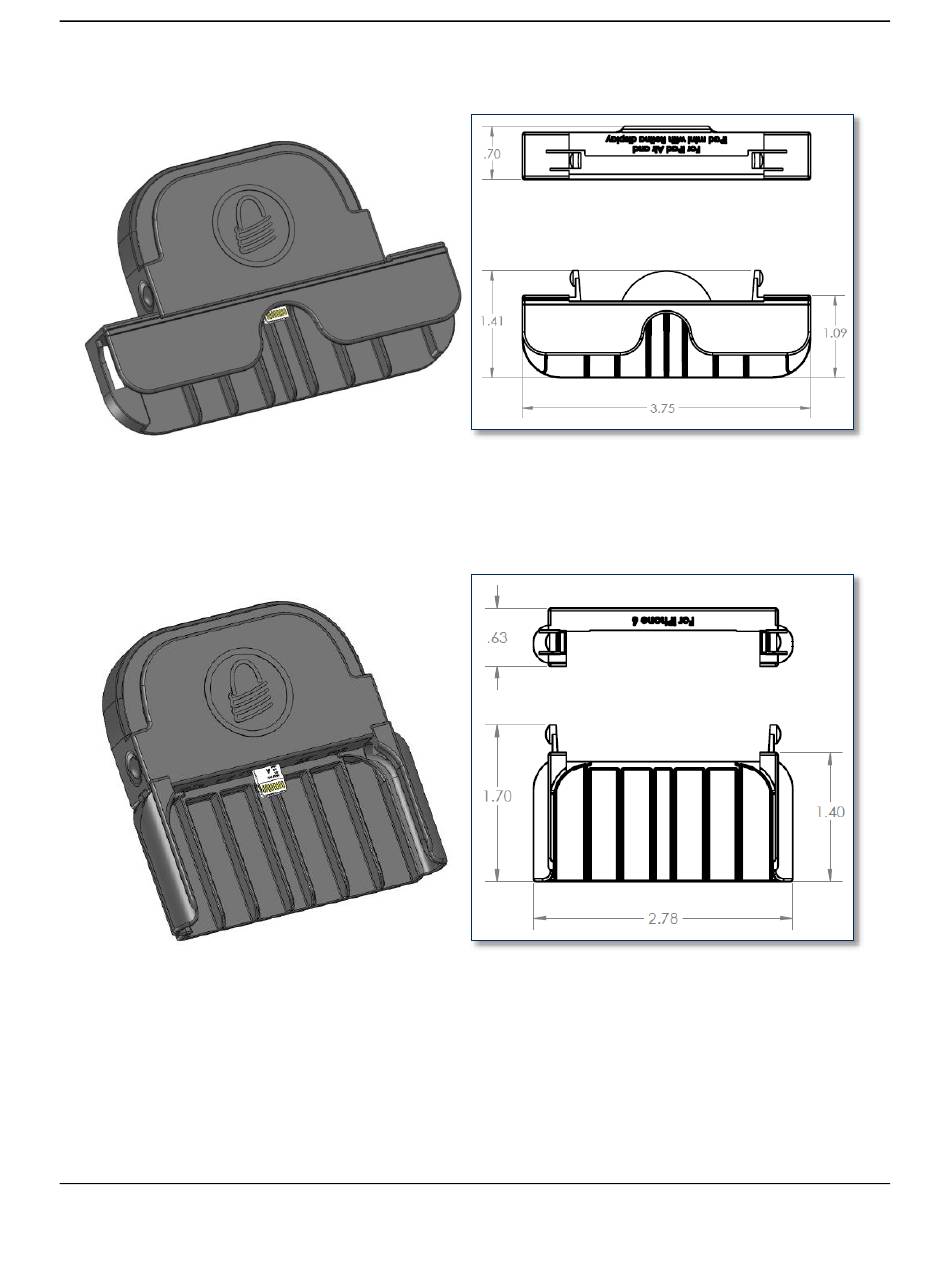

Figure 5-7 - iDynamo 5 with 21041137 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)
B.7
21041139
Figure 5-8 - iDynamo 5 with 21041139 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)
iDynamo 5 and iDynamo 5 (Gen II)| Secure Card Reader Authenticator | Installation and Operation Manual
Page 31 of 33 (D99875473-120)
