Appendix B - iDynamo Adapter Sleeves
B.2
21041087

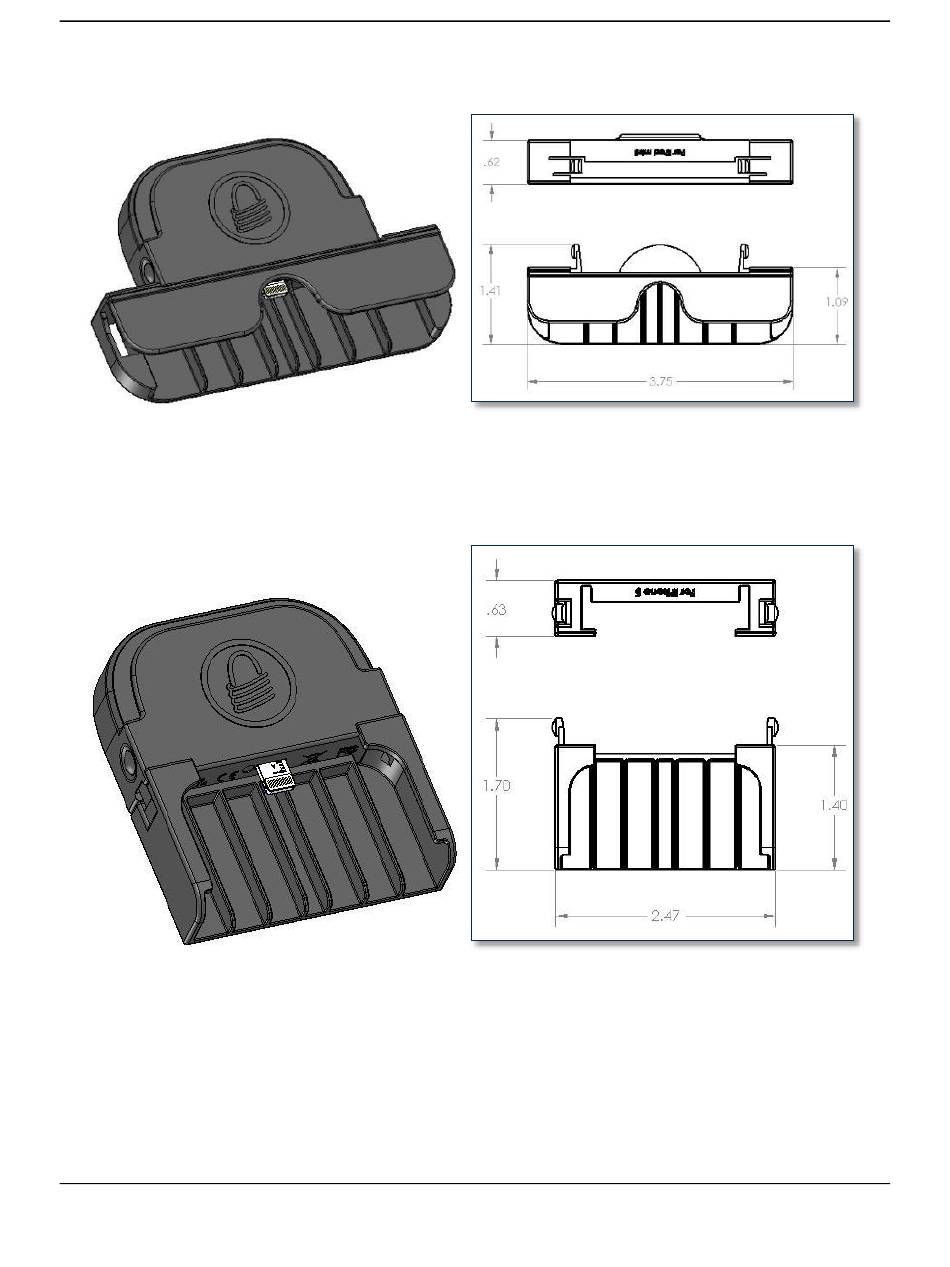

Figure 5-3 - iDynamo 5 with 21041087 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)
B.3
21041088
Figure 5-4 - iDynamo 5 with 21041088 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)
iDynamo 5 and iDynamo 5 (Gen II)| Secure Card Reader Authenticator | Installation and Operation Manual
Page 29 of 33 (D99875473-120)
