Appendix B - iDynamo Adapter Sleeves
B.4
21041089

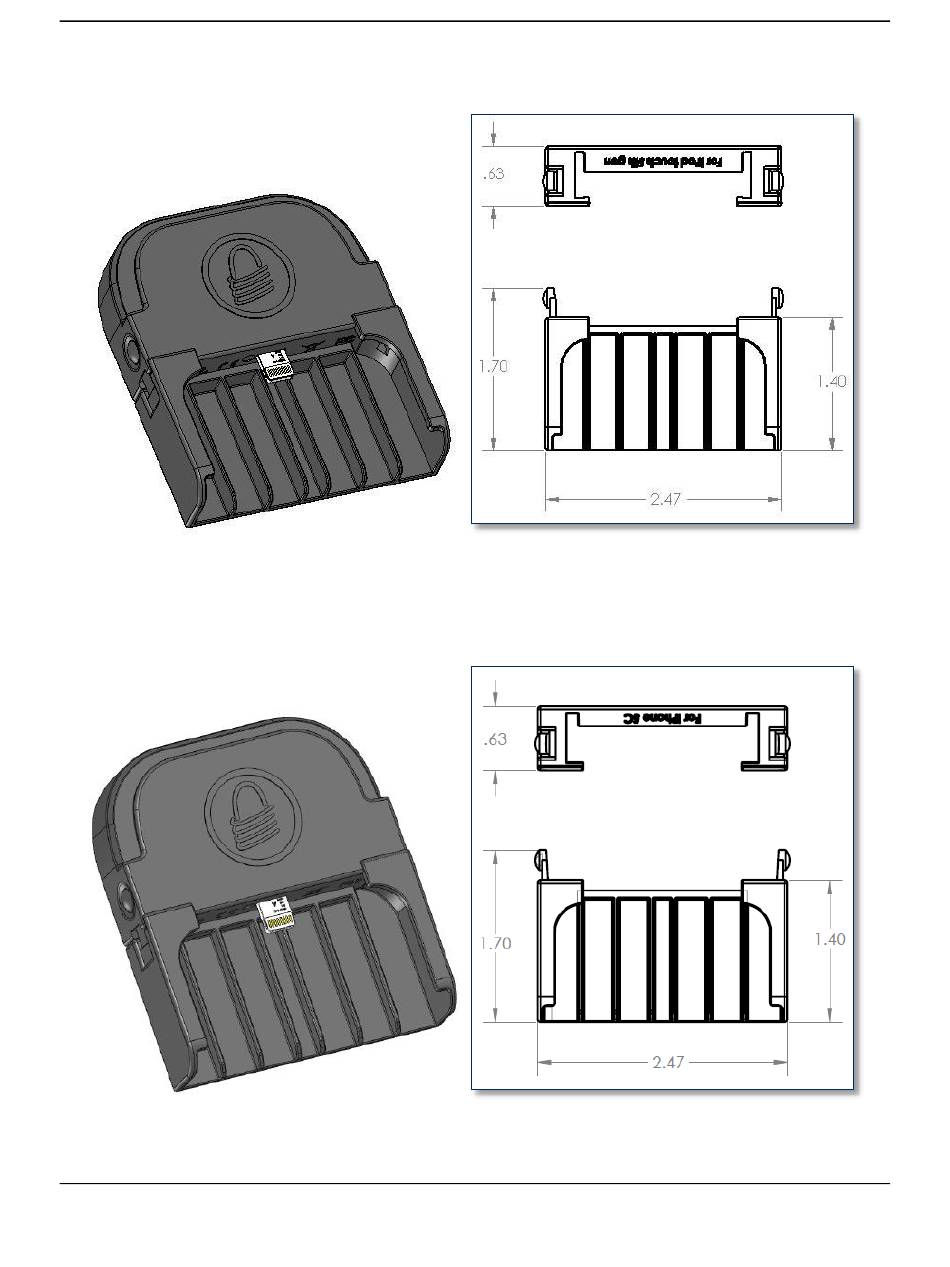

Figure 5-5 - iDynamo 5 with 21041089 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)
B.5
21041136
Figure 5-6 - iDynamo 5 with 21041136 Adapter Sleeve, Adapter Sleeve Dimensions (in inches)
iDynamo 5 and iDynamo 5 (Gen II)| Secure Card Reader Authenticator | Installation and Operation Manual
Page 30 of 33 (D99875473-120)
