Specifications - DMP Electronics DUALCOM Series Compliance Listing Manual

Universal alarm communicator

Advertisement

ANSI/UL 864
Fire Protective Signaling Systems using Internet/Intranet/Cell Networks
A Performance Based Technologies system as defined in UL 864 10th Edition may be configured as the following:
Network Primary and Cellular Backup Programming
Network Programming
Comm Type = NET
Checkin Min = 238
Fail Time Min = 240
Cellular Primary with no Backup
Path 1 Programming
Comm Type = CELL
Path Type = Primary
Test Rpt = No
Network Primary with no Backup
Path 1 Programming
Comm Type = NET
Path Type = Primary
Test Rpt = No
Model 685-R Backbox Installation
For Commercial Fire applications using DualComNF and the included red plastic Model 685-R backbox, mount the
backbox to the wall with the 1" #6 screws included with the fire communicator. Mount the fire communicator to the
backbox with the 1/2" #6 screws. See Figure 2. Locate the fire communicator within 20 feet of the control panel and
route all wire in conduit.
Refer to the DualCom Series Programming and Installation Guide (LT-1859) for communication test procedure.
For Remote Station, route supervisory and trouble messages to a separate receiver programmed in Receiver 2. See
Communication in LT-1859 for more information.
DUALCOM SERIES UNIVERSAL
ALARM COMMUNICATOR

Specifications

Primary Power
Current Draw at 12 VDC
Standby
Alarm
Current Draw at 24 VDC
Standby
Alarm
Dimensions and Color
Housing Dimensions
Housing Color
Cellular Programming
Comm Type = CELL
Checkin Min = 238
Fail Time Min = 240
Checkin Min = 58
Fail Time Min = 60
Checkin = Yes
Checkin Min = 58
Fail Time Min = 60
Checkin = Yes
Nominal 12 - 24 VDC
75 mA
95 mA Peak Cellular Communication
45 mA
85 mA Peak Cellular Communication
5.5"W x 3.75"L x 1"H
Red
Designed, engineered, and
manufactured in Springfield, MO
using U.S. and global components.
LT-1899 19164 1.01
# 6 Screws Included
For Future Use

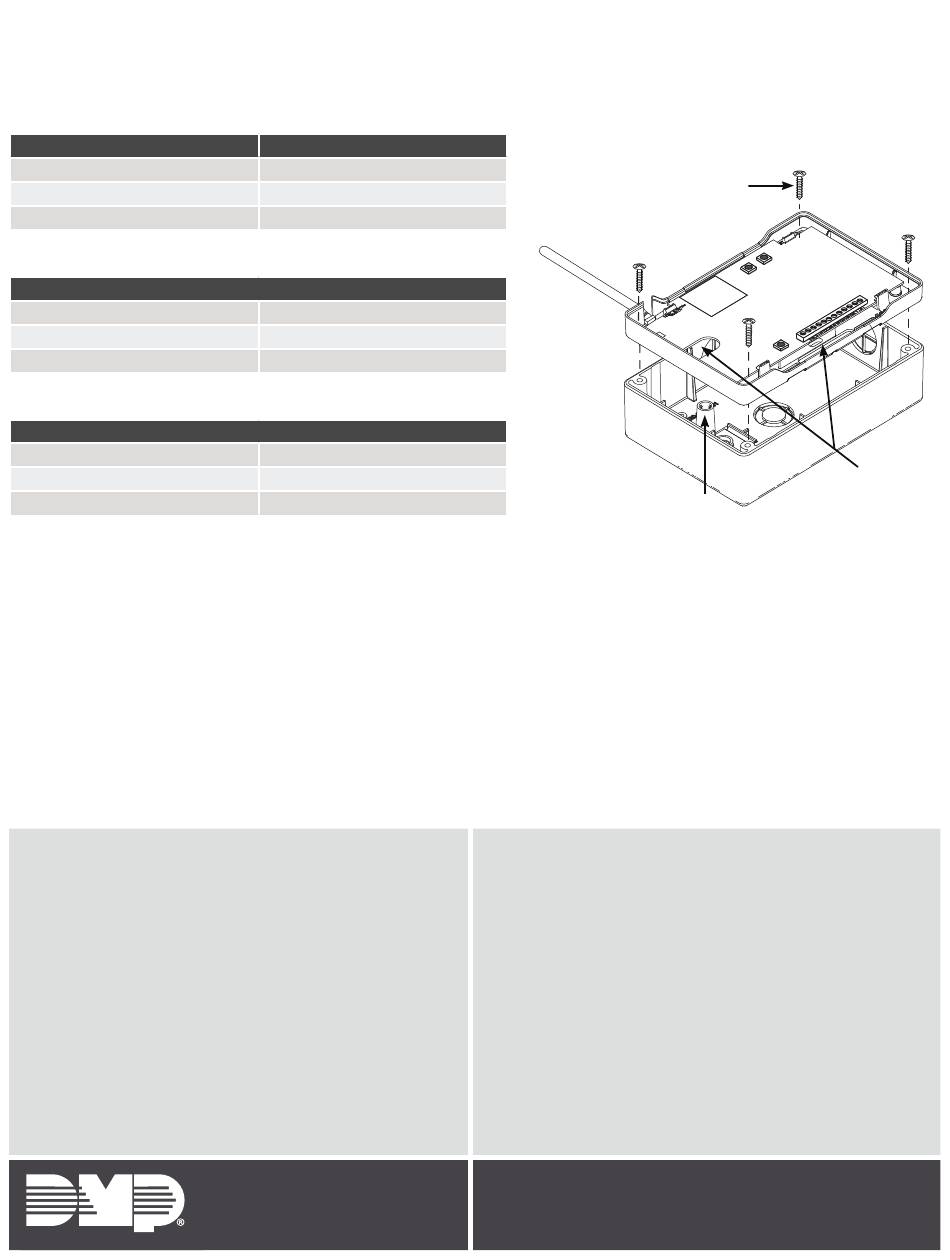

Figure 2: Model 685-R Backbox Installation
Certifications
Cellular
FCC Part 15: XMR201707BG96
IC: 10224A-201709BG96
Underwriters Laboratories (UL) Listed
ANSI/UL 864 Fire Protective Signaling Systems
(CID Capture)
I N T R U S I O N • F I R E • A C C E S S • N E T W O R K S
2500 North Partnership Boulevard
Springfield, Missouri 65803-8877
800.641.4282 | DMP.com
with Backbox
Network Cable
Routing Locations
