2

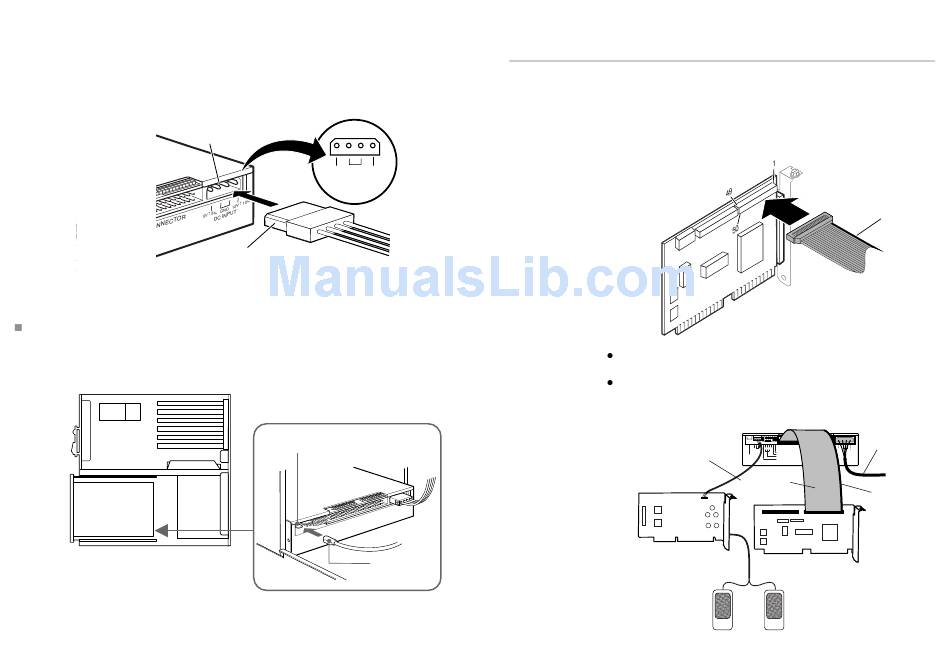

Locate an available power supply cable inside your computer and
connect it to the power supply connector on the rear of the CD-R drive
as shown.
Power Supply
Connector
Caution: Improper connection may damage the drive and void the warranty.
Frame ground
When normally installed, the drive unit is not in contact with the host
computer directly and should be grounded. Connect the frame ground tab
to one of the host computer's ground cables.
The frame ground cable recommended has a AMP 1-480435-0 housing and
170203-2 or 60711-1 contacts.
14
Installing the Drive Unit into the Computer
+ -
+ -
5V 5%
GND 12V 10%
DC INPUT
Power Supply Cable
Frame ground tab
Frame ground
cable

Host Adapter Installation

Connect the free end of the flat cable to the existing SCSI host adapter
card and install the host adapter in the computer by inserting it securely in
a system expansion slot. Refer to the operating instructions of the host
adapter for complete instructions on its installation and the assignment of
its switches.
Notes
The red edge of the flat cable must be closest to pin number 1 of the
interface card connector.
The following illustration is a sample system configuration of the
Sony CDU926S CD-R drive installation with a SCSI card.
Audio Cable
Sound Card
(Not included)
Speakers
(Not included)
Red Edge
Sony CDU926S Drive
Power
Supply
Cable
INTERFACE CONNECTOR
0 1 2
L GND R
5V 5% GND 12V 10%
AUDIO OUT
TEST MODE
PREVENT/ALLOW
DC INPUT
ID SELECT
F.GND
DEVICE TYPE
SCSI
Cable
Red Edge
(Not included)
1
49
50
2
SCSI Card
(Not included)
Installing the Drive Unit into the Computer
15
