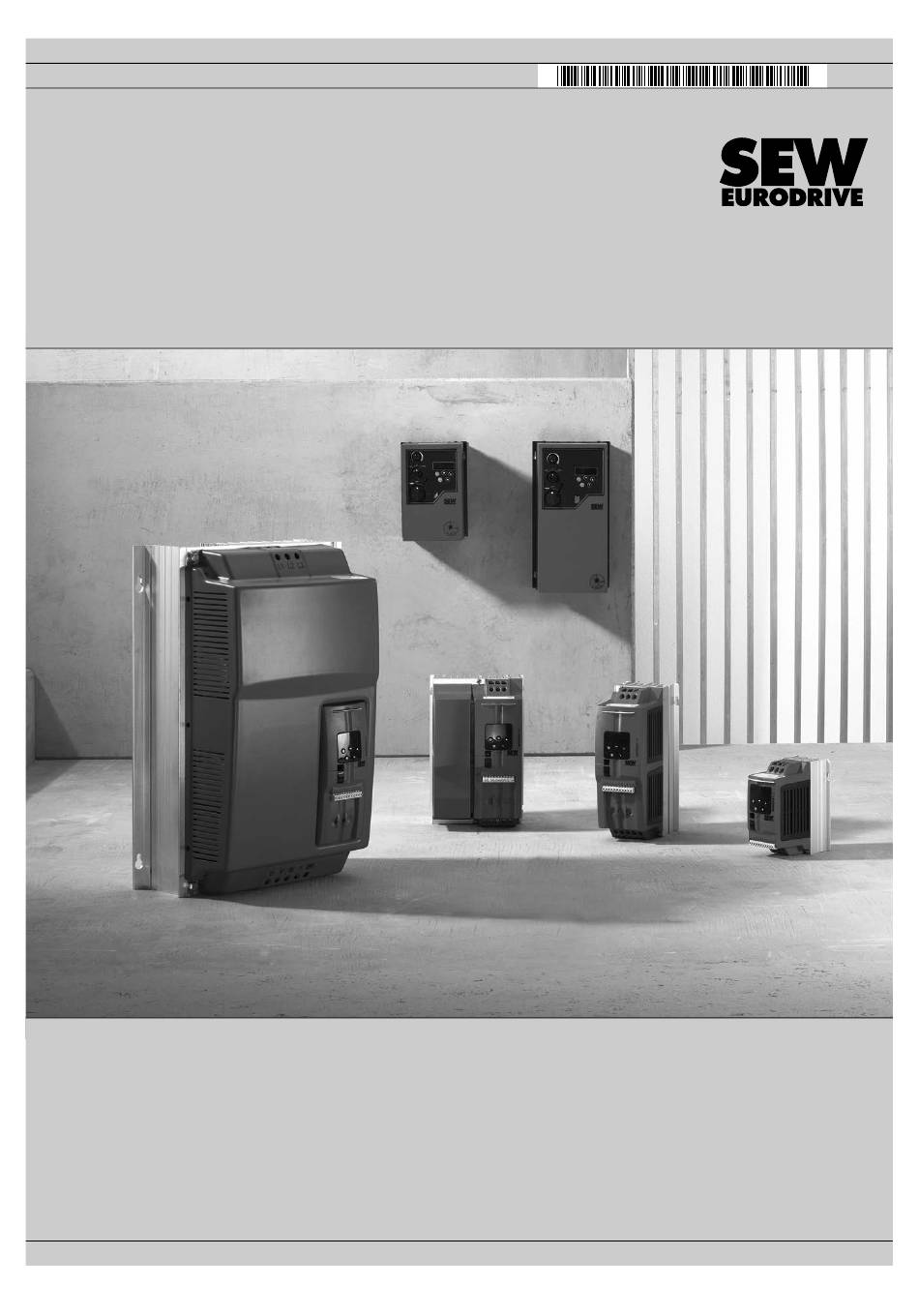

- Page 1 Drive Electronics \ Drive Automation \ System Integration \ Services Operating Instructions ® MOVITRAC LTE-B / LTP Accessories Edition 07/2009 16667611 / EN Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
- Page 2 SEW-EURODRIVE—Driving the world Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
-
Page 3: Table Of Contents
1 Important Notes....................4 How to use the operating instructions ............4 Structure of the safety notes ..............4 Right to claim under limited warranty ............5 Exclusion of liability ................... 5 Copyright notice ..................5 Waste disposal..................6 2 Safety Notes ...................... 7 Preliminary information ................ -
Page 4: Important Notes
Important Notes How to use the operating instructions Important Notes Operating Instructions How to use the operating instructions The operating instructions are an integral part of the product and contain important information on operation and service. The operating instructions are written for all employees who assemble, install, startup, and service this product. -
Page 5: Right To Claim Under Limited Warranty
Important Notes Right to claim under limited warranty Unless the information in the operating instructions is adhered to, it will be impossible to ensure: • Trouble-free operation • Fulfilment of any rights to claim under guarantee Consequently, read the operating instructions before you start working with the product! Right to claim under limited warranty Adhering to the operating instructions is a prerequisite for fault-free operation and the... -
Page 6: Waste Disposal
Important Notes Waste disposal Waste disposal Please dispose of the following parts in accordance with the current regulations: • Electronics scrap (printed-circuit boards) • Plastic (housing) • Sheet metal • Copper Operating Instructions – MOVITRAC® LTE-B / LTP Accessories Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... -
Page 7: Safety Notes
Safety Notes Preliminary information Safety Notes The following basic safety notes must be read carefully to prevent injury to persons and damage to property. The operator must ensure that the basic safety notes are read and observed. Make sure that persons responsible for the plant and its operation, as well as persons who work independently on the unit, have read through the operating instruc- tions carefully and understood them. -
Page 8: Target Group
Safety Notes Target group Target group Any mechanical work may only be performed by adequately qualified personnel. Quali- fied personnel in this context are persons who are familiar with the setup, mechanical installation, trouble shooting and maintenance for this product. Further, they are quali- fied as follows: •... -
Page 9: Transport
Safety Notes Transport Transport Immediately upon receipt, inspect the shipment for any damage that may have occurred during transportation. Never install or start up damaged products. In the event of damage please submit a complaint to the transport company immediately. Installation / assembly The units must be installed and cooled according to the regulations and specifications in this documentation. -
Page 10: Electrical Connection
Safety Notes Electrical connection Electrical connection Observe the applicable national accident prevention guidelines when working on live frequency inverters (e.g. BGV A3 for Germany). During installation, observe the specifications regarding cable cross sections, fusing and protective conductor connection. Protective measures and protection devices must comply with the regulations in force (e.g. -
Page 11: Operation And Servicing
Safety Notes Operation and servicing 2.10 Operation and servicing WARNING Dangerous voltages are present in the output terminals and the cables and motor terminals connected to them when the unit is switched on. The unit is not necessarily deenergized when the LEDs and the 7-segment display are off. -
Page 12: Braking Resistors
Braking Resistors Flat design braking resistors Braking Resistors Flat design braking resistors Braking resistor type Protection rating IP20 Protection rating IP55 BW LT 100 002 BW LT 050 002 55 Part number 1820 8770 1821 8342 Resistance value 100 R 50 R ®... - Page 13 Braking Resistors Flat design braking resistors 3.1.1 Technical Data Resistor Part number Technical Data Dimensions [mm] [inch] BW LT 100 002 1820 8770 200 Watt continuous, 188 x 41 x 9 7.402 x 1.614 x 0.354 12 kW peak for 0.125 s BW LT 050 002 55 1821 8342 330 x 80 x 12 12.99 x 3.150 x 0.472...
- Page 14 Braking Resistors Flat design braking resistors 3.1.3 Easy startup ® • For MOVITRAC LTE-B drives: To enable the brake chopper set Parameter 34 to "1". ® • For MOVITRAC LTP drives: To enable the brake chopper set Parameter 2-23 to one of the following: –...
-
Page 15: Rfi Line Filters
RFI Line Filters EMC emissions RFI Line Filters Rear or side mounting filters for compliance with EMC standards for conducted emis- sions. • Functionality – Easy to install and retrofit – Reduced electrical wiring time due to provision of filter-drive cables –... -
Page 16: Technical Data
RFI Line Filters Technical data Technical data Type NF LT 2B1 010 NF LT 5B3 006 NF LT 2B1 016 NF LT 5B3 016 NF LT 5B3 030 Drive Size Part No. 18201571 18201601 18201598 18201628 18201636 Supply voltage 220 – 240 220 –... -
Page 17: Dimensions
RFI Line Filters Dimensions Dimensions 65782AXX Type NF LT NF LT NF LT NF LT NF LT 2B1 010 5B3 006 2B1 016 5B3 016 5B3 030 Size Dimensions [mm] 186.6 [inch] 3.54 4.49 7.35 [mm] 146.6 [inch] 2.36 2.76 5.77 [mm] [inch]... -
Page 18: Easy Startup
RFI Line Filters Easy startup Easy startup ® • RFI line filters are designed to slide on to the back of the MOVITRAC LTP heatsink, ® creating a simple integrated assembly. With MOVITRAC LTE-B the filter is mounted next to the unit. •... -
Page 19: Line Chokes
Line Chokes Easy startup Line Chokes 54801AXX Most types of drive products create supply harmonic distortion due to the configuration of the power input circuit. Line chokes reduce supply harmonic distortion and protect the ® MOVITRAC LT against harmful supply disturbances. ®... -
Page 20: Technical Data
Line Chokes Technical data Technical data Supply Rated current Inductance / Type Part number IP-rating Size Phase voltage [V] Limb [mH] 18201644 ND LT 010 290 21 220 – 240 V 18201652 ND LT 025 110 21 18201660 IP00 ND LT 006 490 53 18201679 380 –... -
Page 21: Dimensions
Line Chokes Dimensions Dimensions 1-phase circuit L1’ L’ 64028AXX Supply Drive ∅ D Type Weight [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [kg] [lb] 3.07 3.07 3.15 2.20 1.93 4.8 × 9 0.19 × 0.35 2.43 ND LT 010 290 21 3.35... - Page 22 Line Chokes Dimensions 3-phase circuit Ø D 64029AXX Supply Drive ∅ D Type Weight [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [kg] [lb] 3.74 2.20 4.21 2.20 1.69 4.8 × 9 0.19 × 0.35 2.87 ND LT 006 480 53 4.92 2.80...
-
Page 23: Output Chokes
Output Chokes Dimensions Output Chokes 54803AXX! ® MOVITRAC LT units, like the majority of other inverter drives, have unfiltered outputs. In the majority of applications this will give satisfactory performance, however, in a small number of applications output filtering is strongly recommended to improve system func- tionality, reliability and longevity. -
Page 24: Technical Data
Output Chokes Technical Data Technical Data Rated Rated Inductance / Unit Type Part number IP-rating Size Phase voltage [V] current [A] Limb [mH] 18201695 HD LT 008 200 53 18201709 LTE / LTP HD LT 012 130 53 18201717 HD LT 030 050 53 IP00 18201725 0.22... -
Page 25: Dimensions
Output Chokes Dimensions Dimensions L1’ L2’ L3’ PE’ ØD 64032AXX ∅ D Type Weight [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [kg] [lb] 3.94 3.54 2.95 2.36 1.89 0.16 3.31 HD LT 008 200 53 4.92 4.53 3.35... -
Page 26: Index
Index Index Braking resistors ..........12 Safety notes ............. 7 Easy startup..........14 Installation and startup....... 9 Flat design ..........12 Operation and servicing......11 Installation ..........13 Servicing ............11 Technical data ......... 13 Startup.............. 9 Symbols, explanation ........4 Chokes, line (input) ........
