Saunders® I-VUE

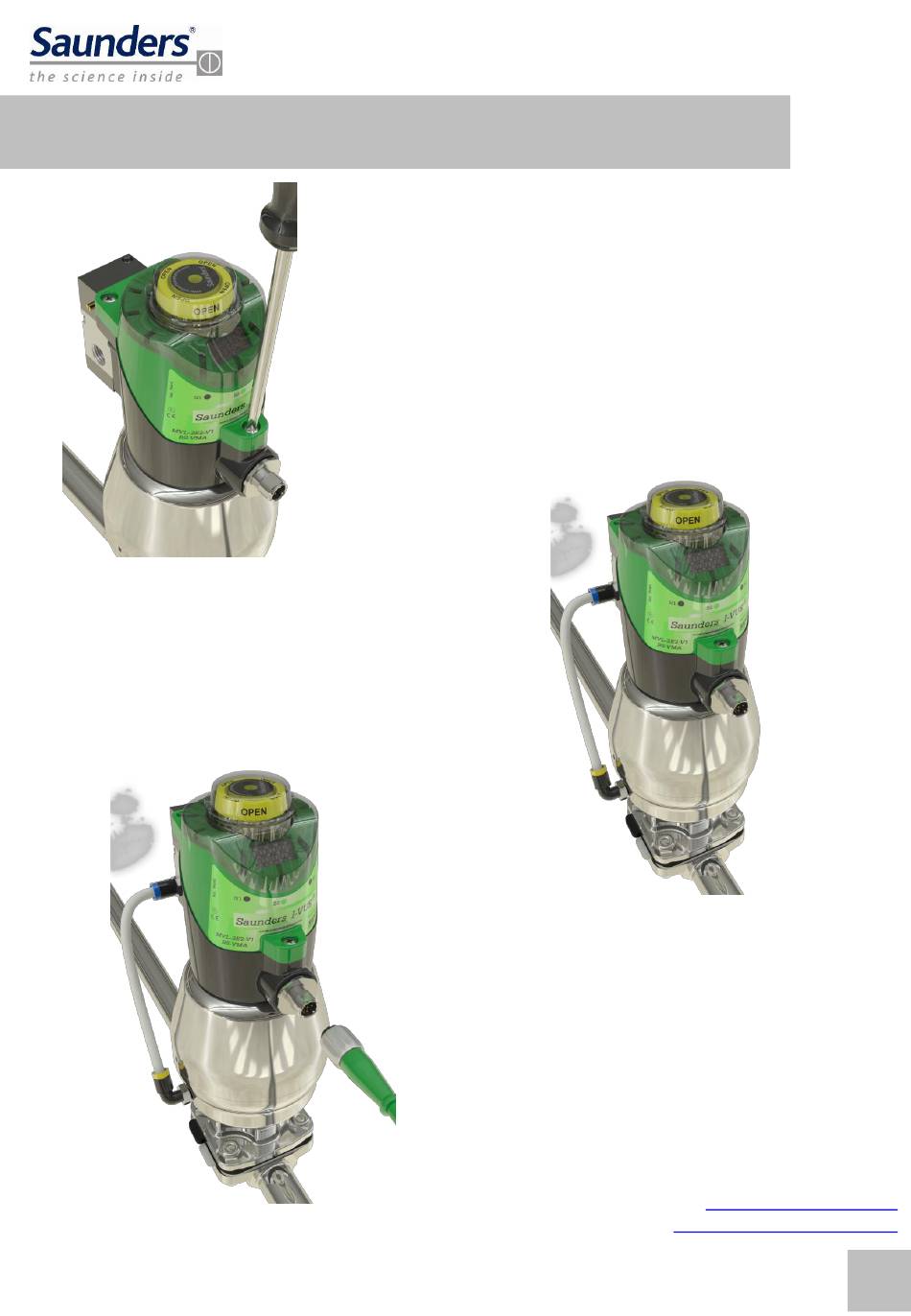

5) Connect any air fittings and tube to the actuator
(and I-VUE solenoid if integral solenoid is fitted)
Note: Supply pressure not to exceed 8 bar (116 PSI)
Basic Installation Guide
4) Re-attach sensor electronics module to the sensor
mounting base via the 3 screws
6) Connect power supply and switch ON
When the sensor is turned on, it performs a
self-check
illuminate and LEDs flash). After the self-
check the LEDs indicate the valve position
and the display will show the partial count
number if the factory settings for the sensor
are unchanged.
Rev 1.00
(the Smart Window
www.saundersI-VUE.com
www.cranechempharma.com
