Saunders® I-VUE
Ensure "HSol" has ben selected from the "Sol Option" menu before performing
calibration
Minimum required valve travel: 3mm
4) To confirm self-calibration routine hold the green S side of the magnetic key
over S2 for a few seconds.

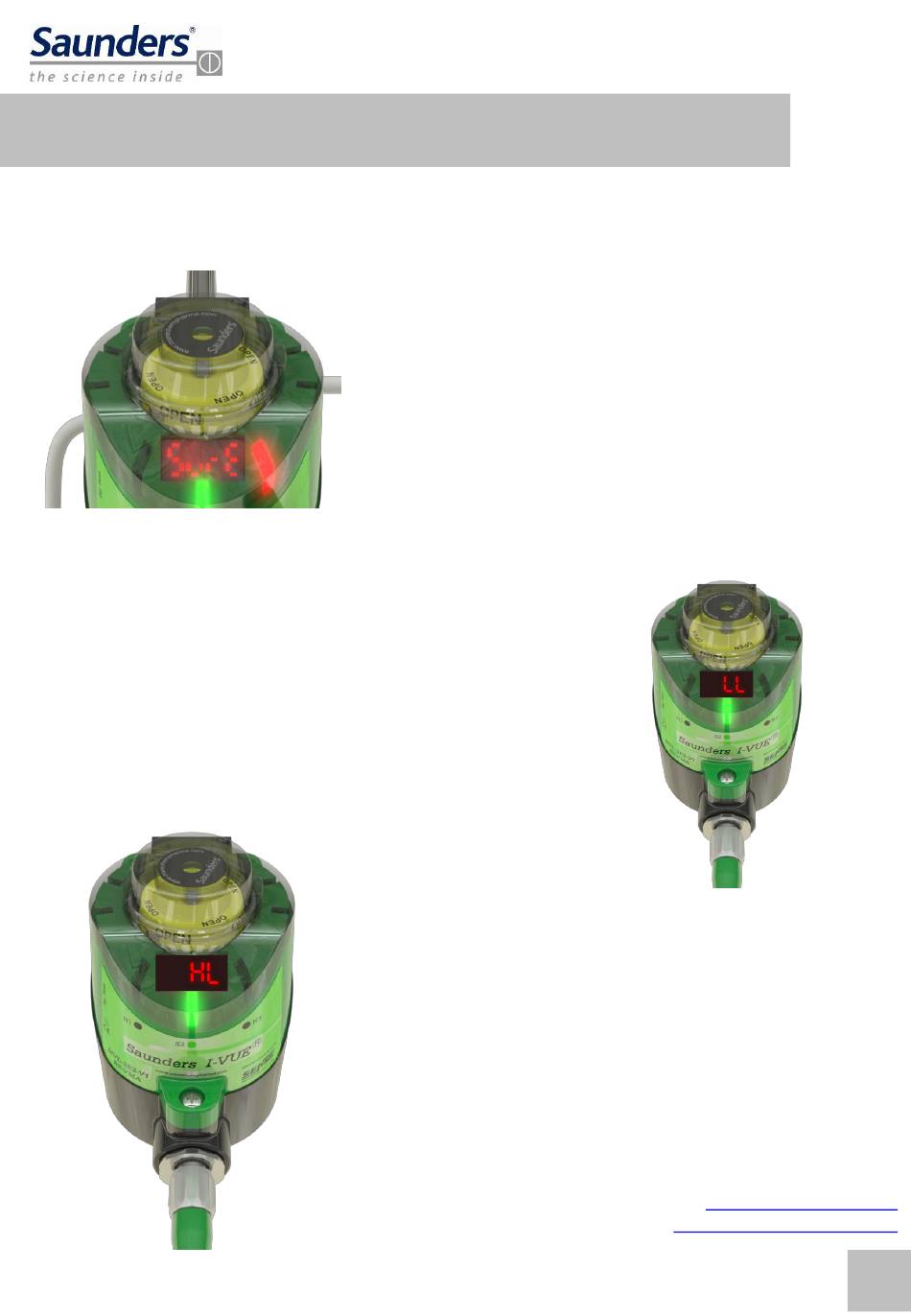

5) The smart window reads "LL" meaning Low Limit
6) Either supply or exhaust operating air to the actuator
(depending on mode) to close the valve
7) Confirm with the Green side of the key over the S2
target
Hand-Calibration
1) Hold the black N side of the magnetic key over
N3. The LED indicator will light-up red.
2) The smart window will read "SURE". This is a
positive confirmation check that you want to
perform self-calibration routine
8) The smart window reads "HL" meaning
High Limit
9) Either supply or exhaust operating air to the
actuator (depending on mode) to open the valve
10) Confirm choice with the Green South (S) side of the
key over the S2 target
11) The I-VUE LED's will flash green to confirm the
change has been made
