Saunders® I-VUE

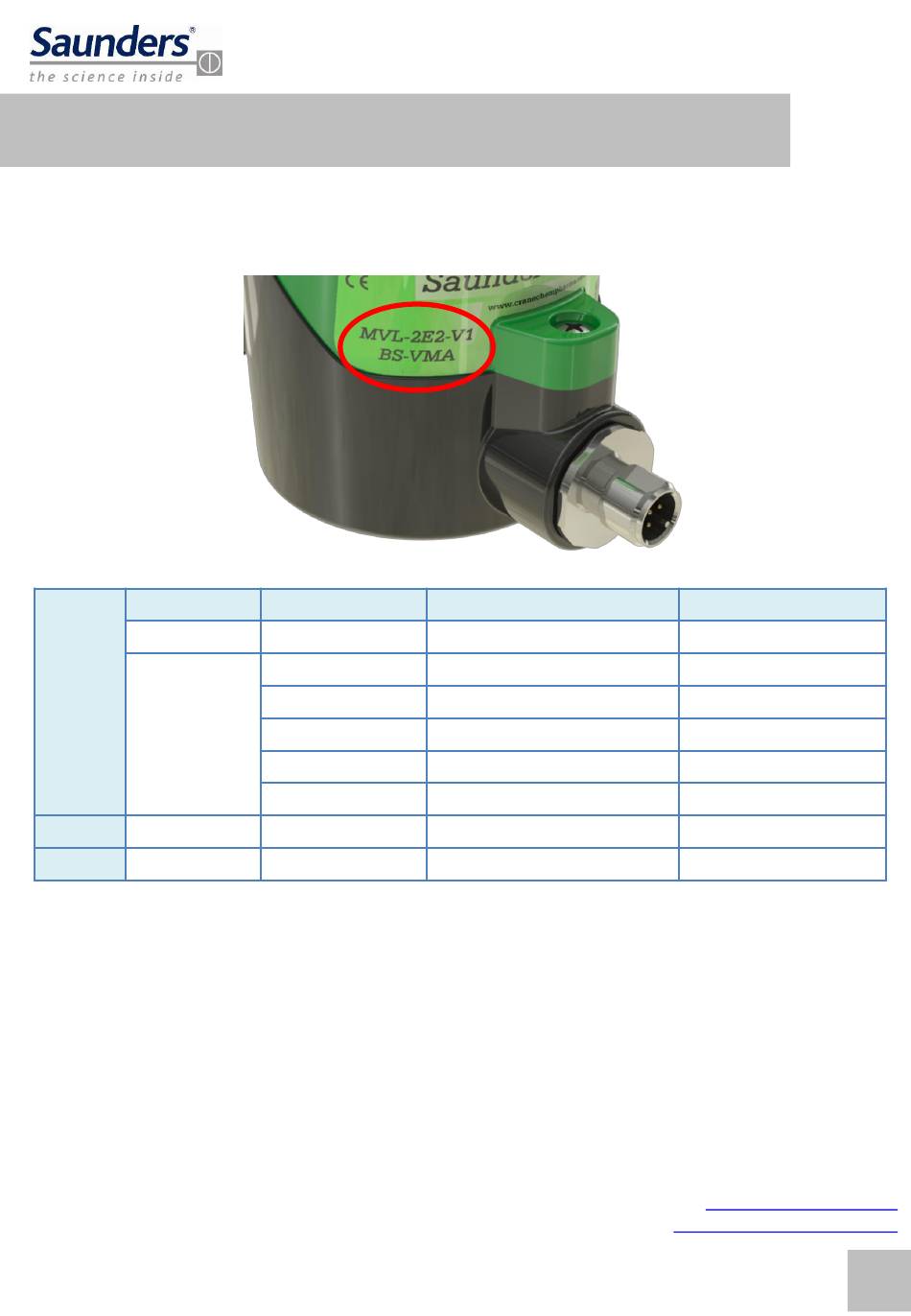

Check that the I-VUE model number is correct for the application
PRODUCT TYPE
MVL = I-VUE Sensor
Example: MVL
Meaning: I-VUE Sensor
Note:
Configurations are dependent upon communication type, network protocol etc.
Contact Saunders® for more information
Basic Installation Guide
COMMUNICATION TYPE
2E2 = Point to Point
ASI 3.1 = ASi v2.0
ASI 3.2 = ASi v2.1
ASI 3.3 = ASi v3.0
DNB = DeviceNet
420 = 4-20 mA
ASI3.2
with ASi v3.2
Rev 1.00
CONNECTION TYPE
V1 = M12 4-Pin
V15 = M12 5-Pin
VM = 7/8" 5 Pin
PG1 = Cable Gland with 1m of Cable
VY = Flat Cable Connector
V16 = M12 6-pin
VY
and Flat Cable Connector
SOLENOID TYPE
Blank = No Solenoid
BS-VMA = 1/8" NPT Aluminium
BS-VSMA = 1/8" BSP Aluminium
BS-VMX = 1/8" NPT Stainless Steel
BS-VSMX = 1/8" BSP Stainless Steel
BS-VSMA
and 1/8" BSP Aluminium Solenoid
