M O N A R C H ® 9 4 1 6 ® X L ® K N I F E
A D D E N D U M
This Addendum contains supply loading procedures for the
Thermal Direct and Thermal Transfer printers with the knife
installed. For more detailed information, refer to the
Equipment Manual on our Web site (www.monarch.com).
L o a d i n g S u p p l y f o r N o n - P e e l M o d e
This section describes how to load supply to print in non-peel
(continuous) mode. If you have a thermal direct printer (does
not require a ribbon), make sure you load thermal direct
supply. If you have a thermal transfer printer (requires a
ribbon), make sure you load thermal transfer supply.
Make sure the black mark/die cut sensor is set correctly for
your supply type. See "Adjusting the Black Mark/Die Cut
Sensor," in the Equipment Manual for more information.
Note:
If you run out of supply, do not turn off the printer
when reloading the supply. You may lose your data.
The printer resumes printing when reloaded.
1.
Remove and discard the tape from a new roll of supply.
Unwrap and discard supply with any glue residue.

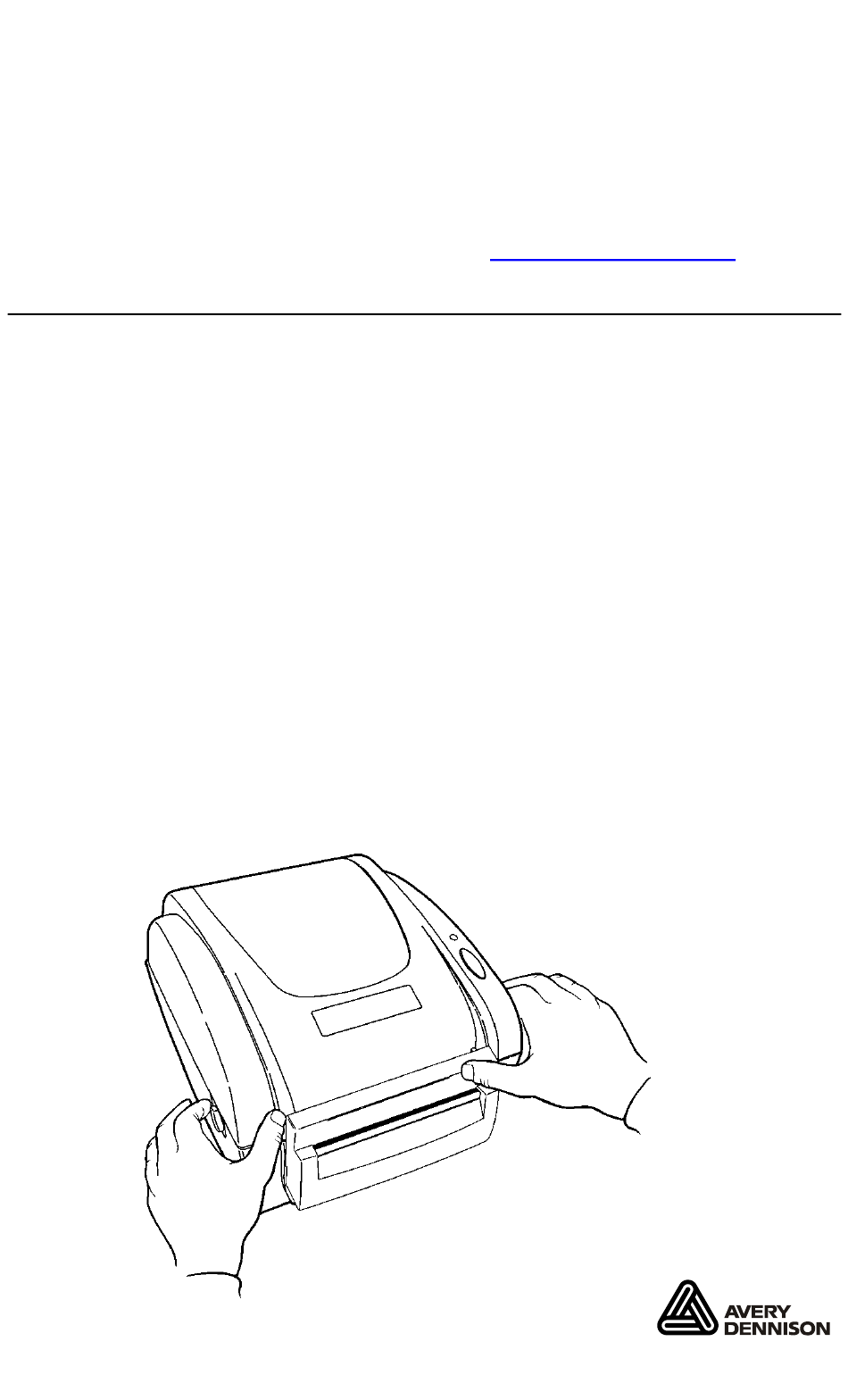

Press the release levers towards the front of the printer to
2.
release the cover.
3.
Lift open the cover.
TC9416FCAD Rev. AC 2/09
2006 Avery Dennison Corp. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MONARCH 9416 XL KNIFE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avery Dennison MONARCH 9416 XL KNIFE

Summary of Contents for Avery Dennison MONARCH 9416 XL KNIFE

  • Page 1 Remove and discard the tape from a new roll of supply. Unwrap and discard supply with any glue residue. Press the release levers towards the front of the printer to release the cover. Lift open the cover. 2006 Avery Dennison Corp. All rights reserved. TC9416FCAD Rev. AC 2/09...
  • Page 2 Remove the supply holder guide from one end of the supply holder. Supply Holder Guides 1.5-inch Suppl y Core Adapter Supply Holder Slide a roll of supply onto the supply holder. Note: If the core diameter on your roll of supply is 1 inch in diameter, remove the 1.5-inch supply core adapters.
  • Page 3 For thermal direct printers, feed the supply, printing side up, under the supply guides and over the platen roller. Supply Guides Knife Supply 10. Press the supply under the supply guides. 11. Move the supply guides so that they barely touch the edges of the backing paper.

  • Page 4: With Nicelabel Starter Edition Software

    U s i n g t h e K n i f e You can use NiceLabel software to activate the knife or Monarch Printer Control Language II (MPCLII). With NiceLabel Starter Edition Software Select Label Setup from the File menu. Select Next>.

  • Page 5: With Mpclii

    With MPCLII Set the cut_type option in the Batch Control Field to 1. Defining the Batch Control Field The batch header must precede this field. The batch control field defines the print job and applies only to the batch that immediately follows.
  • Page 6 For more information about using MPCLII, refer to the Packet Reference Manual on our Web site. K n i f e S p e c i f i c a t i o n s Cut Thickness: 0.28mm (Max.) Cut Width: 120mm Label Height: 15mm (Min.)
