E T H E R N E T S E T U P G U I D E

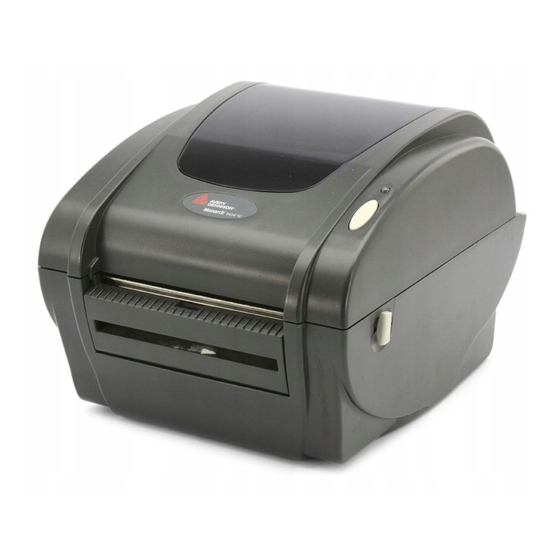

Your Monarch® 9416® XL® Thermal Transfer printer has

a factory-installed internal Ethernet print server. Use this

Setup Guide to connect the printer to your network with

the Print Server Utility (provided on the enclosed

CD-ROM).

Information in this document supercedes information in

previous versions. Check our Web site

(www.monarch.com) for the latest documentation and

release information.

C o n n e c t i n g t h e P r i n t e r

1. Turn off the printer.

2. Connect a network cable from the printer to your

network using the Ethernet port.

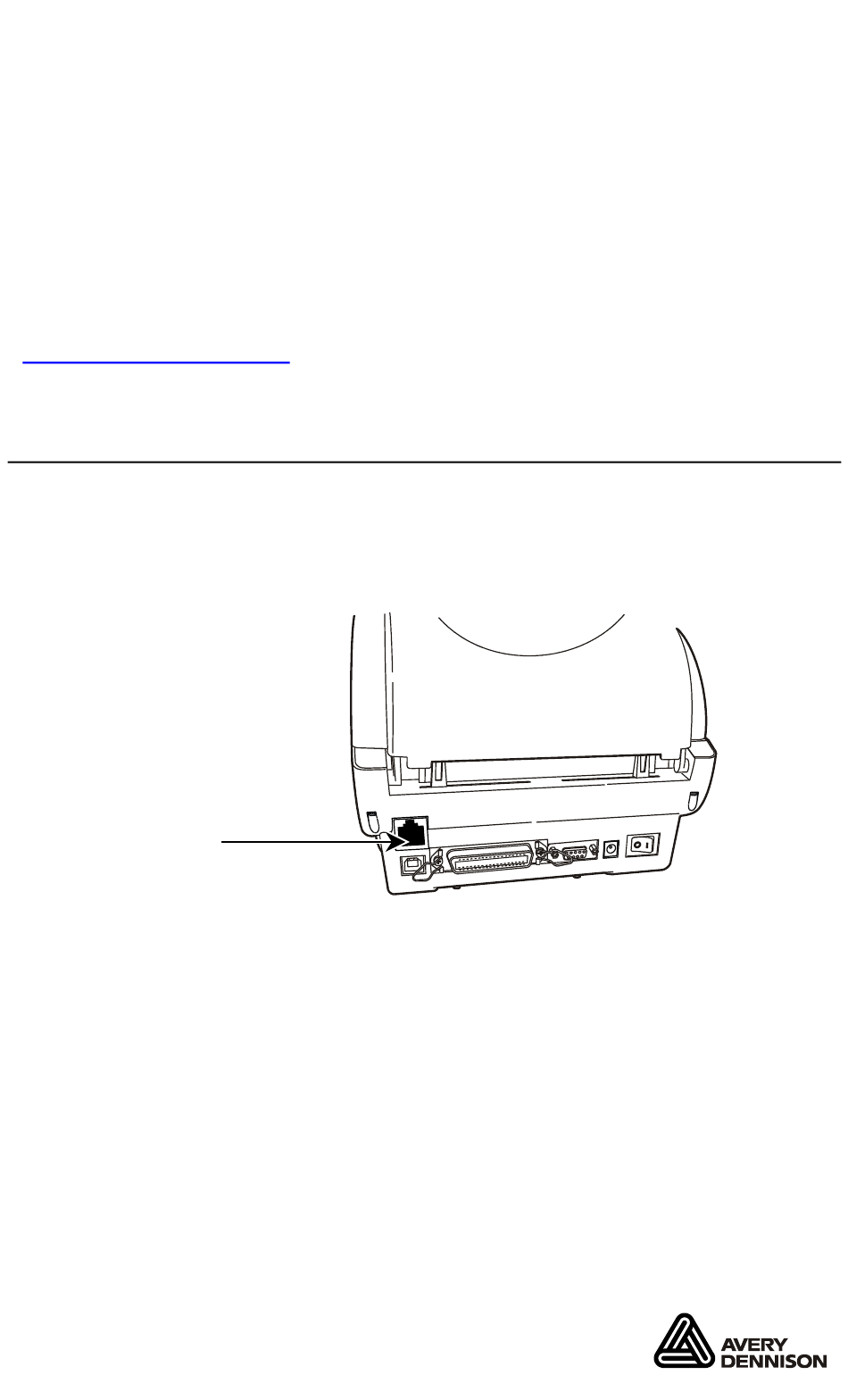

Ethernet Port

3. Turn on the printer.

Note:

When using the internal Ethernet printer server,

the printer's parallel port is disabled.

TC9416TTIESG Rev. AC 2/09

Table of Contents

Need help?

Do you have a question about the Monarch 9416 XL and is the answer not in the manual?

Page 1 2. Connect a network cable from the printer to your network using the Ethernet port. Ethernet Port 3. Turn on the printer. Note: When using the internal Ethernet printer server, the printer’s parallel port is disabled. TC9416TTIESG Rev. AC 2/09 ©2007 Avery Dennison Corp. All Rights Reserved.
Page 2 U s i n g t h e P r i n t S e r v e r U t i l i t y 1. Run the M0916Util.exe file. You see the main screen. 2. Enter any changes to the real time clock or click Get System Time to change the time.
Page 3 nfiguring Multiple Printers From the main screen , select Ethernet from the InterFace box and click Setup. You see the TCP/IP Setup screen. Click Discover Device to see the printers on your network. 3. Highlight a printer to configure and click Change I Address.
Page 4 U s i n g a W e b B r o w s e r You can configure and mana ge the printer by using your web browser. 1. From the TCP/IP Setup screen, click Web Setup. You see th e web browser screen.
