- Page 2 Each product and program carries a respective written warranty, the only warranty on which the customer can rely. Avery Dennison Corp. reserves the right to make changes in the product, the programs, and their availability at any time and without notice.
-
Page 3: Table Of Contents
T A B L E O F C O N T E N T S GETTING STARTED ........... 1-1 Overview. - Page 4 CHARACTER SETS........... . B-1 Supported Symbol Sets and Code Pages .
-
Page 5: Getting Started
G E T T I N G S T A R T E D The Monarch® 939i keyboard allows you to easily configure the printer and enter batch data. The keyboard works with the Monarch® 9416®, 9416® XL®, 9825®, 9855® and 9860 This keyboard also works with non-Monarch printers. -
Page 6: About This Manual
Throughout this manual, you see references to the term “script.” The script is the program that runs on the keyboard to perform a specific task, such as scanning or collecting data. We offer custom script writing. Contact your Sales Representative for information and pricing on custom scripts. P o w e r - U p M o d e s Your 939i keyboard has the ability to operate in “terminal”... -
Page 7: About Scripts
A b o u t S c r i p t s This manual does not cover any specific information about what may be in your script, because each script is different. Your script is written based on jobs you need to perform. A script should contain several basics features: A way to enter and exit the script. -
Page 8: Connecting The Cables To A 9416 Xl Printer
C o n n e c t i n g t h e C a b l e s t o a 9 4 1 6 X L P r i n t e r When using the keyboard with the 9416 or 9416 XL printer, the keyboard receives power from the auxiliary power supply (5V). - Page 9 C o n n e c t i n g t h e 9 3 9 I w i t h a S c r i p t t o a 9 8 0 0 When using the keyboard with a script and a 9825, 9855, or 9860 printer, the keyboard receives power from the auxiliary power supply.
- Page 10 C o n n e c t i n g t h e 9 3 9 I i n T e r m i n a l M o d e t o a 9 8 5 5 / 9 8 6 0 P r i n t e r When using the keyboard in terminal mode (no script) with a 9855 or 9860 printer, the keyboard receives power from the printer.
-
Page 11: Connecting The Scanner's Cables
C o n n e c t i n g t h e S c a n n e r ’ s C a b l e s A scanner is optional for the keyboard. You need to connect the cable to the scanner and keyboard before you can use it. -
Page 12: Using The Keyboard
U s i n g t h e K e y b o a r d The keyboard has full alphabetic keys with 10 numeric keys, 5 function keys, 4 arrow keys, and several special keys. C o n t r o l K e y s P, F, and C operate as described in terminal mode. - Page 13 Escape. Returns the display to the previous menu or clears an error. Clear. Clears the entire field. Pause. Interrupts printing. Press Pause again to resume printing. Feed. Feeds a blank label if there is no print job. Prints a label in on-demand mode. Cut.
- Page 14 1-10 Getting Started...
-
Page 15: Setting Batch Options
S E T T I N G B A T C H O P T I O N S This chapter only applies when using the keyboard in terminal mode. When using the keyboard in intelligent mode, your script controls the prompts you see and each script is different. You can select Batch Options to change which prompts appear during Batch Entry mode and set default values for those prompts. -
Page 16: Setting Prompts And Defaults
S e t t i n g P r o m p t s a n d D e f a u l t s Use the following steps to customize which prompts appear during batch entry and to specify defaults for these prompts. Press N at the Main menu, when you see Batch Options. - Page 17 Decide if you want to see this prompt in Batch Entry mode and press either to display your selection. Press N. Cut Option Decide if you want to change the default (No) and press either to display your selection. Press N. Cut Multiple Prompt? Yes Decide if you want to see this prompt in Batch Entry mode and press...
- Page 18 12. Decide if you want to change the default (No) and press either to display your selection. If you select “Yes,” the last tag in the batch is cut. The printer must feed one or two tags past the printhead to cut the last tag in the batch.
-
Page 19: Non-Knife Setup
17. Decide if you want to see this prompt in Batch Entry mode and press either to display your selection. Press N.. Quantity 1 _ _ _ _ _ _ _ _ 18. Decide if you want to change the default (1) for the quantity of tags to print in a batch. - Page 20 Decide if you want to see this prompt in Batch Entry mode and press either to display your selection. Press N. Quantity 1 _ _ _ _ _ _ _ _ Decide if you want to change the default (1) for the quantity of tags to print in a batch.
- Page 21 Print Multiple Number of copies of each tag to print as a set within a batch. A print multiple of one prints one set of one tag. A print multiple of three prints three copies of each tag as a set. If the print multiple is three and the print quantity is 15, then 15 sets of tags with three tags per set are printed (45 tags).
- Page 22 2-8 Setting Batch Options...
-
Page 23: Entering Batch Data
E N T E R I N G B A T C H D A T A This chapter only applies when using the keyboard in terminal mode. When using the keyboard in intelligent mode, your script controls the prompts you see and each script is different. This chapter explains how to enter batch data from the keyboard. -
Page 24: Entering A Batch
When a field has fixed characters, they appear as part of the data entry prompt. The fixed data stays the same, and prints on every tag that uses the format. Only the data you enter can be changed. In the example below, the first six digits are fixed characters. - Page 25 Depending on your settings in Batch Options, you may see Clear Fields? Press N (No) to keep the old data. Each field appears with the previous data. You can press N to accept the data, or change it and press N. Press R then press N (Yes) to erase the old data.
- Page 26 You may see Number of parts? 11. Type the number of times the data prints across the tag width. Press N. Cut Option If your printer has a knife and you want to cut tags, press R “Yes” and press N. If your printer does not have a knife, the Cut Option prompt does not appear.
- Page 27 If you do not specify a cut mode (cut last ticket, cut after batch, or no cut before), the knife cuts after each tag. This is the same as cut mode 1. The knife uses the last selected cut mode. For example, if you select “Cut Last Ticket”...
- Page 28 15. If you do not want to cut before the first tag in a batch, press R to display “Yes” and press N. The knife does not cut before the first tag in a batch, but does cut between each tag and after the last tag in a batch.
-
Page 29: Printing Tags Without Cutting
P r i n t i n g Ta g s W i t h o u t C u t t i n g Depending on your settings in Batch Options, some of these prompts may or may not appear. See Chapter 2, “Setting Batch Options”... -
Page 30: Using Print Multiple With Inc/Dec Fields
U s i n g P r i n t M u l t i p l e w i t h I n c / D e c F i e l d s If your tag has an incrementing or decrementing field, the print multiple is the number of tags printed as a set before incrementing or decrementing. - Page 31 Three-part tag (number of parts = 3) Cut here for a cut multiple of 1 (Cut after one tag) OR Print multiple = 1 (Prints one tag as a set) Cut here for a cut multiple of 2 (Cut after two tags) OR Print multiple = 2 (Prints two tags as a set) Entering Batch Data 3-9...
- Page 32 3-10 Entering Batch Data...
-
Page 33: Troubleshooting
T R O U B L E S H O O T I N G This chapter provides solutions to keyboard problems and explains common status code messages you may receive when using the keyboard. Problem The keyboard display is blank. The data you entered is not accepted. - Page 34 4-2 Troubleshooting...
-
Page 35: Specifications & Accessories
S P E C I F I C A T I O N S & A C C E S S O R I E S Height: 4.0 inches (102 mm) Width: 8.25 inches (210 mm) Depth: 8.75 inches (222 mm) Weight: 2.33 lbs. -
Page 36: Flat Surface Mount
F l a t S u r f a c e M o u n t Make sure all surfaces you apply the dual lock fasteners to are free from dirt and oil. If necessary, clean with isopropyl alcohol. Pull the cord through the large hole in the stand. Set the keyboard into the stand. -
Page 37: Wall Mount
W a l l M o u n t Hold the bottom of the stand against the wall (hinge side up). Mark the mounting holes with a pencil. Screw the stand onto the wall (screws not included). Pull the cord through the large hole in the stand. Set the keyboard into the stand. - Page 38 A-4 Specifications & Accessories...
-
Page 39: Character Sets
C H A R A C T E R S E T S This appendix contains a listing of the symbol sets and code pages the printer supports. S u p p o r t e d S y m b o l S e t s a n d C o d e P a g e s The CG Triumvirate typefaces support only the ANSI and DOS Code Page 437 and 850 Symbol Sets. -
Page 40: Internal (Standard And Reduced Font
I n t e r n a l ( S t a n d a r d a n d R e d u c e d F o n t ) B-2 Character Sets... -
Page 41: Bold
B o l d Character Sets B-3... -
Page 42: Ansi
A N S I B-4 Character Sets... -
Page 43: Code Page 437
C o d e P a g e 4 3 7 Character Sets B-5... -
Page 44: Code Page 850
C o d e P a g e 8 5 0 B-6 Character Sets... -
Page 45: Configuring The System
C O N F I G U R I N G T H E S Y S T E M This chapter contains information useful for your System Administrator: Accessing the Keyboard’s Main Menu. Operating in Script Mode. Configuring the Scanner. A c c e s s i n g t h e K e y b o a r d ’... -
Page 46: About The Scanner
A b o u t t h e S c a n n e r A scanner is optional for the keyboard. For more information about the scanner or other peripheral devices, refer to their User Manuals. Use this section to operate the scanner. -
Page 47: Troubleshooting The Scanner
T r o u b l e s h o o t i n g t h e S c a n n e r If the bar code does not scan: Change the scanner’s angle slightly and try again. Move the scanner four to eight inches away from the bar code. -
Page 48: Configuring The Scanner
C o n f i g u r i n g t h e S c a n n e r The scanner may already be configured to work with your ADK script. If not, use these bar codes to configure the scanner: Reset to default values. - Page 49 S e t t h e C o m m u n i c a t i o n s P o r t D e f a u l t s To set the communications port to the same defaults as the keyboard, scan the following series of bar codes, one at a time, from top to bottom.
- Page 50 You can also set the communication values by using the Keyboard’s Main Menu. The keyboard defaults are 9600 Baud, 8-bit Word Length, 2 Stop Bits, No Parity, and No Flow Control. Press X on the keyboard within the first two seconds when the printer/keyboard are turned on to see the Keyboard’s Main Menu.
- Page 51 S e t t h e M i n i m u m B a r C o d e W i d t h To scan single-digit bar codes, scan the following series of bar codes, one at a time, from top to bottom. Configuring the System C-7...
- Page 52 C-8 Configuring the System...
Need help?
Do you have a question about the MONARCH 939I and is the answer not in the manual?
Questions and answers

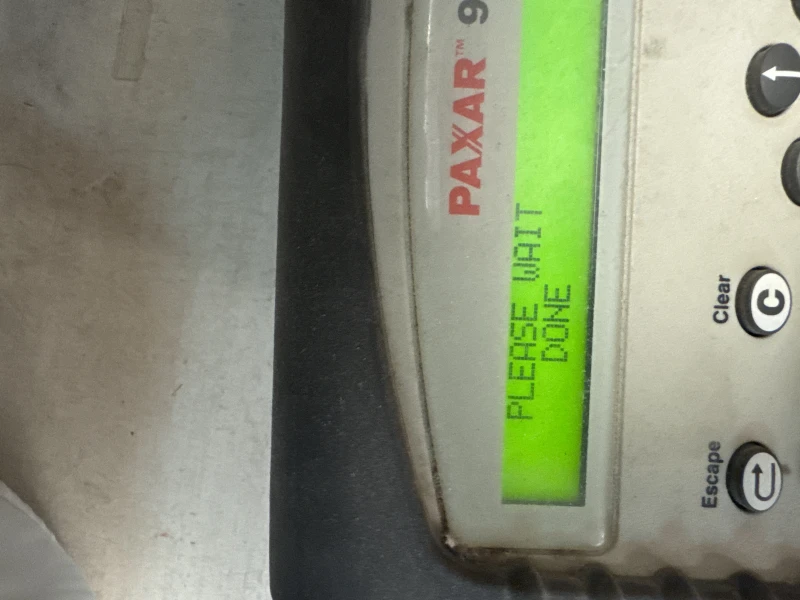

Paxar 939 is stuck on please wait done screen
The provided context does not contain specific troubleshooting steps for the Avery Dennison Monarch 939i being stuck on the "please wait done" screen. However, you can try the following general troubleshooting steps:
1. Power Cycle the Device – Turn off the keyboard and printer, unplug them from power, wait for a few minutes, then plug them back in and turn them on.
2. Check Cable Connections – Ensure all cables are properly connected between the keyboard and the printer.
3. Reset the Keyboard – If the device has a reset function, try performing a reset.
4. Verify Printer Status – Ensure the connected printer is powered on and ready.
5. Check for Hardware Issues – If the issue persists, there may be a hardware fault requiring service.
If the problem continues, refer to the user manual or contact Avery Dennison support for assistance.
This answer is automatically generated
