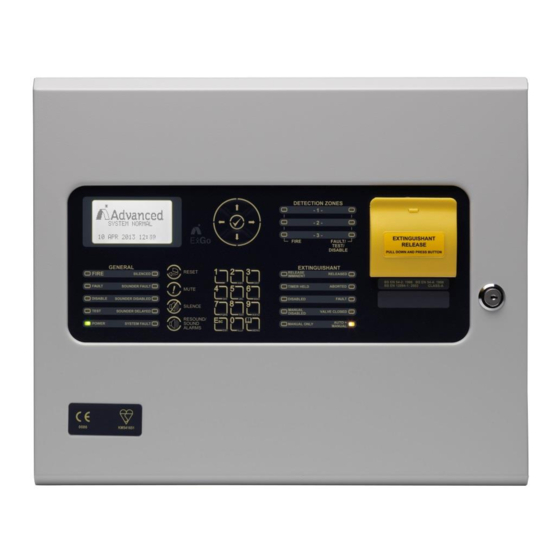

Extinguishing control panel
Hide thumbs Also See for ExGo Series:

Advertisement

Extinguishing Control Panel
User Instructions
The operation and functions described in this manual are available from Software Version Ex-3000-V2.05C onwards.
The operation and functions described in this manual are available from Software Version Mx5000-050-02 onwards.
www.acornfiresecurity.com
www.acornfiresecurity.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExGo Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advanced ExGo Series

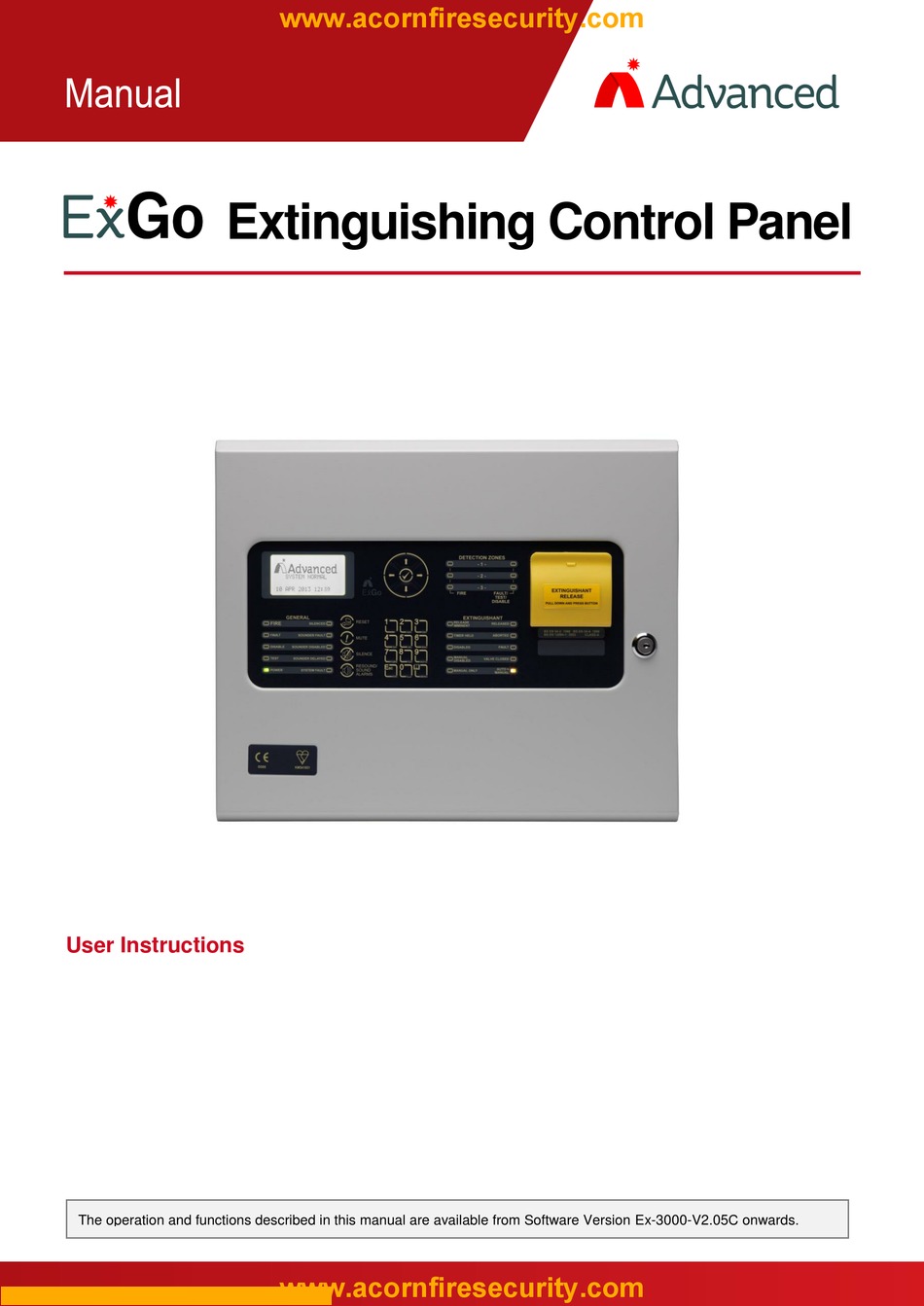

  • Page 1 www.acornfiresecurity.com Extinguishing Control Panel User Instructions The operation and functions described in this manual are available from Software Version Mx5000-050-02 onwards. The operation and functions described in this manual are available from Software Version Ex-3000-V2.05C onwards. www.acornfiresecurity.com...
  • Page 2: Table Of Contents

    www.acornfiresecurity.com Table of Contents Page INTRODUCTION TANDARDS AUTIONS AND ARNINGS ESCRIPTION OPERATION NTRODUCTION 2.1.1 Access Levels 2.1.2 Front Panel Controls and Indications 2.1.2.1 Display 2.1.2.2 LED Indications 2.1.2.3 Manual Release Button 2.1.2.4 Control Buttons 2.1.2.5 Menu and Navigation Buttons 2.1.2.6 Key-Switches 2.1.2.7 Buzzer...
  • Page 3: Introduction

    www.acornfiresecurity.com 1 Introduction 1.1 Standards The ExGo Gas Extinguishing Control Panel conforms to the following standards: BS EN12094-1: 2003 Extinguishing Control Device BS EN54-2: 1998 Control and Indicating Equipment BS EN54-4: 1998 Power Supply Equipment BS EN60950: 2000 Safety of information technology equipment BS EN50130-4: 1996 Product Family Standard Electromagnetic Compatibility Directive 89/336/EEC (and the amending directive 92/23/EEC)
  • Page 4: Operation

    www.acornfiresecurity.com Operation 2.1 Introduction These instructions cover the operation and use of the panels. 2.1.1 Access Levels The panel operation is protected from inadvertent and erroneous misuse by means of four access levels. These levels are as follows:  Level 1 Untrained user ...
  • Page 5: Led Indications

    www.acornfiresecurity.com Normal Display Non-normal Display Typical Menu Display [System status] [Level 2 Menu] 1 of 1 conditions: VIEW DETECTION ZONE3 TEST SYSTEM NORMAL OPEN CIRCUIT MODES DISABLE / ENABLE 22 AUG 2007 16:39:00 [Release status] EXIT LEVEL 2 UNAFFECTED Release Imminent Release Activated Release Complete [Release status]...
  • Page 6: Manual Release Button

    www.acornfiresecurity.com 2.1.2.2.3 EXTINGUISHANT Function Colour Description Indicates (flashing) that the release of extinguishant is imminent. The indication will turn to RELEASE IMMINENT steady when the signal to release the extinguishant has been activated. Indicates that the release of extinguishant has occurred and the panel has detected the flow RELEASED of the extinguishant released.
  • Page 7: Menu And Navigation Buttons

    www.acornfiresecurity.com 2.1.2.5 Menu and Navigation Buttons Press to scroll through Menu Options. Press to display more information. Press to scroll through menu Options. Press to scroll through lists of zones or devices. Press to confirm entry of numeric information entry. Press to confirm selection of a menu option.
  • Page 8: Enable Controls

    www.acornfiresecurity.com 2.1.3 Enable Controls Controls are normally disabled. If a level 2 Access key-switch is fitted use this in preference to passwords. To enable the control keys or gain access to the Level 2, press the Menu button. The display shows the following: [CONTROLS DISABLED] Enter Your Password...
  • Page 9: Operating Conditions

    www.acornfiresecurity.com 2.2 Operating Conditions 2.2.1 Fire Alarm Condition The display shows location / origin of the fire alarm and the total [Fire Detected] number of zones in a fire alarm condition. FIRE STARTED: ZONE 1 If two or more zones enter the fire alarm condition, the display also TOTAL FIRES: 1 shows the location of the last zone to enter a fire alarm condition.
  • Page 10 www.acornfiresecurity.com RELEASE ACTIVATED When the countdown timer has elapsed, the actuating output is activated to start the release of the extinguishant. 00:00:05 Elapsed The display now shows the time elapsed since the release of extinguishant commenced. In addition, the Release Imminent LED turns ON steady. GAS RESET INHIBITED When the discharge is complete (either time elapsed or flow RELEASE ACTIVATED...
  • Page 11: Hold Condition

    www.acornfiresecurity.com 2.2.3 Hold Condition COUNTDOWN ON HOLD If any hold button is activated, the imminent release countdown is (Remove HOLD resume) held for as long as the button is pressed. The display shows the HOLD condition and the TIMER HELD LED is illuminated.
  • Page 12: Warning Condition

    www.acornfiresecurity.com 2.2.6 Warning Condition [System status] If the panel detects an extinguishant warning condition, the display will indicate the number and nature of the warnings. The internal 1 of 1 conditions: buzzer will sound with an intermittent tone and the GENERAL PRESSURE MONITOR FAULT LED and any other specific FAULT LED indications will be OPEN CIRCUIT...
  • Page 13: Level 2 Menu Functions

    www.acornfiresecurity.com 2.4 Level 2 Menu Functions The following table gives a list of the Level 2 Menu Functions and a brief description for each function. Menu Option Sub Menu / Comments / Description Item VIEW FAULTS View any current fault conditions recorded. DISABLES View any current disablement conditions.
  • Page 14: Warnings

    www.acornfiresecurity.com 2.4.1.3 Warnings [Warning Status] If there are warning conditions in the extinguishant system present, 1 of 2 the display will show the number of conditions and a list of the VALVE MONITOR INPUT. warning conditions. >VALVE CLOSED Press the  buttons to scroll through the list of warnings. PRESSURE MONITOR >LOW PRESSURE Press the ESC button to return to the previous menu.
  • Page 15: Software Versions

    www.acornfiresecurity.com In the above examples: [1] The control panel recognised and recorded an open-circuit fault condition on the wiring of Detection Zone 3. [2] User 4 disabled the operation of, and fault reporting from, Detection Zone 3. [3] The control panel recognised and recorded a fire alarm condition on Detection Zone 3. 2.4.1.4.2 Alarm Counter Alarm Counter.
  • Page 16: Zones

    www.acornfiresecurity.com 2.4.2.1 Zones The Test Zones function provides the means to implement a one-person walk test in order to test specific call points or detectors in one or more zones. To test the detection zone circuits in accordance with the recommended weekly, monthly and annual test requirements, select the Test –...
  • Page 17: Manual Triggers

    www.acornfiresecurity.com 2.4.2.4 Manual Triggers On selection, the display shows: Manual Trigger Test Activate any manual trigger device (on the ExGo 3001 Control Panel, on the ExGo 3030/3031 Remote Status Indicator or other MANUAL TRIGGER external manual trigger. The buzzer will sound and the display will change from OFF to ACTIVE to show the operation of the manual trigger.
  • Page 18: Disable / Enable

    www.acornfiresecurity.com 2.4.4 Disable / Enable [Disabled List] Press the  buttons to scroll through the list and highlight the ZONE1 ENABLED. required option. ZONE2 ENABLED Press the ✔ button to select between ENABLED and DISABLED ZONE3 ENABLED conditions. If a circuit or function is disabled, then the General Man Release ENABLED Disabled LED is illuminated along with any specific circuit / Extinguish...
  • Page 19 www.acornfiresecurity.com This page is intentionally left blank www.acornfiresecurity.com...
  • Page 20 www.acornfiresecurity.com This page is intentionally left blank www.acornfiresecurity.com...
  • Page 21 www.acornfiresecurity.com In the event of a fire alarm, call: - Quick Reference Guide TEL: For Service & Maintenance, contact: - Series Controls and Indications Navigation Buttons Detection Zone Status Manual Release Button Navigation Buttons Press to scroll through Menu Options. D E T E C T I O N Z O N E S Press to display more - 1 -...
  • Page 22 www.acornfiresecurity.com This page is intentionally left blank www.acornfiresecurity.com...
  • Page 23 www.acornfiresecurity.com USER NOTES www.acornfiresecurity.com...
  • Page 24 www.acornfiresecurity.com www.acornfiresecurity.com...
