Zonal LED Indicators

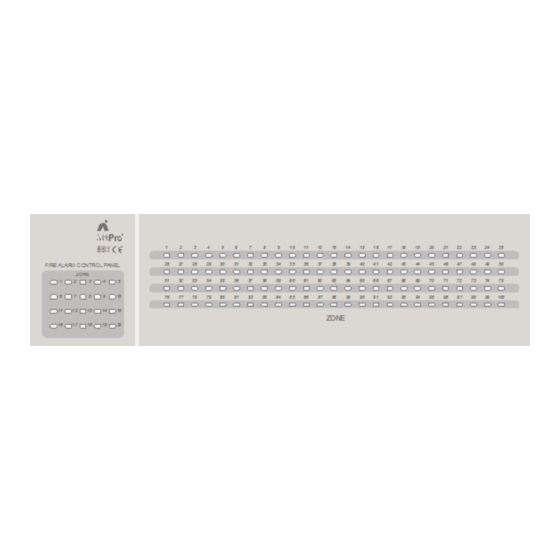

The zonal LED indicator cards are a range of panel mounted peripheral modules that can be added to the
MxPro 4 series of control panels. The cards are available in numerous configurations and provide individual
indication of the zone(s) in fire. The units fully support the MxPro 4 systems DynamiX zoning facilities on
networked or larger stand-alone systems and can be used to provide individual zonal LED indication at one
location.
The Mxp-024F and Mxp-025F are 20 zone units, which are fitted to the front display plate on an MxPro 4
series control panel. The Mxp-013-050F, Mxp-013-100F and Mxp-200F incorporate 50, 100 or 200 LED
indicators respectively and are compatible with all of the MxPro 4 series multi-loop panels. The zone range on
the 100 way card can be assigned using an on board DIL switch and multiple cards can be placed in banks to
allow indication of up to 1000 zones using standard units.
The cards are capable of simultaneously displaying all zones in a fire condition and incorporate a unique
power saving feature to minimise the power drawn from the control panel in the event of a major fire. Several
other options are also available within the MxPro 4 range for an application where indication of fire signals
from zones in addition to the panels' graphical display is required. These options include Advanced Mimic
Units, graphics systems and printers.
The operation and functions described in this manual are available from Software Version 4000-016-00 onwards.
www.acornfiresecurity.com
Insert Image
www.acornfiresecurity.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mx Pro 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advanced Mx Pro 4

  • Page 1 Several other options are also available within the MxPro 4 range for an application where indication of fire signals from zones in addition to the panels’ graphical display is required. These options include Advanced Mimic Units, graphics systems and printers.
  • Page 2 www.acornfiresecurity.com Specifications & Ordering: Models, Sales Order Parts: Part No: Mxp-024F: 20 Zone LED Card and label fitted to a Mx-4100 control panel Mxp-025F: 20 Zone LED Card and label fitted to an Mx-4200, Mx-4400 or Mx-4800 Mxp-013-050: 50 Zone LED Card and label fitted to an Mx-4200, Mx-4400 or Mx-4800. Mxp-013-100: 100 Zone LED Card and label fitted to an Mx-4200, Mx-4400 or Mx-4800 Mxp-013-200:...
  • Page 3 www.acornfiresecurity.com Table of Contents Page INSTALLATION .............................. 4 -024F ............................... 4 -025F ............................... 4 -013-XXXF ............................5 1.3.1 Mxp-013-050 / Mxp-013-100 ......................5 1.3.2 Mxp-013-200 ............................5 CONFIGURATION ............................6 OPERATION: ..............................6 LED I ...................... 6 ESTING THE ONAL NDICATORS www.acornfiresecurity.com...
  • Page 4 www.acornfiresecurity.com 1 Installation The Zonal LED Indicator Cards are normally factory fitted options. These instructions cover the installation, replacement and configuration of spare assemblies. Isolate ALL sources of power before installing or removing printed circuit boards. 1.1 Mxp-024F The Mxp-024F is mounted on the chassis fascia plate using 4x M3 screws. To replace a card: a) Unplug the ribbon cable from the LED card.
  • Page 5 www.acornfiresecurity.com 1.3 Mxp-013-XXXF The Mxp-013-050, Mxp-013-100 and Mxp-200 are mounted onto a fascia plate on the door. The cards are attached to the fascia plate using 6 nuts. 1.3.1 Mxp-013-050 / Mxp-013-100 To replace a card: a) Unplug the ribbon cable from the LED card. b) Remove the 6x nuts and remove the card.
  • Page 6 www.acornfiresecurity.com 2 Configuration The Mxp-024 and Mxp-025 are pre-configured to show zone numbers 1…20. The Mxp-013 can be configured from a DIL switch to any of the zone ranges in the table below. DIL switch (SW1) settings Zone Range (Note 1) 1 - 100 101 - 200 201 - 300...
  • Page 7 www.acornfiresecurity.com USER NOTES www.acornfiresecurity.com...
  • Page 8 www.acornfiresecurity.com www.acornfiresecurity.com...

This manual is also suitable for:

Mxp-024fMxp-025fMxp-013-050Mxp-013-100Mxp-013-200
