  • Page 1 MA-35U P. A. AMPLIFIER WITH USB PLAYER N Instruction Manual...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
  • Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

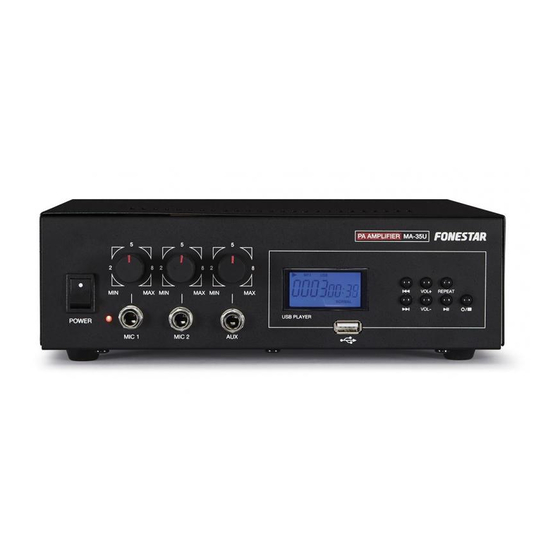

  • Page 4 CONTROLS AND FUNCTIONS FRONT PANEL LED power indicator. Microphone 1 volume control. Microphone 2 volume control. Auxiliary input volume control. LCD display. The display shows the stage of reproduction, the number of the song playing at that moment, the exact time of the track as well as the chosen repetition mode. 7: button to jump back to the beginning of the song that is being played at that moment.
  • Page 5 BACK PANEL 1.- COM 4, 8 and 16 Ω: 4-8-16 Ω low impedance speaker output terminal. To connect the line between the COM terminal and the desired impedance. 2.- DC FUSE 5 A. (DC fuse compartment): fuse to protect the circuit from the DC power supply. 3.- COM, 100 V: high impedance 100V line speaker output terminals.
  • Page 6 On request, It can be supplied with normal playback mode. On switching the amplifier on, the USB/MP3 player also switches on but playback does not start. The PLAY button must be pushed for it to start playing. It will play the content of the USB and it will stop. NOTE: the player memorizes the changes in playback mode when it is switched off.
  • Page 7: Specifications

    SPECIFICATIONS MA-35U CHARACTERISTICS P. A. amplifier. USB/MP3 player. Vehicle and desktop assembly. POWER 30 W maximum, 15 W RMS RESPONSE 50-15 000 Hz ±3 dB DISTORTION Harmonic: < 2% at 1 kHz INPUTS 2 unbalanced mics., 6.3 mm mono jack 600-20 000 Ω 5 mV 1 auxiliary, 6.3 mm mono jack 10-50 000 Ω...
  • Page 8 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
