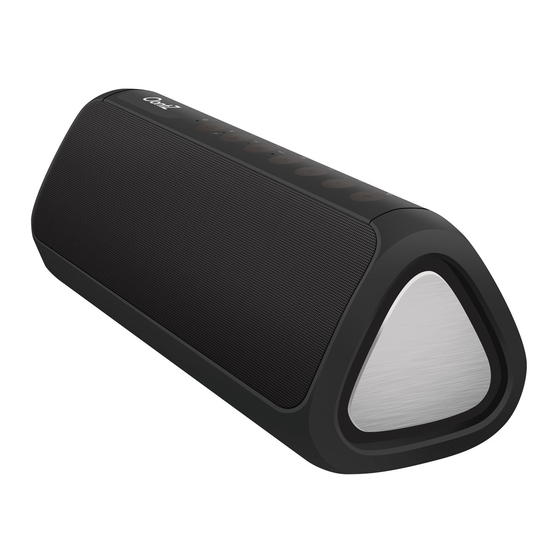

Oontz Angle 3XL ULTRA Quick Start Manual
Powerful & portable bluetooth speaker
Hide thumbs
Also See for OontZ Angle 3XL ULTRA:
- User manual (12 pages) ,
- Quick start manual (24 pages) ,
- User manual
Subscribe to Our Youtube Channel
Related Manuals for Oontz OontZ Angle 3XL ULTRA
Summary of Contents for Oontz OontZ Angle 3XL ULTRA

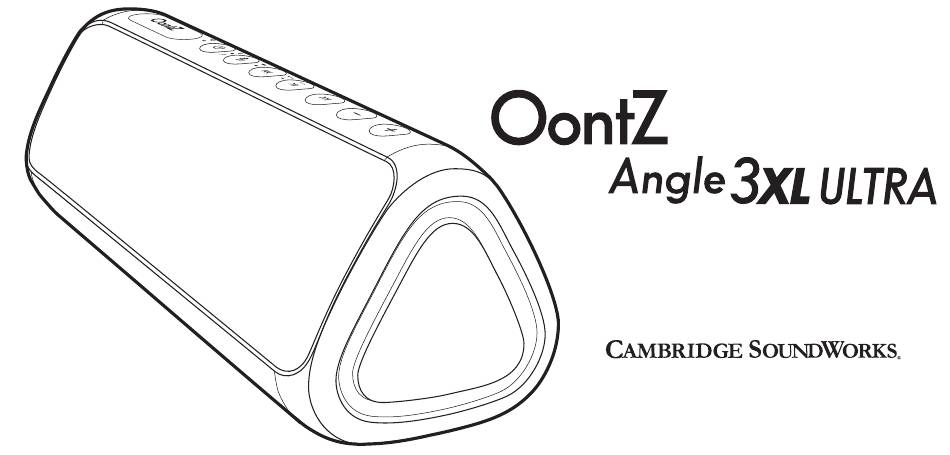

- Page 1 Quick Start Guide Powerful & Portable Bluetooth Speaker Designed and Engineered By TheOontZ.com...
- Page 2 In the Package Quick Start Guide 3.5mm Audio Cable Power Adapter (Dual Voltage)
-
Page 3: Table Of Contents
Pair & Connect with Your Device 8 - 11 To Play with Non-Bluetooth Audio Source Devices Use the 3.5mm Audio Cable OontZ Wireless Dual Stereo - Connect two OontZ Angle 3XL ULTRA Speakers Together 13 - 17 IPX5 Water Resistant Wireless Hands Free Personal Speakerphone Contacting Customer Support &... -
Page 4: The Oontz Angle 3Xl Ultra
The OontZ Angle 3XL ULTRA Three Passive Bass Radiators Two custom tweeters Two large precision drivers Page 1... -
Page 5: Buttons, Lights, And Connectors
Buttons - Top of Speaker Power Bluetooth Track Back Play/Pause Track Forward Volume Down Volume Up (Dual Function) - Press and Release to - Press and Release - Press and Release - Press to - Press to go to the beginning to Pause/Play to go to next track decrease volume... - Page 6 White Light lit when in when charging: when speaker is on: OontZ Wireless Dual Stereo: - With a second OontZ Angle 3XL ULTRA speaker (sold separately) - Slowly flashing Red - Flashing Blue you can wirelessly connect both speakers together to play with...
- Page 7 Smartphone or iPhone Voltage Power Adapter - See page 13 to learn about connectors, it is a snug fit charged while playing. OontZ Wireless Dual Stereo to provide water (5V/1A) resistance - To close raise the flap into position and gently press into place to seal Note: The connector flap needs to be closed to keep the speaker water resistant...
-
Page 8: Battery Features And Charging The Battery
Low Charge Remaining - With the power adapter connected to the speaker and plugged into a wall outlet, the OontZ Angle 3XL ULTRA will remain on - When the battery charge has less than 15% until you turn the power off. - Page 9 Charging the Battery To charge the OontZ Angle 3XL Red Light lit when charging: ULTRA battery: - Slowly flashing Red - Plug the connector end of the Power Adapter battery is charging into the Charging Jack. - Solid Red - Plug the Power Adapter into a wall outlet.
-
Page 10: Turning On And Off
(Will remain lit if the power adapter is plugged in) Blue Light will turn off Blue Light will turn on - Flashing Blue The speaker is in pairing mode - Solid Blue Your device has connected with the OontZ Angle 3XL ULTRA and is ready to play Page 7... - Page 11 - To disconnect the current device, press and hold down the Bluetooth button for 3 seconds. - The Blue Light will begin flashing and the OontZ Angle 3XL ULTRA is ready for the next device to pair and connect. *Exception: certain devices may not automatically reconnect.
-
Page 12: Pair & Connect With Your Device
- The Blue Light will turn solid blue and there will be a quiet chime a quiet chime - You can now play your audio wirelessly to your OontZ Angle 3XL ULTRA - You can now play your audio wirelessly to your... - Page 13 - Select the 'OontZ_Angle 3XL Uxxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available Speakers' - After a few seconds Alexa will announce: "Connected to OontZ Angle 3XL Uxxx" To connect the next time, turn on the OontZ Angle 3XL ULTRA and say "Alexa, connect my speaker" or "Alexa, pair" Page 10...
- Page 14 - or say "Alexa, disconnect my speaker" and the OontZ Angle 3XL ULTRA will automatically turn off after 30 minutes. - When you want to connect and play to the speaker again turn on the OontZ Angle 3XL ULTRA and say "Alexa, connect my speaker"...
-
Page 15: To Play With Non-Bluetooth Audio Source Devices Use The 3.5Mm Audio Cable
- You are now ready to play. Important: The Bluetooth on the OontZ Angle 3XL ULTRA is disabled when the 3.5mm audio cable is connected to the speaker. You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth device. -
Page 16: Oontz Wireless Dual Stereo - Connect Two Oontz Angle 3Xl Ultra Speakers Together
*Placing the speakers on the ground or having walls or obstructions between the speakers will significantly reduce the distance apart the two speakers can play together Second OontZ Angle 3XL ULTRA sold separately, available at TheOontZ.com Page 13... - Page 17 To set the speakers for Left Channel - Right Channel For stereo separation when both speakers are in the same area – On both OontZ Angle 3XL ULTRA speakers slide the OontZ Wireless Dual Stereo switch to the left position.
- Page 18 Connecting two OontZ Angle 3XL ULTRA Speakers together for OontZ Wireless Dual Stereo – Turn on both OontZ Angle 3XL ULTRA speakers. – Pair and Connect one of the speakers with your device. When connected the Blue Light will be lit solid.
- Page 19 Two OontZ Angle 3XL ULTRA Speakers connected for OontZ Wireless Dual Stereo Play Control Speaker Second Speaker Blue Light White Light Blue Light White Light lit solid lit solid lit solid – Use the buttons on the Play Control Speaker for play/pause, track back, track forward, answer and end phone calls.
- Page 20 Playing the audio from a video with OontZ Wireless Dual Stereo – To play the audio from a video or TV with OontZ Wireless Dual Stereo you will need to connect the Play Control Speaker to your device or TV using the 3.5mm audio cable in order for the audio and video to play in sync. If the Play Control Speaker is connected over Bluetooth to your device or TV there will be a delay in the audio playback from the video and they will not play in sync.
-
Page 21: Ipx5 Water Resistant
IPX5 rating - The OontZ Angle 3XL ULTRA can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet environment for an extended period of time, any of which could cause unrepairable damage to the speaker. -
Page 22: Wireless Hands Free Personal Speakerphone
- You can use your Smartphone or iPhone to switch between using Hands Free Speakerphone and your phone. - When two speakers are paired together in OontZ Wireless Dual Stereo, calls will come through the Play Control Speaker only. Use the Bluetooth button on the Play Control Speaker for the speakerphone functions. -
Page 23: Contacting Customer Support & Reset Function
Customer Support Team wants to assist you. Step 1 - IMPORTANT : Turn off the OontZ Angle 3XL ULTRA and unplug the power adapter from the speaker. Also remove the Please check for updates for your speaker at: 3.5mm Audio cable, if it is plugged in. -
Page 24: Safety And Precautions
Safety and Precautions When the power adapter is connected to the OontZ Angle 3XL ULTRA speaker and plugged in to a wall outlet, never use the speaker in the shower, bath, rain or near water, to prevent risk of electric shock. Always unplug the power adapter from the speaker and wall outlet before the speaker is placed near or exposed to water or rain.
