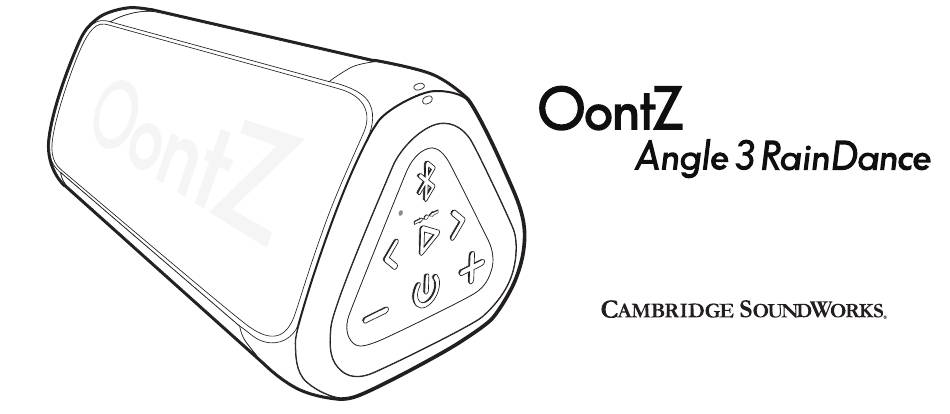

- Page 1 Quick Start Guide Portable Bluetooth Speaker Designed and Engineered By TheOontZ.com...
- Page 2 In the Package Quick-Start Guide Micro USB Charging Cable Lanyard Note: The cable and lanyard are packed below the cardboard insert in the box. Slide out the insert to locate them.
-
Page 3: Table Of Contents
5 - 7 Turning On and Off Pair & Connect with Your Device 9 - 12 OontZ Wireless Dual Stereo - Connect Two OontZ Angle 3 RainDance Speakers Together 13 - 17 IPX7 Water Resistance Talk to Siri Wireless Hands Free Personal Speakerphone To Play with Non-Bluetooth Devices Use a 3.5mm Stereo Audio Cable... -
Page 4: Buttons, Lights, Connectors And Built-In Mic
Buttons Play/Pause Bluetooth (Dual Function) Press and Release to Pause/Play Track Back Track Forward Press and Release to go to Press and Release to go the beginning of the track. to next track Press and Release twice to go to previous track Volume Down Volume Up Power... - Page 5 3.5mm audio cable is plugged into the AUX IN Jack OontZ Wireless Dual Stereo - With a second OontZ Angle 3 Red Light lit when charging: RainDance speaker (sold separately) - Slowly flashing Red...
- Page 6 Connectors & Built-in Mic Built-in Mic for Speakerphone AUX IN Jack Micro USB Charging Connector IMPORTANT: The rubber flap needs to be Rubber Flap closed before the speaker is - covers connectors exposed to water. - pull gently from the top to access The speaker is not water- connectors, it is a snug fit as part resistant or waterproof when...
-
Page 7: Attaching The Lanyard
Attaching the Lanyard - Slide the smaller lanyard - Slide the larger lanyard loop - Pull the larger lanyard loop loop through one of the through the smaller lanyard loop completely through the lanyard attachment holes at that has passed though the other smaller lanyard loop to fasten the top of the speaker attachment hole... -
Page 8: Battery Features And Charging The Battery
- For maximum playtime, fully charge the battery. - You can play while charging. Power Saving Feature - When playing from battery power the OontZ Angle 3 RainDance will turn off after 30 minutes of not playing audio to conserve the battery charge. * Low Charge Remaining... - Page 9 Charging the Battery - Insert the small end of the Micro USB Charging Cable into the Charging Connector as shown. - Insert the larger end of the Micro USB Charging cable into a USB wall Red Light lit charger for a Smartphone or iPhone, or a USB port on your when charging: laptop/computer to charge the...
- Page 10 (USB wall charger* that is 5V 1.0A up to 5V 2.4A maximum), or a USB port on your laptop/computer to charge the * Only use a USB wall charger that is UL Listed OontZ Angle 3 RainDance battery. Page 7...
-
Page 11: Turning On And Off
- Flashing Blue The speaker is in pairing mode - Solid Blue Your device has connected with the OontZ Angle 3 RainDance and is ready to play Red Light will turn on for 3 seconds Turn OFF Press and Hold Down the Power Button for 2 Seconds Blue Light will turn off... - Page 12 - To disconnect the current device, press and hold down the Bluetooth button for 5 seconds. - The Blue Light will begin flashing and the OontZ Angle 3 RainDance is ready for the next device to pair and connect. *Exception: certain devices may not automatically reconnect.
-
Page 13: Pair & Connect With Your Device
- The Blue Light will turn solid blue and there will be a quiet chime a quiet chime - You can now play your audio wirelessly to your - You can now play your audio wirelessly to your OontZ Angle 3 OontZ Angle 3 RainDance RainDance Note: Your Smartphone or Tablet instructions may vary Important - The volume control on your device and the speaker work independently of each other. - Page 14 - Select the 'OontZ_Angle 3 RainDance xxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available Speakers' - Alexa will announce: "Connected to OontZ_Angle 3 RainDance xxx" To connect the next time, turn on the OontZ Angle 3 RainDance and say "Alexa, connect my speaker" or "Alexa, pair" Page 11...
- Page 15 - or say "Alexa, disconnect my speaker" and the OontZ Angle 3 RainDance will automatically turn off after 30 minutes. - When you want to connect and play to the speaker again turn on the OontZ Angle 3 RainDance and say "Alexa, connect my speaker"...
-
Page 16: Oontz Wireless Dual Stereo - Connect Two Oontz Angle 3 Raindance Speakers Together
OontZ Wireless Dual Stereo - Connect two OontZ Angle 3 RainDance speakers together Play your music wirelessly through both speakers up to 100 feet apart Bluetooth Left Channel - Right Channel for playing music for stereo separation Audio Cable for playing the... - Page 17 Connecting two OontZ Angle 3 RainDance Speakers together for Left Channel - Right Channel – Turn on both OontZ Angle 3 RainDance speakers. – Pair and Connect one of the speakers with your device. When connected the Blue Light will be lit solid.
- Page 18 Two OontZ Angle 3 RainDance Speakers connected for Left Channel - Right Channel Blue Light lit solid Blue Light OFF White Light lit solid White Light lit solid Second Speaker Play Control Speaker – Use the buttons on the Play Control Speaker for play/pause, track back, track forward, answer and end phone calls.
- Page 19 Changing to Dual Stereo from Left Channel - Right Channel Use Dual Stereo when placing the two speakers in different areas, and both speakers will play in full stereo. – To set both speakers for Dual Stereo they must first be connected together for Left Channel - Right Channel (see page 14). –...
- Page 20 Playing the audio from a video in OontZ Wireless Dual Stereo –To play the audio from a video or TV in OontZ Wireless Dual Stereo you will need to connect the Play Control Speaker to your device or TV using a 3.5mm audio cable, allowing the audio and video to play in sync with each other. If the Play Control Speaker is connected over Bluetooth to your device or TV there will be a delay in the audio playback from a video.
-
Page 21: Ipx7 Water Resistance
A little rain or a lot of rain is fine for the OontZ Angle 3 RainDance IPX7 means the OontZ Angle 3 is WaterProof and can handle water spray from the shower or being splashed and can handle being partially or fully submerged in water up to a maximum of 3 feet deep, for up to a maximum of 30 minutes The rubber flap needs to be closed to keep the speaker waterproof and dustproof. -
Page 22: Talk To Siri
Bluetooth. To answer an Incoming Call / To End a Call To talk to Siri through the OontZ Angle 3 RainDance - Press and Release the Bluetooth Button To Reject an Incoming Call... -
Page 23: To Play With Non-Bluetooth Devices Use A 3.5Mm Stereo Audio Cable
- You are now ready to play. Important: The Bluetooth on the OontZ Angle 3 RainDance is disabled when a 3.5mm stereo audio cable is connected to the speaker. You need to remove the 3.5mm stereo audio cable from the speaker in order to connect to a Bluetooth device. -
Page 24: Reset Function
Reset Function Step 1: Remove the Micro USB charging cable and 3.5mm Audio cable, if connected. Step 2: Press and hold down the Power button for 8 seconds, then release. Step 3: The speaker has now been reset and you can turn it on. Page 21... -
Page 25: Contacting Customer Support
Customer Support If you have a question about your OontZ Angle 3 RainDance or experience an issue with the speaker, our Customer Support Team wants to assist you. For online troubleshooting tips please visit: TheOontZ.com/troubleshooting and select the OontZ Angle 3 RainDance Contact us at: TheOontZ.com/support... -
Page 26: Safety And Precautions
Safety and Precautions When the OontZ Angle 3 RainDance speaker is plugged in to a charging source with the Micro USB charging cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock. - Page 27 Safety and Precautions (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 28 OontZ Angle 3 RainDance Carry Case Sold separately • Lightweight neoprene rubber with reinforced zipper • Includes a durable aluminum carabiner for easily attaching to backpacks, luggage, laptop bags, coolers, camera bags, purses, belts, and other clippable items Available at TheOontZ.com...
